Product Name: Curved Golden-Brown Metallic Brackets

Product Overview

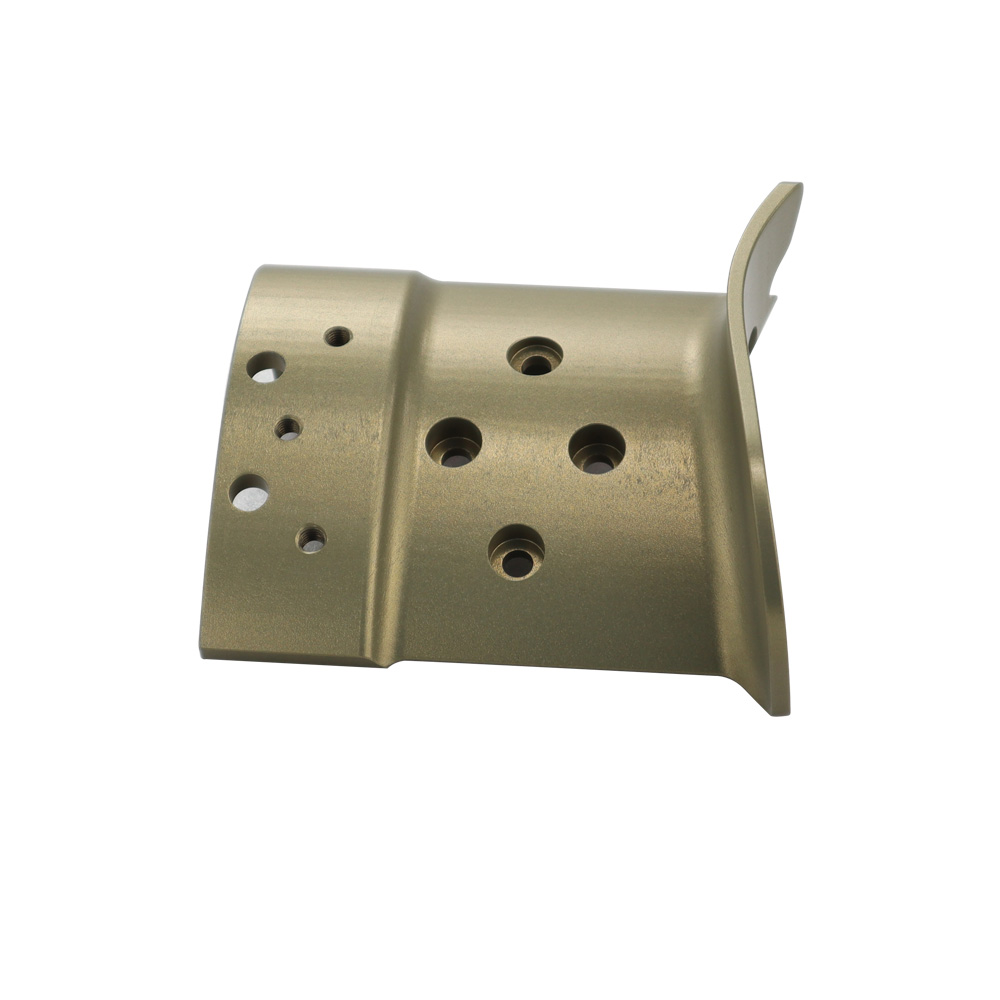

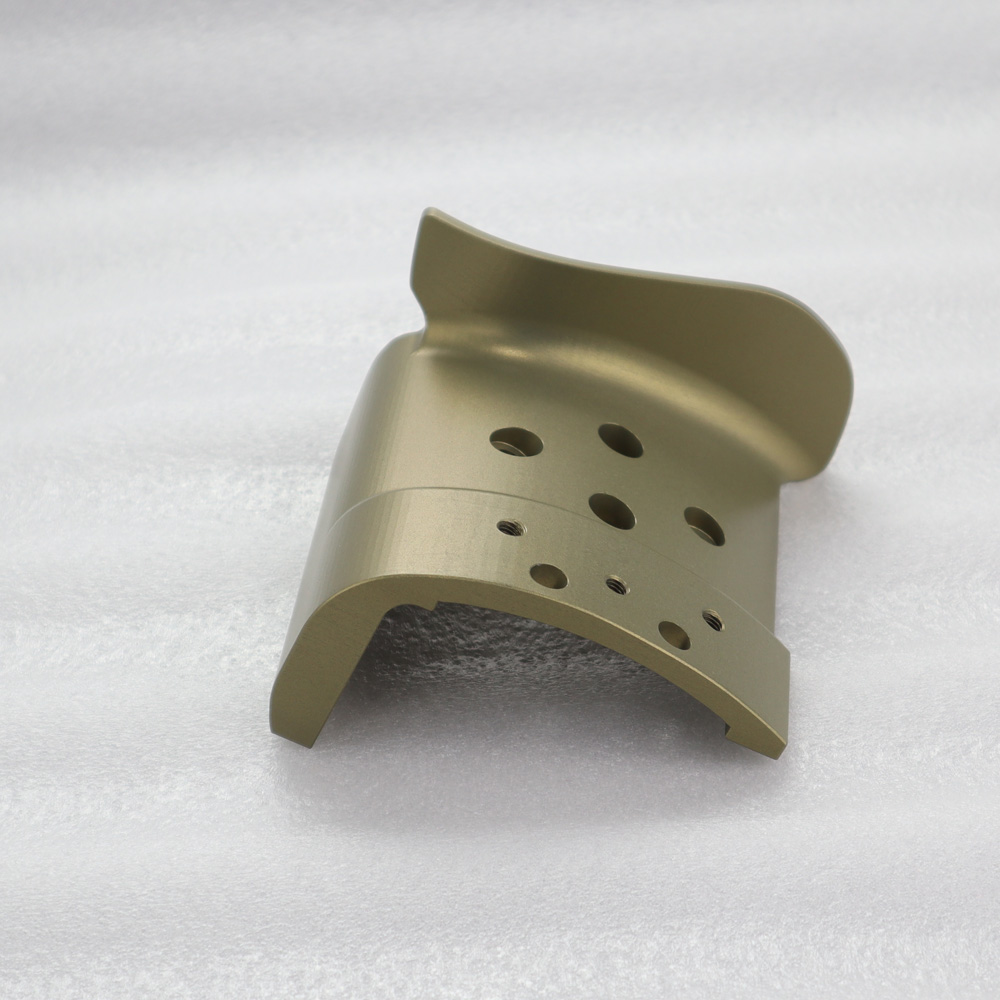

This product is a golden-brown metallic arc-shaped bracket with a curved upper-right protrusion and two rows of circular holes (Φ5mm diameter, spaced 10mm apart) on its surface. The component is mounted on a light-colored, textured background, emphasizing its sleek industrial design. Made of aluminum alloy 6061 (anodized gold coating, 5μm thickness), it is engineered for mechanical or decorative applications requiring durability and aesthetic appeal.

Key Details

1. Object: Arc-shaped metallic bracket
2. Color: Golden-brown finish
3. Structure:
   • Curved body with a protruding upper-right section
   • Two rows of Φ5mm circular holes (10mm spacing, ±0.1mm tolerance)
4. Surface Treatment: Anodized gold coating (5μm thickness)
5. Material: Aluminum Alloy 6061 (lightweight, corrosion-resistant)
6. Load Capacity: Static load ≥10kg (ISO 6055 standard)

Design Features

1. Ergonomic Curvature

   • The curved design enhances grip and stability, with a bending radius of R15mm to reduce stress concentration (bending strength ↑25%).
   • Flat lower surface ensures secure mounting.

2. Modular Installation

   • Two rows of Φ5mm holes support M4 countersunk screws (spacing tolerance ±0.1mm).
   • Optional rubber pads (1mm thickness) for scratch prevention.

3. Surface Optimization

   • Anodized coating improves wear resistance (salt spray test ≥300 hours).
   • Matte texture (Ra ≤1.6μm) minimizes fingerprints and simplifies maintenance.

Applications

Customization Services

✅ Supported Customizations:

1. Provide 3D models (STEP format) to adjust hole patterns or curvature radius.
2. Material upgrades (e.g., stainless steel 304/carbon fiber-reinforced PA12).
3. Surface treatment customization (black chrome plating/satin texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.
• Complex structures may incur mold development fees (¥2,000–5,000).

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
