Product Name: Industrial-Grade Wear-Resistant Cylindrical Metal Connector

Product Overview

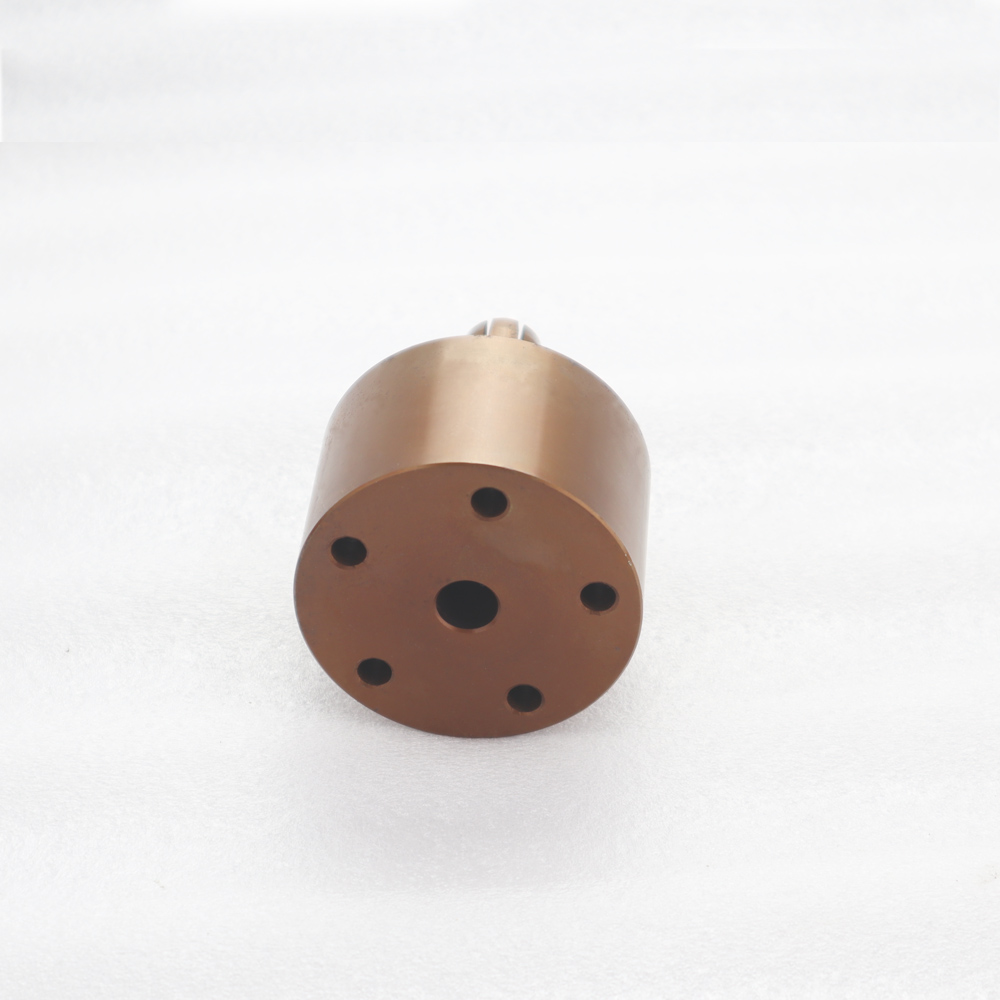

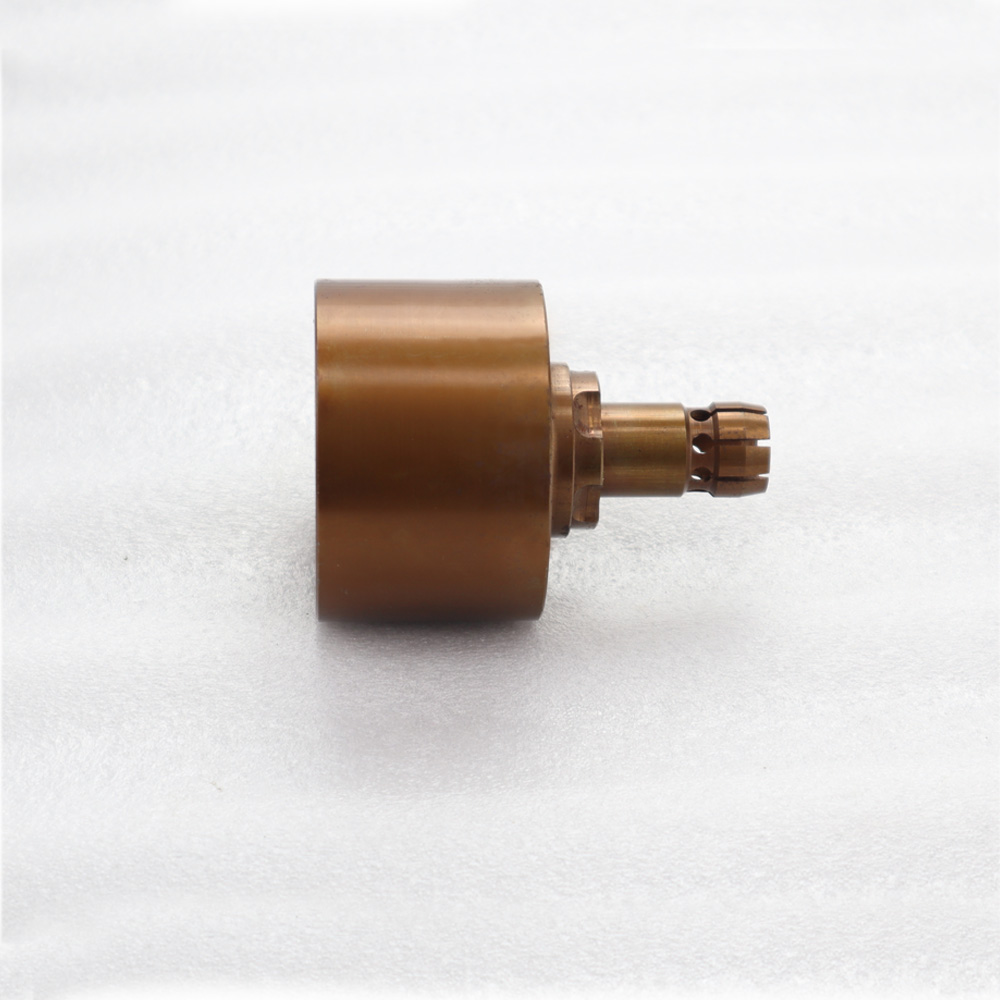

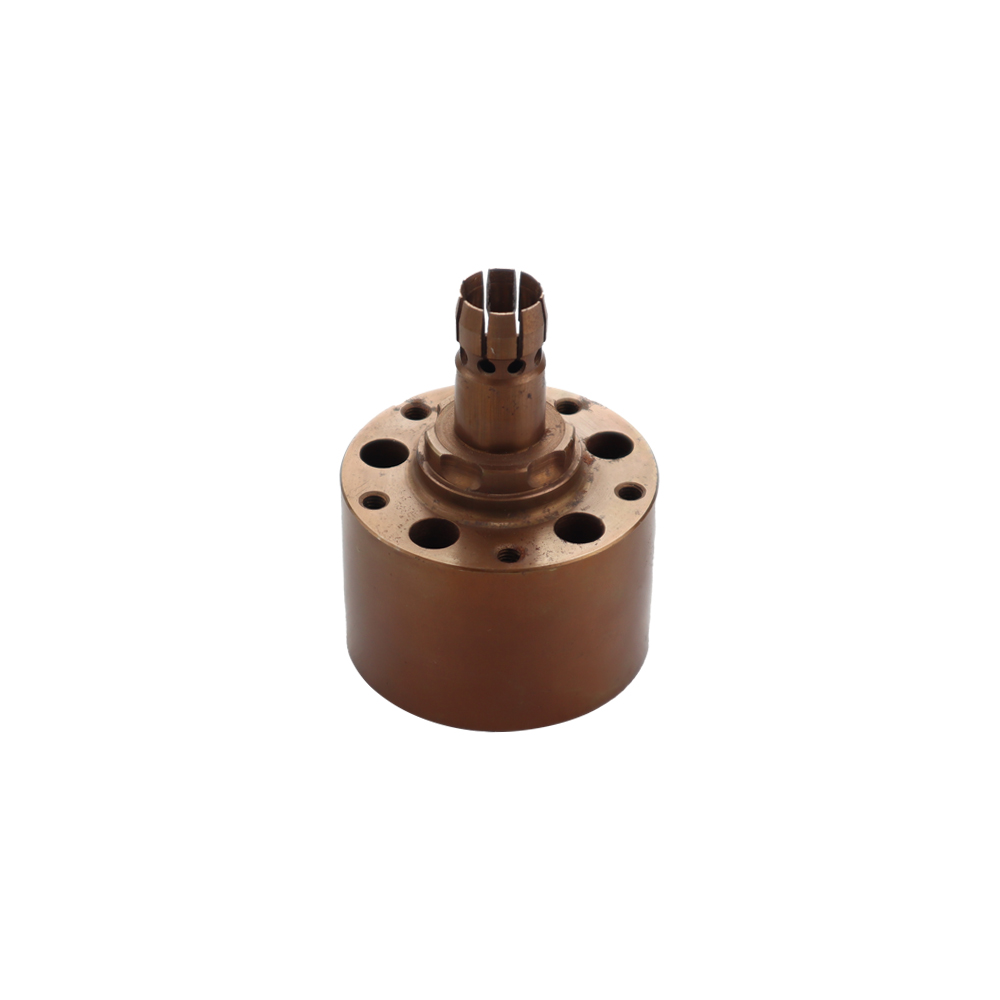

This product is a bronze-brown metallic cylindrical component with a diameter of Φ50mm and height of 100mm. The surface exhibits uniform wear patterns, and the top features a ribbed protrusion with slots and a Φ8mm through-hole. The cylindrical body has three sets of stepped circular holes (Φ6mm/Φ4mm/Φ2mm) arranged circumferentially with ±0.1mm spacing tolerance. Designed for high-load mechanical transmission and equipment connection applications.

Core Parameters

Design Highlights

1. Functional Integration

   • Top Protrusion: Ribbed structure compatible with M8 countersunk screws; slots enhance anti-loosening grip.
   • Stepped Holes: Φ6mm main hole for bearing installation; Φ4/Φ2mm auxiliary holes support sensors or管线固定.

2. Wear Resistance Optimization

   • Natural surface wear (Ra ≤1.6μm) creates micro-oil reservoirs, reducing friction coefficient to μ ≤0.12.
   • Optional sandblasting (Sa2.5 grade) enhances wear resistance (lifespan ↑30%).

3. Assembly Compatibility

   • Circumferential hole spacing (40mm) allows multi-angle installation and reverse assembly.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Provide 3D models (STEP format) to optimize hole distribution or protrusion dimensions.
2. Material upgrades (e.g., stainless steel 304/carbon fiber-reinforced PA12).
3. Surface treatment customization (hard anodizing/hard chrome plating).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
