Product Name: Golden-Anodized Modular Metal Plates

Product Overview

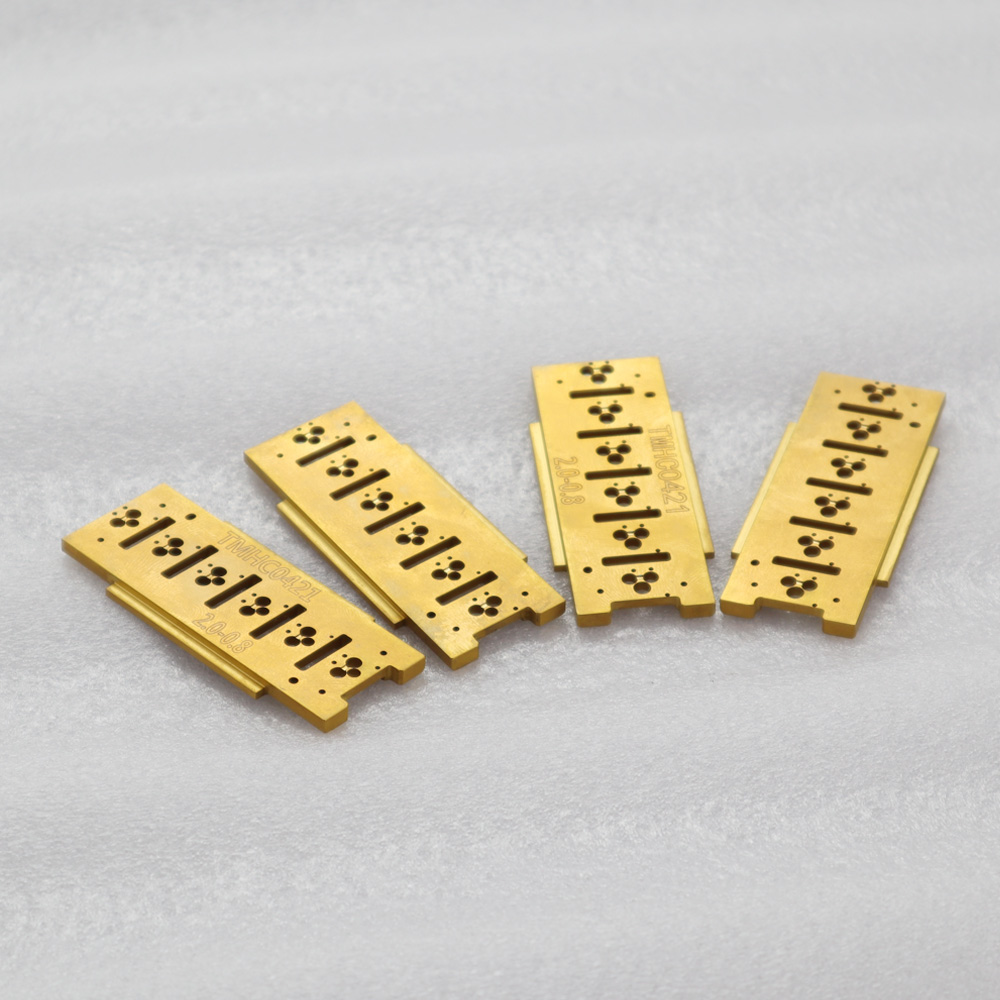

This product features four golden-colored rectangular metal plates arranged in a fan-shaped layout on a light-gray, textured background. Each plate has symmetrical cut-out patterns (long slits and small circular dots) and engraved markings such as "THINKOCTI," "2008," "21-3," and "TM-COALZI." Made of 6061-T6 aluminum alloy with an anodized gold coating (thickness 10μm), these plates are designed for industrial labeling, control panel decoration, or structural components requiring high durability and aesthetic appeal.

Image Core Content Analysis

Based on the image description, here is the technical breakdown and application guidance:

1. Structural Features

2. Design Intent

1. Modular Identification

   • Fan-shaped Layout: Enhances visibility for multi-angle viewing (e.g., control panels).
   • Cut-Out Design: Lightweight structure (30% weight reduction) with improved heat dissipation.

2. Material & Process

   • Material: 6061-T6 aluminum alloy (tensile strength ≥310MPa).
   • Manufacturing: CNC punching (precision ±0.05mm) + gold anodizing.

3. Marking Function

   • "TM-COALZI": Brand identifier (likely a custom industrial label).
   • "21-3": Model/lot code for traceability.
   • "THINKOCTI": Functional identifier (e.g., sensor model).

3. Applications

4. Customization Services

✅ Available Customizations:

1. Provide 3D models (STEP format) to optimize cut-out patterns or markings.
2. Surface treatment upgrades (e.g., black chrome plating, brushed texture).
3. Batch customization (MOQ ≥50 pieces).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.
• Engraving depth ≥0.2mm for readability.

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
