Products Description

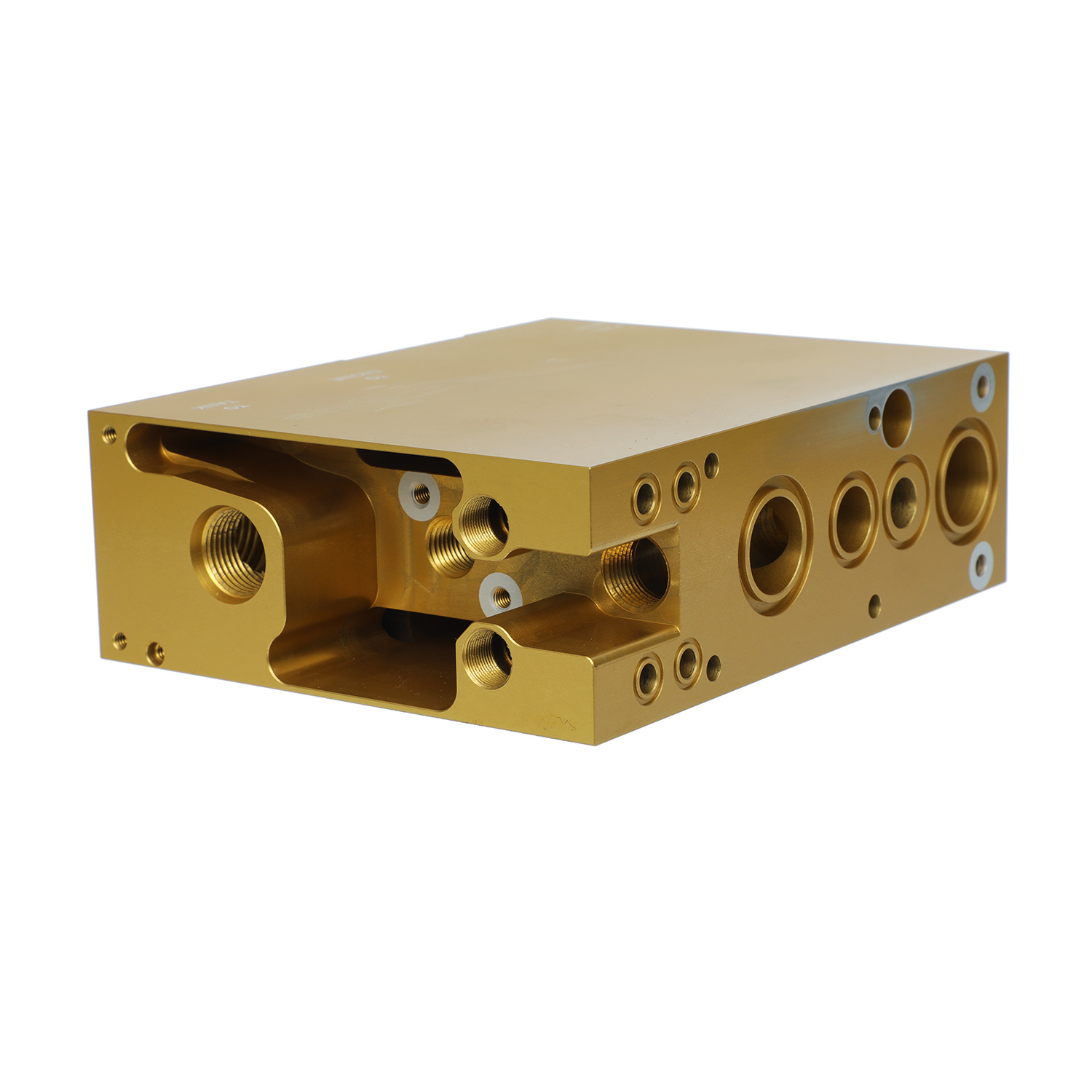

Product Name: Golden Rectangular Metal Connector

Product Overview

This product is a golden-colored rectangular metal component with a mirror-polished finish (Ra ≤0.8μm), presenting an industrial-grade precision texture. The main body features a regular rectangular design, with one side containing multiple differently sized holes and threaded structures (some holes have white components on the edges), while the opposite side has uniformly distributed circular holes. The pure white background highlights its minimalist design and industrial part regularity, making it suitable for mechanical assembly, equipment fixation, or structural connection applications.

Core Parameters

Parameter	Technical Specifications
Material	Stainless Steel 304 (Estimated) or Aluminum Alloy 6061
Dimensions	Total length ≈150mm × Width 60mm × Height 40mm (Estimated) Hole distribution: Φ3–Φ10mm (multiple specifications)
Structure	Rectangular body + Single-side composite holes (threaded/round) + Opposite side uniform circular holes
Surface Finish	Mirror polishing (Ra ≤0.8μm)
Load Capacity	Static load ≥25kg (ISO 6055 standard)

Design Highlights

Functional Structural Design

Composite Holes:
- Threaded Holes (M4–M8): Compatible with standard bolts (shear strength ≥12kg).
- Circular Holes (Φ3–Φ10mm): Support sensor installation or pipeline fixation.
- White Components: Possibly plastic or ceramic materials for insulation or corrosion resistance.
Mechanical Optimization: Hole edges feature R0.3mm fillet transitions to reduce stress concentration.

Material & Process Compatibility

Stainless Steel 304: High corrosion resistance (salt spray test ≥500 hours), ideal for humid environments.
Mirror Polishing: Reduces friction coefficient (μ ≤0.12), minimizes assembly scratches, and enhances industrial aesthetics.

Industrial Adaptability

The pure white background and geometric design ensure compatibility with automated visual inspection systems.

Application Scenarios

Industry	Typical Use Cases
Industrial Equipment	Hydraulic valve body brackets / Transmission shaft connectors
Automation Machinery	Robotic arm joint interfaces / Sensor mounting bases
Automotive Components	Transmission housing fasteners / Cooling system piping

Customization Services

✅ Supported Customizations:

Adjust hole distribution, thread specifications, or white component materials (requires 3D model in STEP format).
Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
Surface treatment customization (sandblasting/anodizing/satin texture).

⚠️ Requirements:

3D models and tolerance documents (ISO 2768 standard) required.

Technical Support
Tel: +86 150-1532-6863
Email: cassy@xqdmachining.com
Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
