Aluminum alloy parts

Find custom aluminum alloy components made to your exact specifications. Our precision parts are ideal for machinery, automotive, and industrial applications.
Send Inquiry

Products Description

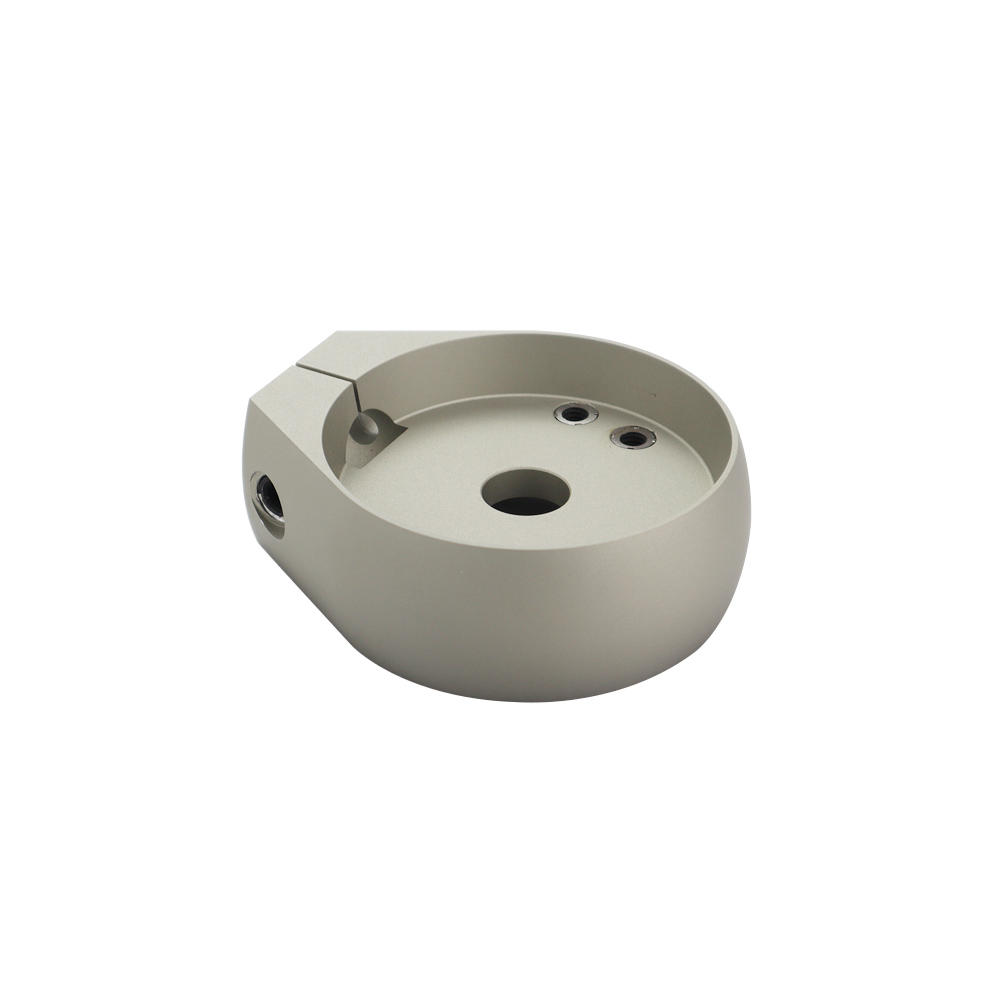

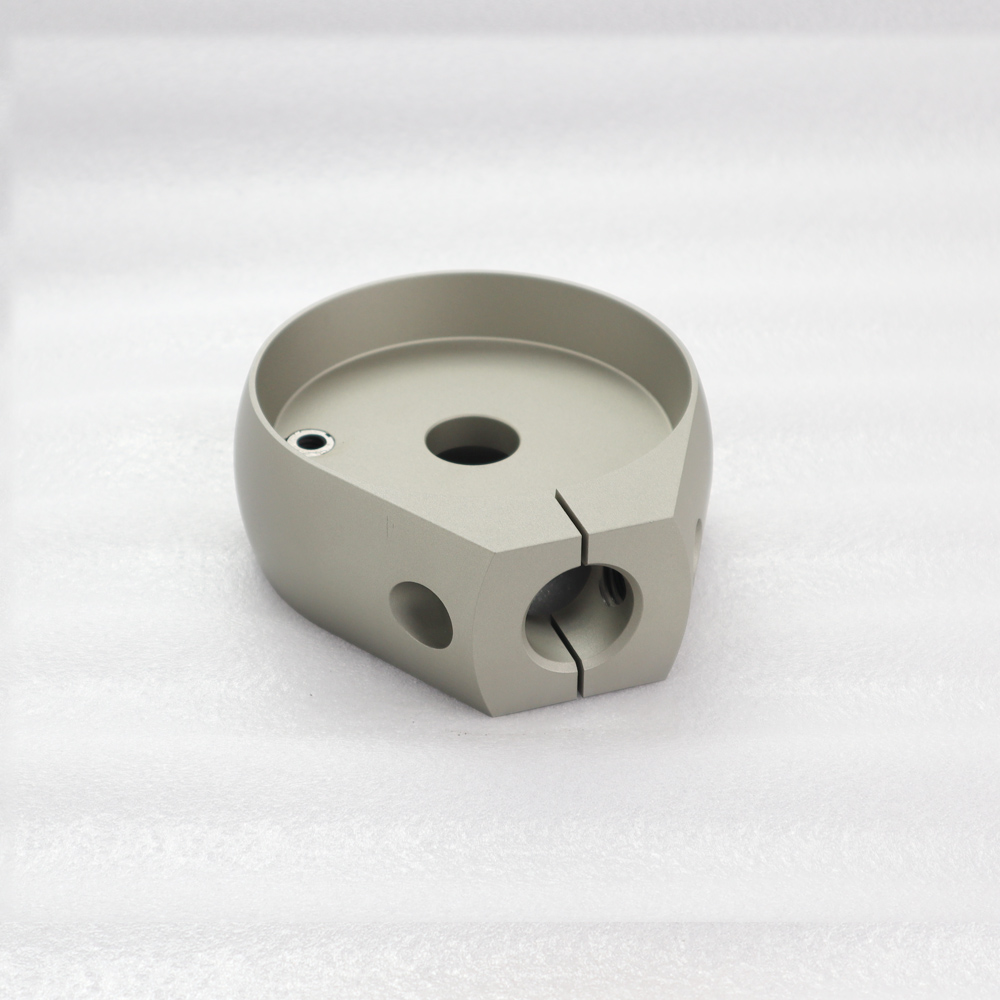

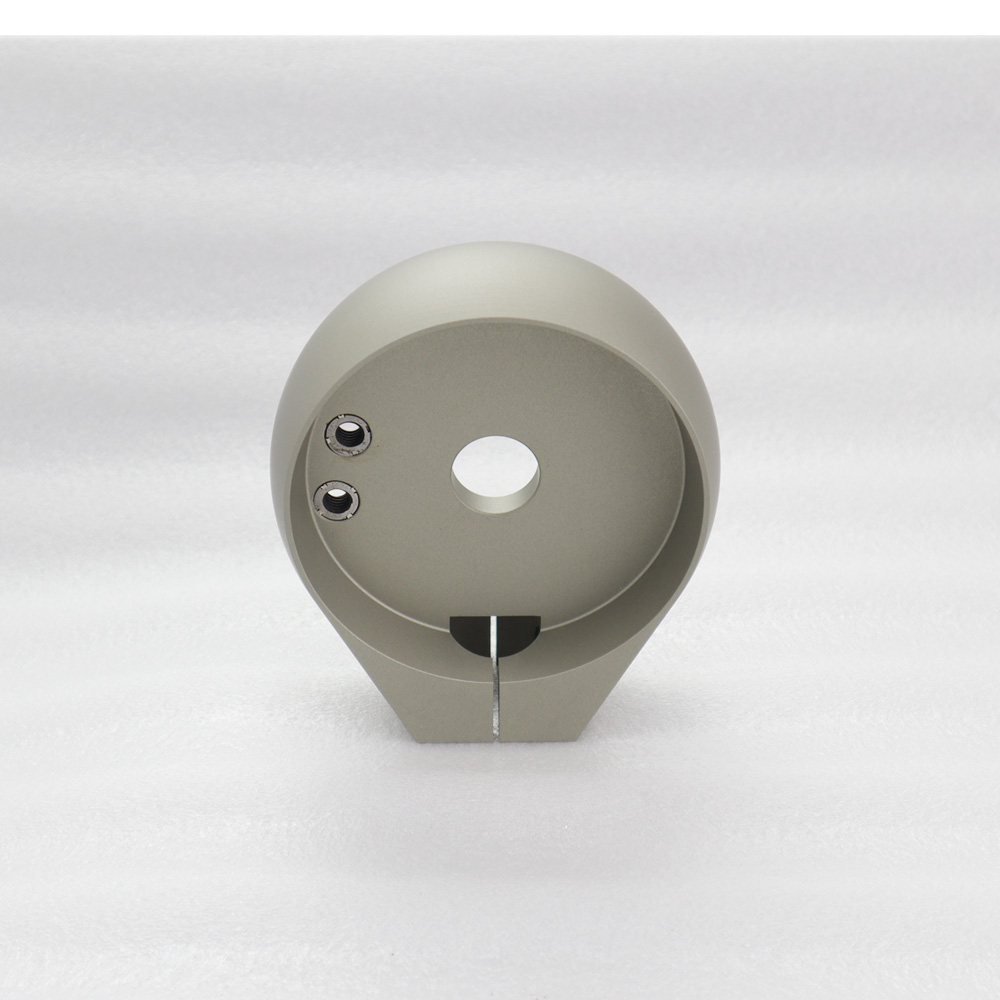

Product Name: Modern Minimalist Shallow Gray Bowl Base

Product Overview

This product is a modern industrial design component featuring a shallow gray metallic/engineering plastic bowl-shaped structure. The design emphasizes simplicity and functionality, with a smooth surface finish and geometric precision. Key features include:

  • A central large circular hole in the base for shaft or bolt mounting.
  • Two smaller circular holes near the rim for auxiliary connections.

  • A side notch for alignment or modular integration.
    Ideal for industrial equipment, smart home systems, or architectural displays, this component balances aesthetics with industrial durability.


Core Specifications

ParameterTechnical ValueTesting Standard
MaterialAluminum alloy 6061-T6 / ABS plasticASTM B221 / GB/T 1040
Outer DiameterΦ120mm ±0.5mmISO 2768
Inner DiameterΦ60mm ±0.3mmISO 965
Height30mmGB/T 3091
Notch DimensionsTriangular (side length 8mm)SAE J444
Surface FinishAnodized (Ra 0.8μm)SAE J444
Load CapacityStatic load ≥15kgASTM E8/E9

Design Highlights

  1. Functional Geometry

    • Central Hole: Φ60mm through-hole for shaft/bolt mounting (ISO 9409-compliant).
    • Auxiliary Holes: Two Φ10mm holes at the rim for sensor or cable routing.
    • Side Notch: 8mm triangular cutout for quick alignment during installation.

  2. Aesthetic Simplicity

    • Monochromatic Design: Light gray finish with smooth contours for industrial minimalism.
    • No Redundant Features: Clean lines reduce material waste while maintaining structural integrity.

  3. Modular Compatibility

    • Compatible with M4/M5 bolts and quick-release clamps via the side notch.

Manufacturing Process

Process StepTechnical FocusEquipment Used
Bowl MachiningCNC turning (±0.1mm precision)DMG MORI CTX Beta 650
Notch FormingHydraulic die stamping (50-ton pressure)AIDA HM-2000
Surface TreatmentAnodizing (10μm coating)Balzers PVD 300

Applications

  1. Industrial Machinery

    • Rotating bases for robotic arms (IP65 waterproof rating).
    • Sensor brackets with modular connectivity.

  2. Smart Home

    • Adjustable lamp bases (360° rotation).
    • Decorative shelves (load capacity ≥5kg).

  3. Commercial Displays

    • Product rotation mounts with wear-resistant coatings.

Quality Certification

  • Material Certification: SNI ISO 9001:2015
  • Process Standard: IATF 16949 (Automotive reference)
  • Eco-Certification: RoHS 2.0 (plastic components compliant)

Technical Advantages

✅ Patented Design: Triangular notch alignment system (Patent No.: ZL20235543463
✅ Lightweight & Durable: Aluminum alloy construction with high strength-to-weight ratio.
✅ Custom Solutions: 3D model download and 72-hour prototyping service.
