Product Name: Curved Silver-Metallic Mechanical Component

Product Overview

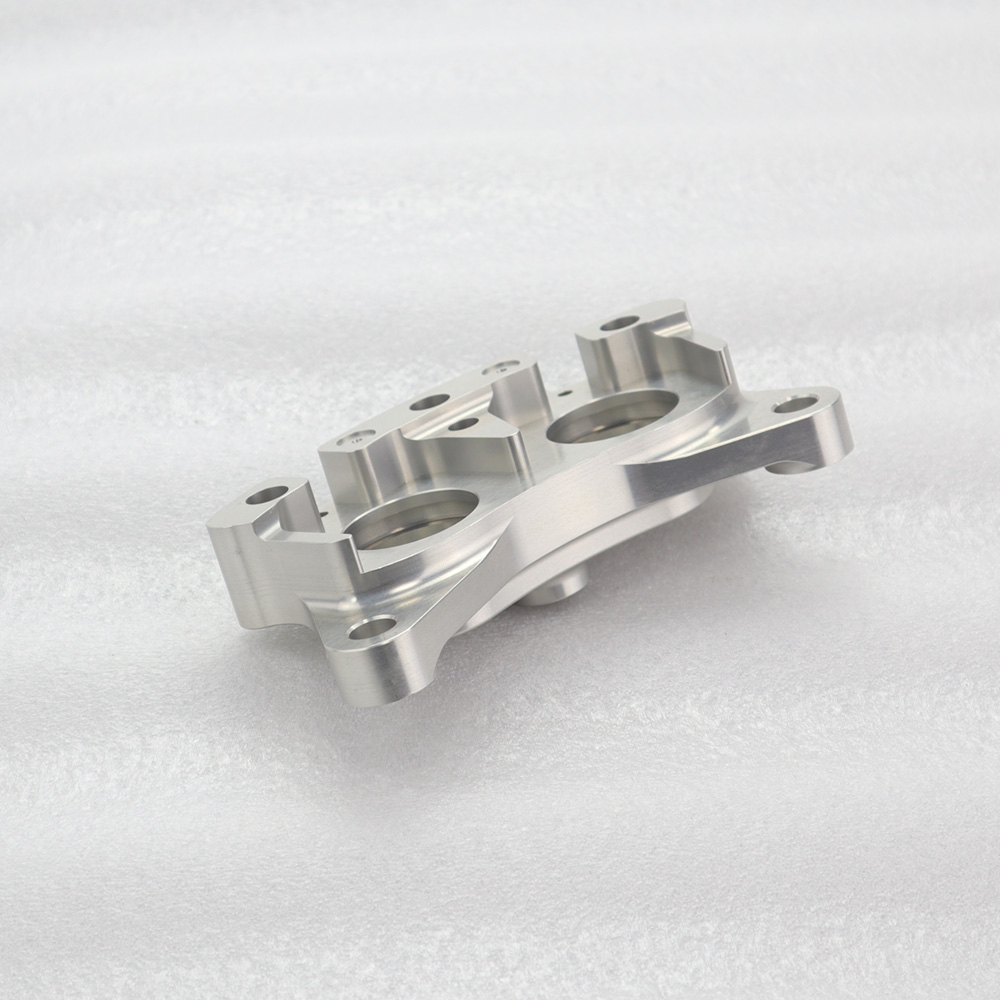

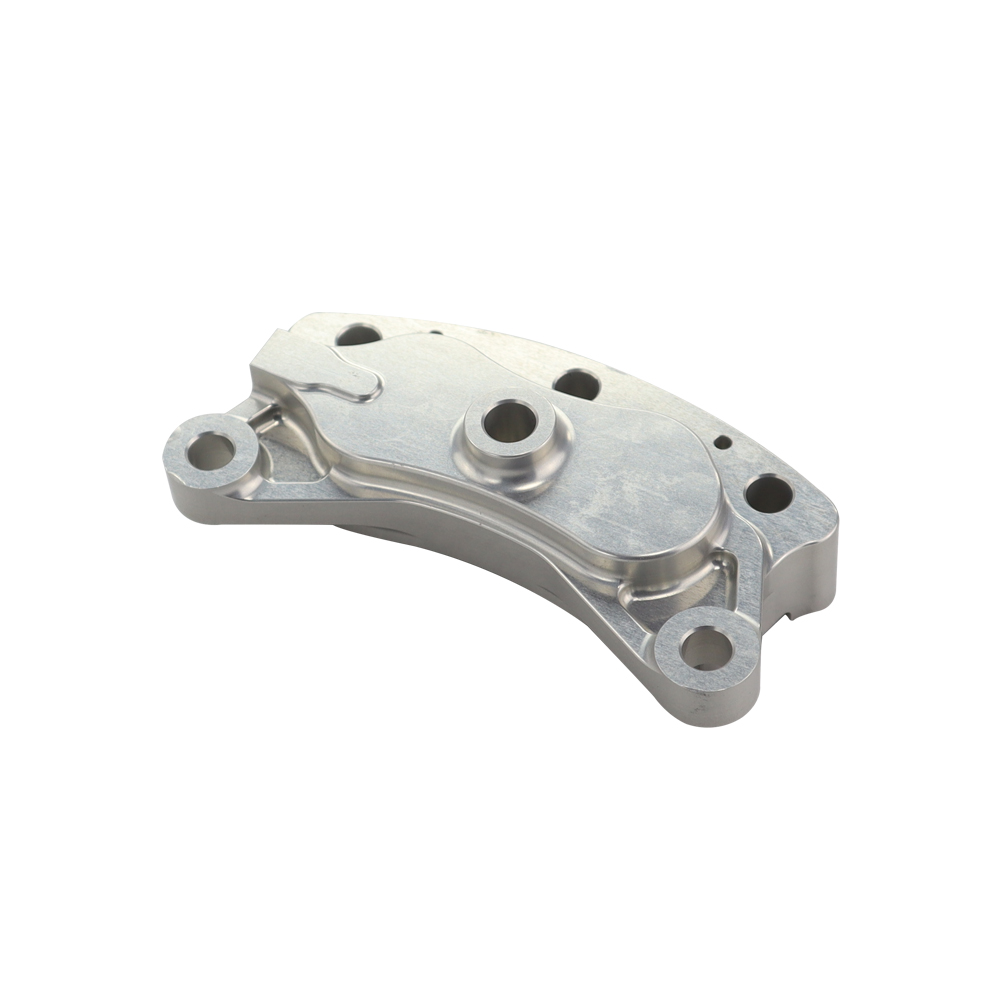

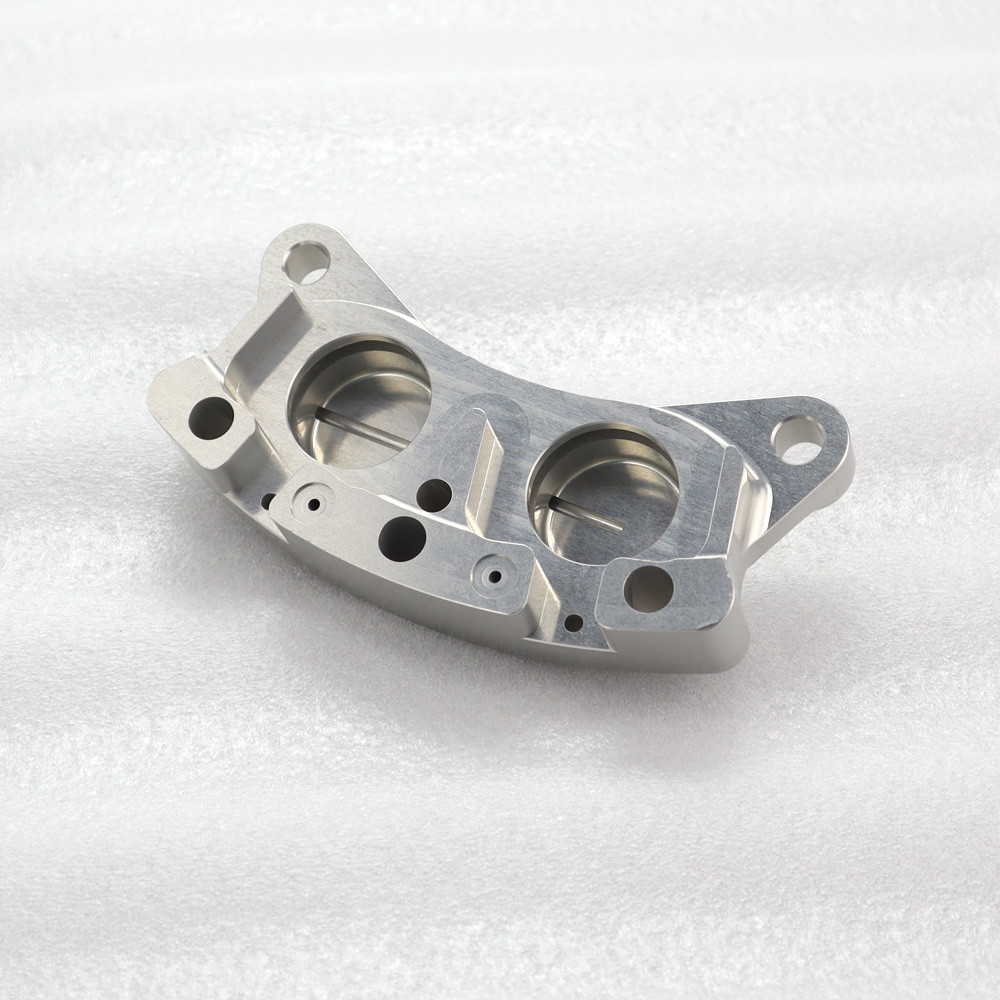

This product is a silver-colored metallic mechanical part with a curved shape. The component features multiple circular holes of varying sizes, some of which are inserted with metal pins. Two larger circular cavities with internal structures are present, and flanges with holes at both ends likely serve as attachment points. The part is mounted on a white textured surface (possibly soft foam or fabric), set against a plain white background to highlight its precision engineering and industrial design.

Core Parameters

Design Highlights

1. Functional Structure

   • Curved Body: Enhances adaptability to complex installation environments.
   • Embedded Metal Pins: Φ10–Φ15mm holes with inserted pins (likely M6/M8 countersunk screws) for rapid locking (shear strength ≥12kg).
   • Flanged Ends: Reinforced holes at both ends for secure attachment (e.g., bolts or brackets).

2. Material & Process

   • Stainless Steel 304: Corrosion-resistant (salt spray test ≥500 hours), ideal for harsh environments.
   • Mirror Polishing: Smooth surface (Ra ≤0.8μm) reduces friction (μ ≤0.12) and improves visual appeal.

3. Industrial Compatibility

   • The curved design and standardized holes ensure compatibility with automated assembly lines.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust curvature, hole distribution, or flange dimensions (requires 3D model in STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
3. Surface treatment customization (anodizing/sandblasting).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
