Product Name: Cross-Shaped Metal Pipe Joint

Product Overview

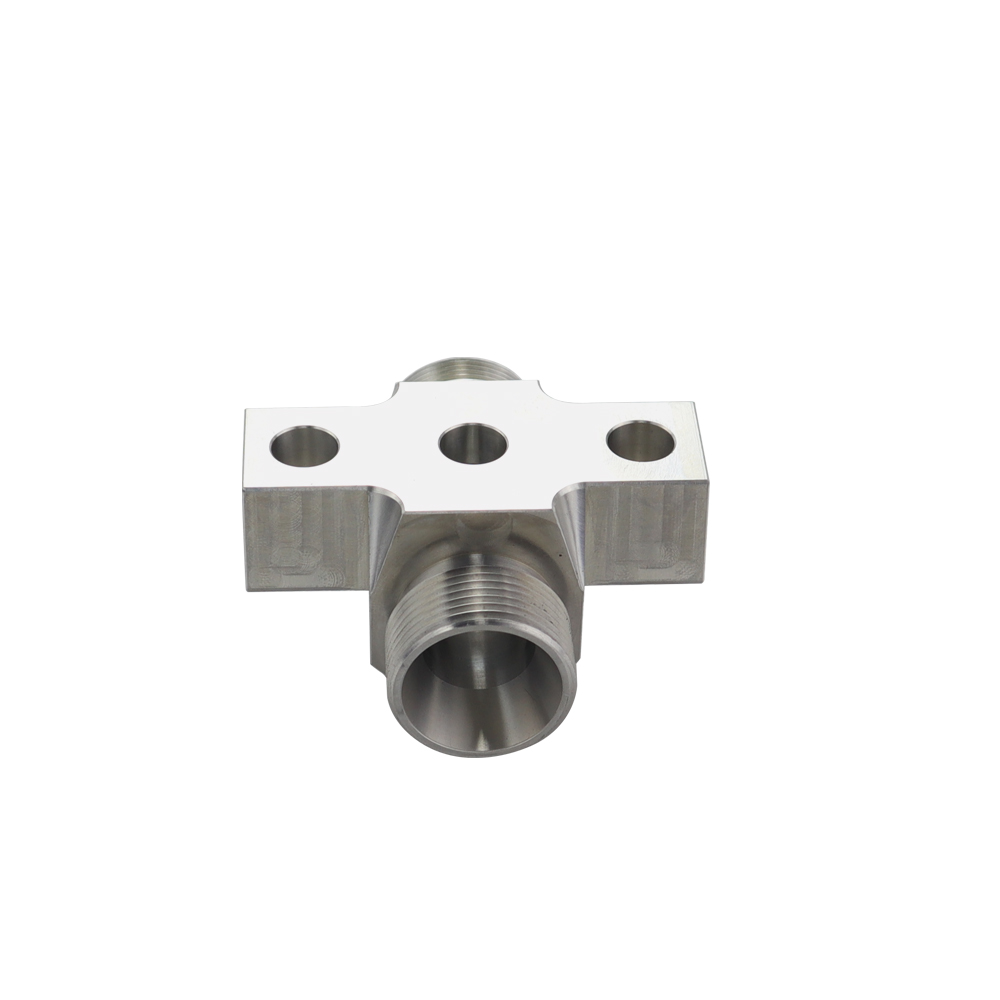

This product is a silver metallic cross-shaped pipe joint made of polished stainless steel or aluminum alloy. The joint features three evenly spaced circular holes (Φ8–Φ12mm) on the upper crossbar for connecting multiple components, while the lower vertical section has a threaded cylindrical interface (M6–M8) for screw connections. The smooth, mirror-polished surface (Ra ≤0.8μm) highlights its industrial design, and the minimalist structure emphasizes functionality for pipeline or mechanical assembly applications.

Core Parameters

Design Highlights

1. Functional Structure

   • Crossbar Holes: Three Φ8–Φ12mm holes arranged symmetrically for multi-directional pipe/rod connections.
   • Threaded Interface: M6–M8 threaded cylindrical section (length 20mm) for secure screw fastening.

2. Material & Process

   • Stainless Steel 304: Corrosion-resistant (salt spray test ≥500 hours) and durable for harsh environments.
   • Mirror Polishing: Smooth surface (Ra ≤0.8μm) reduces friction and enhances visual appeal.

3. Mechanical Optimization

   • Reinforced crossbar edges (R0.3mm fillet) to prevent stress concentration and extend service life.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust hole spacing, thread specifications, or crossbar dimensions (requires 3D model in STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-pressure applications).
3. Surface treatment customization (powder coating/anodizing).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
