Product Name: Small Rectangular Metal Component

Product Overview

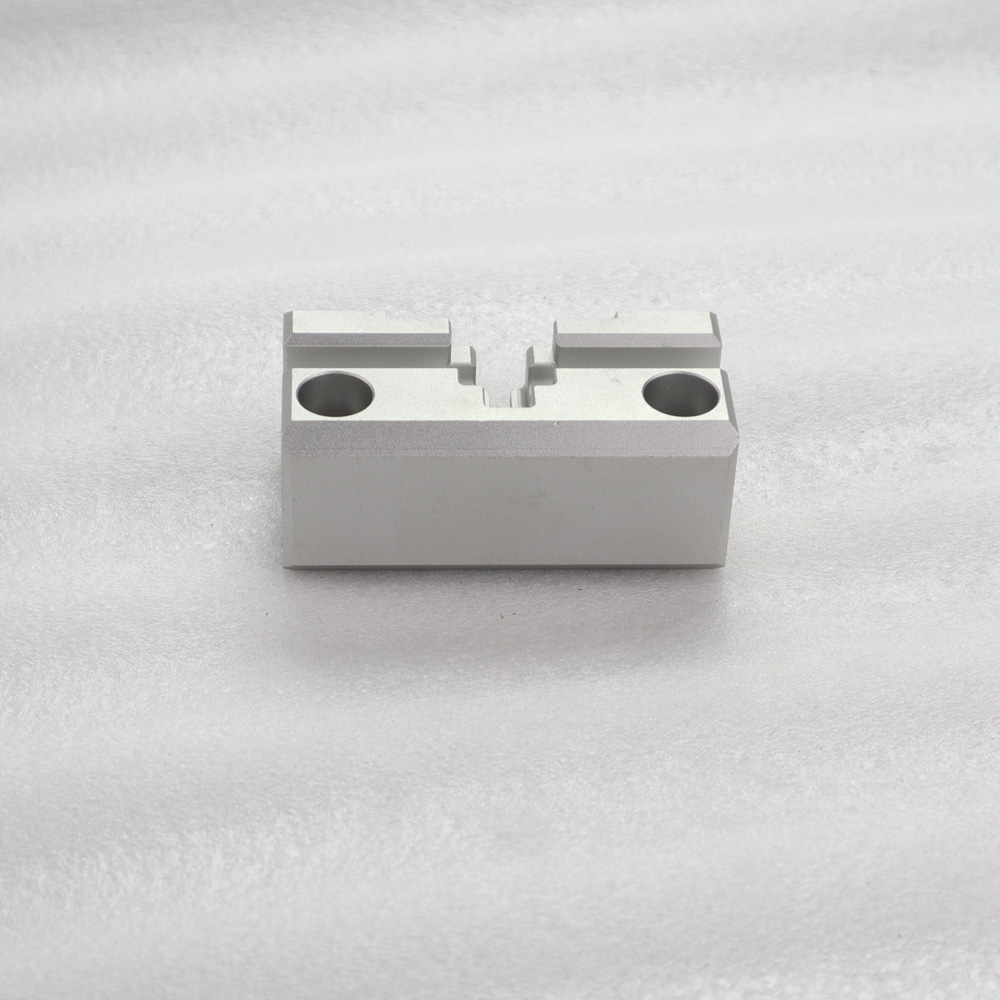

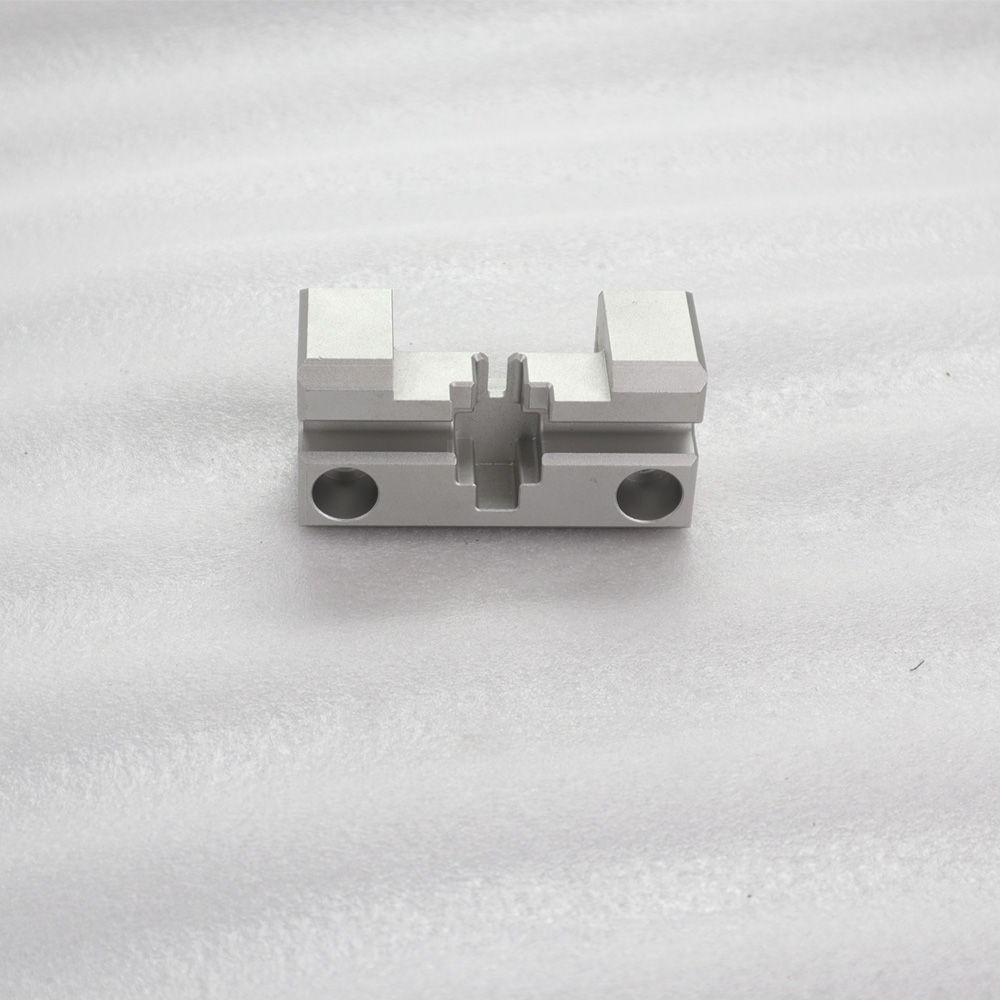

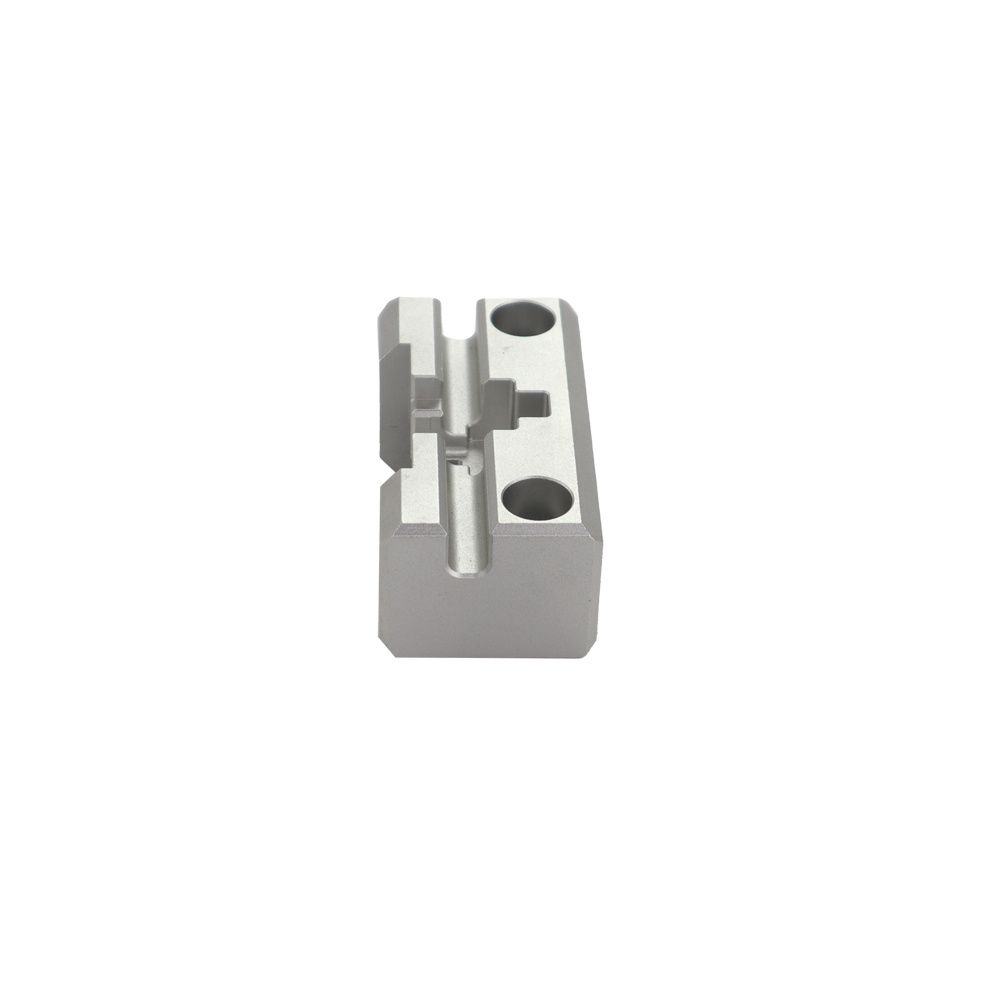

This product is a compact rectangular metal component with a silver metallic finish, likely made of aluminum or a lightweight alloy. The surface is smooth and polished (Ra ≤0.8μm), featuring two vertically aligned circular holes on the top surface. A central groove with a raised mid-section is present, suggesting functional use for guiding or securing other parts. The plain white background highlights its minimalist industrial design, making it suitable for machinery or equipment applications such as connectors or support brackets.

Core Parameters

Design Highlights

1. Functional Design

   • Central Groove: The raised mid-section enhances grip and alignment during assembly, preventing lateral displacement.
   • Circular Holes: Φ8mm holes on the top surface support bolt/screw fixation (shear strength ≥10kg).

2. Material & Process

   • Aluminum Alloy: Lightweight (density 0.9g/cm³) and corrosion-resistant, ideal for precision equipment.
   • Mirror Polishing: Smooth surface reduces friction (μ ≤0.12) and improves visual appeal.

3. Industrial Compatibility

   • Minimalist design ensures compatibility with automated assembly lines.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust groove dimensions or hole specifications (requires 3D model in STEP format).
2. Material upgrades (e.g., titanium alloy for high-stress applications).
3. Surface treatment customization (anodizing/sandblasting).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
