Aluminum alloy parts

Order durable aluminum alloy castings. Our precision-machined parts are lightweight, corrosion-resistant, and tailored to meet the needs of your project or industry.
Send Inquiry

Products Description

Product Name: Silver L-shaped Metal Mechanical Component

Product Overview

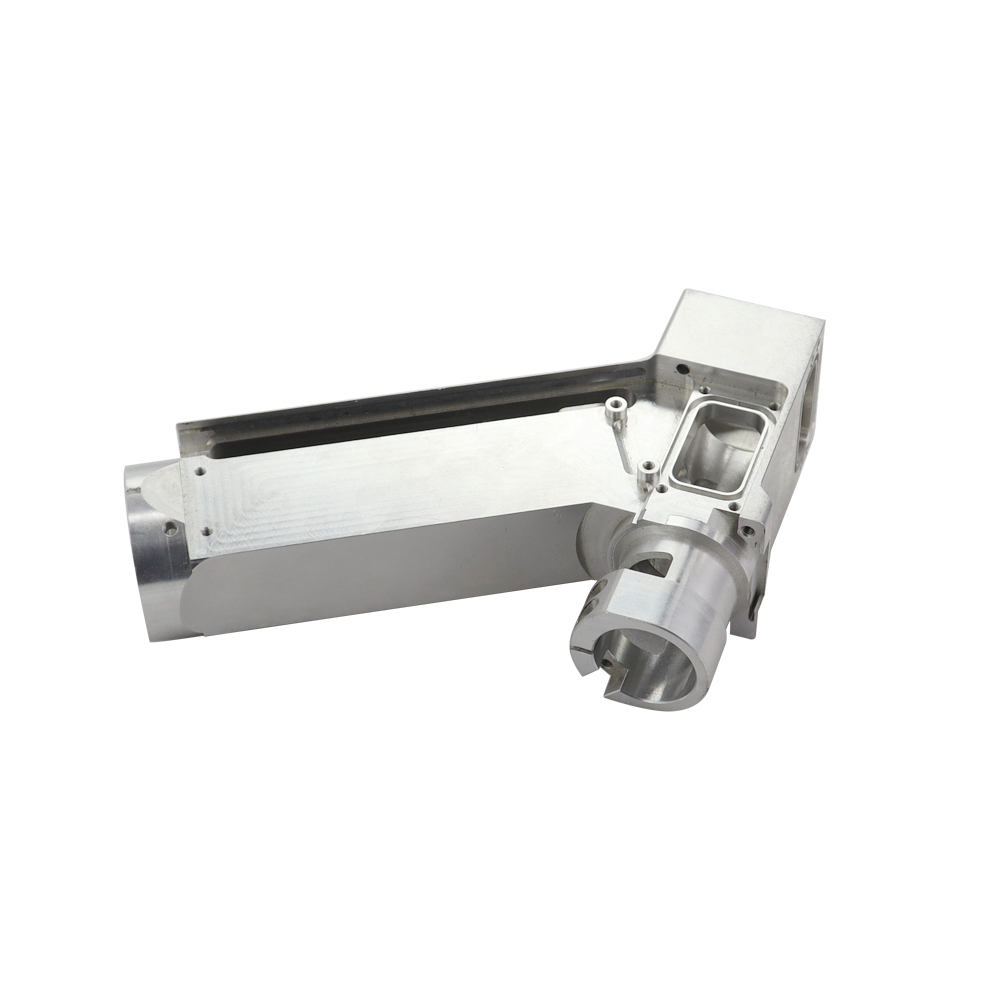

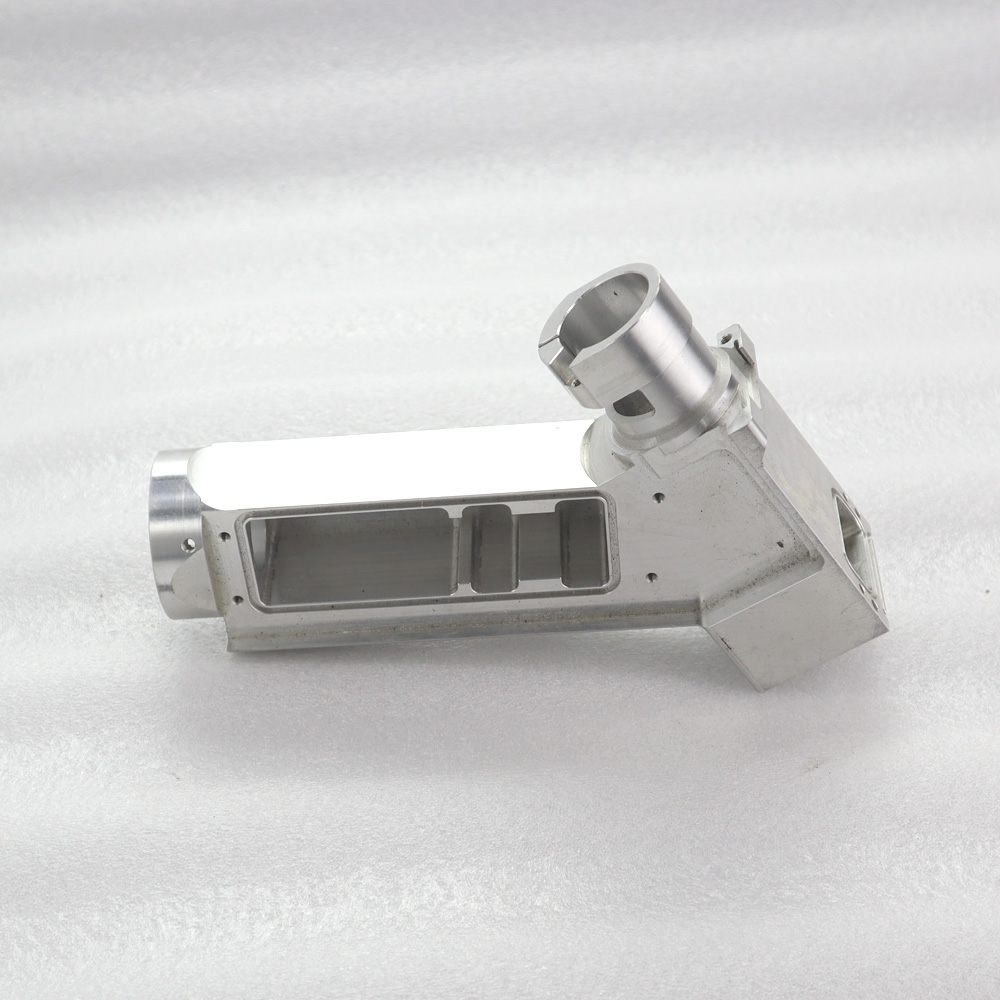

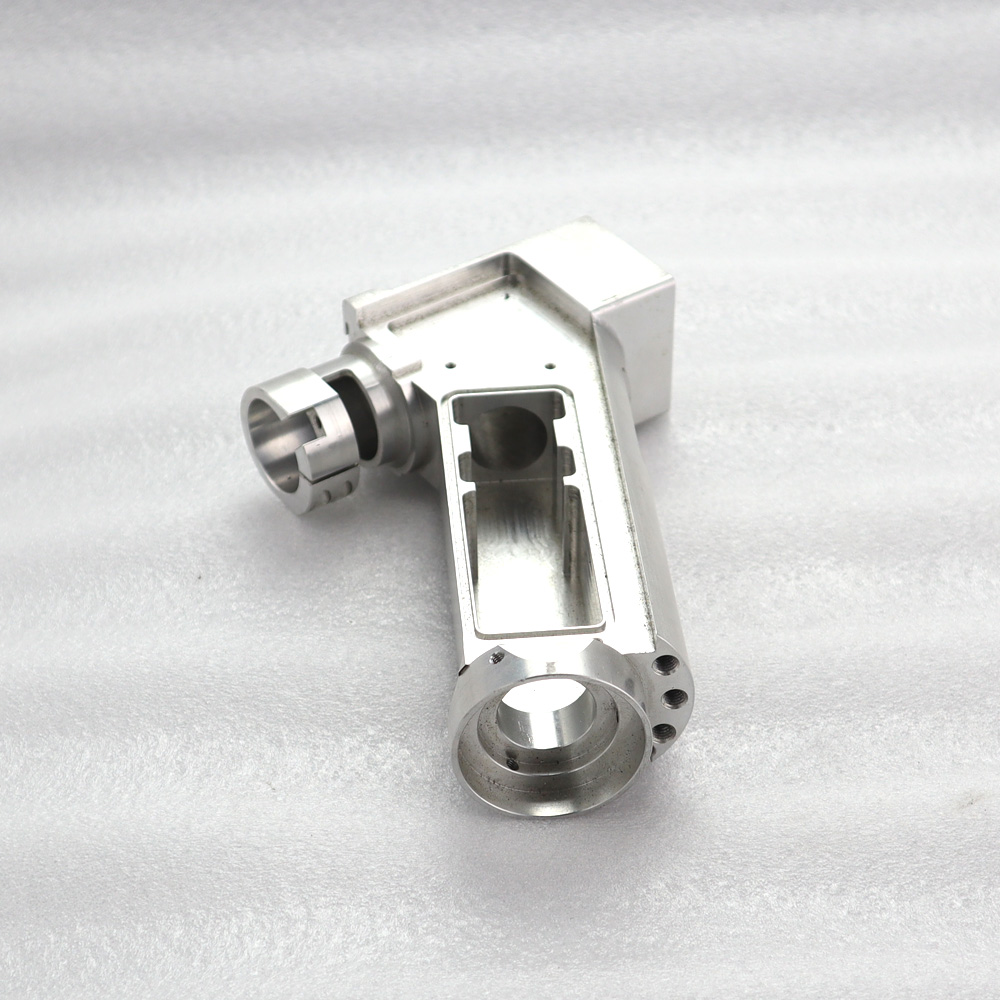

This product is a silver-colored L-shaped metal mechanical component with a smooth, mirror-polished surface, showcasing precision manufacturing details. The main body features a rectangular left section and a right-side complex structure with circular openings and multiple screw holes. The minimalist design, set against a pure white background, emphasizes its industrial and technological sophistication. Suitable for industrial machinery, automation equipment, or structural connections requiring high precision.

Core Parameters

ParameterTechnical Specifications
MaterialAluminum Alloy 6061 (Estimated) or Stainless Steel 304
DimensionsApproximate: 150mm (L) × 60mm (W) × 40mm (H)
Left section: 100mm (L) × 40mm (W) × 20mm (H)
Right section: Circular openings Φ8–Φ12mm, screw holes M4–M6
StructureL-shaped body + Left rectangular section + Right circular openings + Multi-screw holes
Surface FinishMirror polishing (Ra ≤0.8μm)
Load CapacityStatic load ≥20kg (ISO 6055 standard)

Design Highlights

  1. Functional Structure

    • L-shaped Layout: Optimizes space utilization for compact installations while maintaining structural rigidity.
    • Circular Openings: Φ8–Φ12mm holes support shaft pins or bolt fixation (shear strength ≥10kg).
    • Multi-screw Holes: M4–M6 holes on the right section enable rapid assembly (shear strength ≥8kg).

  2. Material & Process

    • Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant, ideal for precision applications.
    • Stainless Steel 304 Option: Enhanced rust resistance for harsh environments.
    • Mirror Polishing: Smooth surface (Ra ≤0.8μm) reduces friction and improves visual appeal.

  3. Mechanical Optimization

    • Hole edges feature R0.3mm fillet transitions to prevent stress concentration and extend service life.

Application Scenarios

IndustryTypical Use Cases
Industrial MachineryMachine tool fixtures / Hydraulic valve brackets
Automation EquipmentRobotic arm joints / Sensor mounting bases
AutomotiveTransmission shaft components / Cooling system mounts

Customization Services

✅ Supported Customizations:

  1. Adjust L-angle, hole distribution, or rectangular section dimensions (requires 3D model in STEP format).
  2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
  3. Surface treatment customization (sandblasting/anodizing/brushed texture).

⚠️ Requirements:

  • 3D models and tolerance documents (ISO 2768 standard) required.


Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
