Product Name: Blue Plastic Frame for Mobile Devices

Product Overview

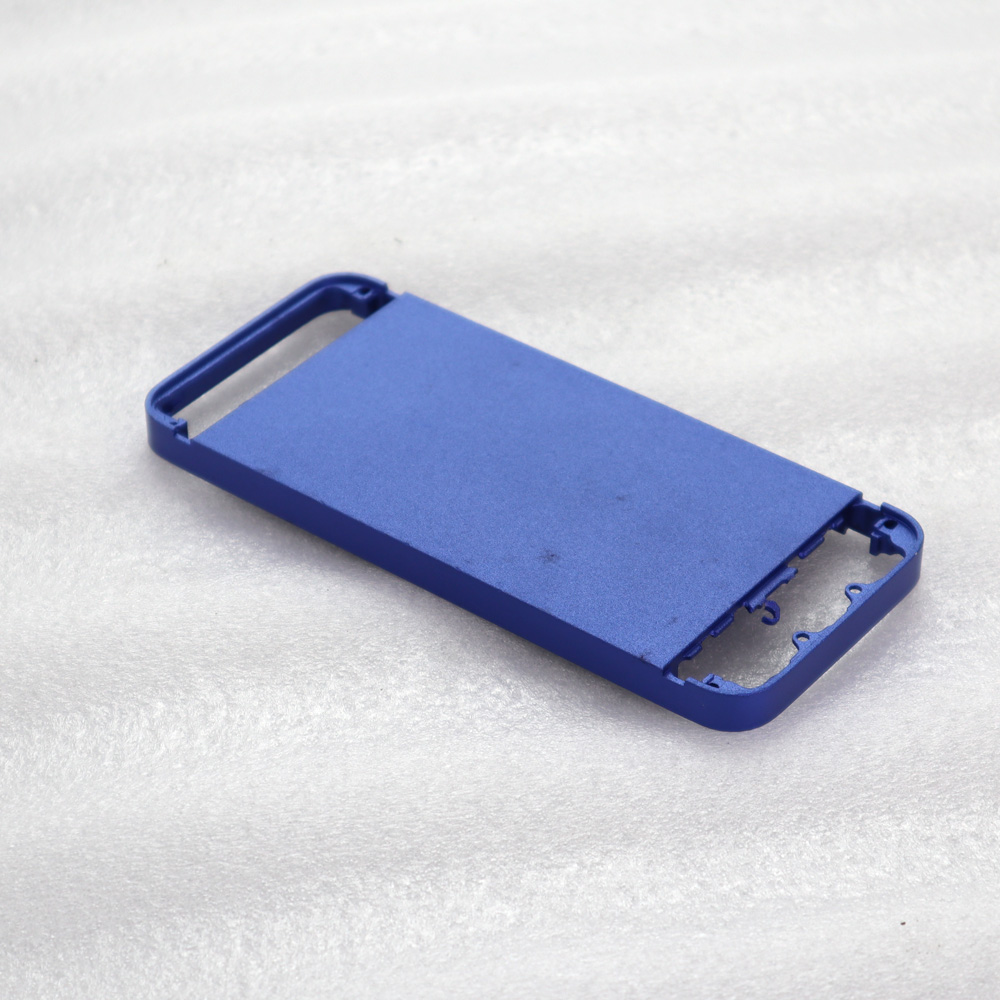

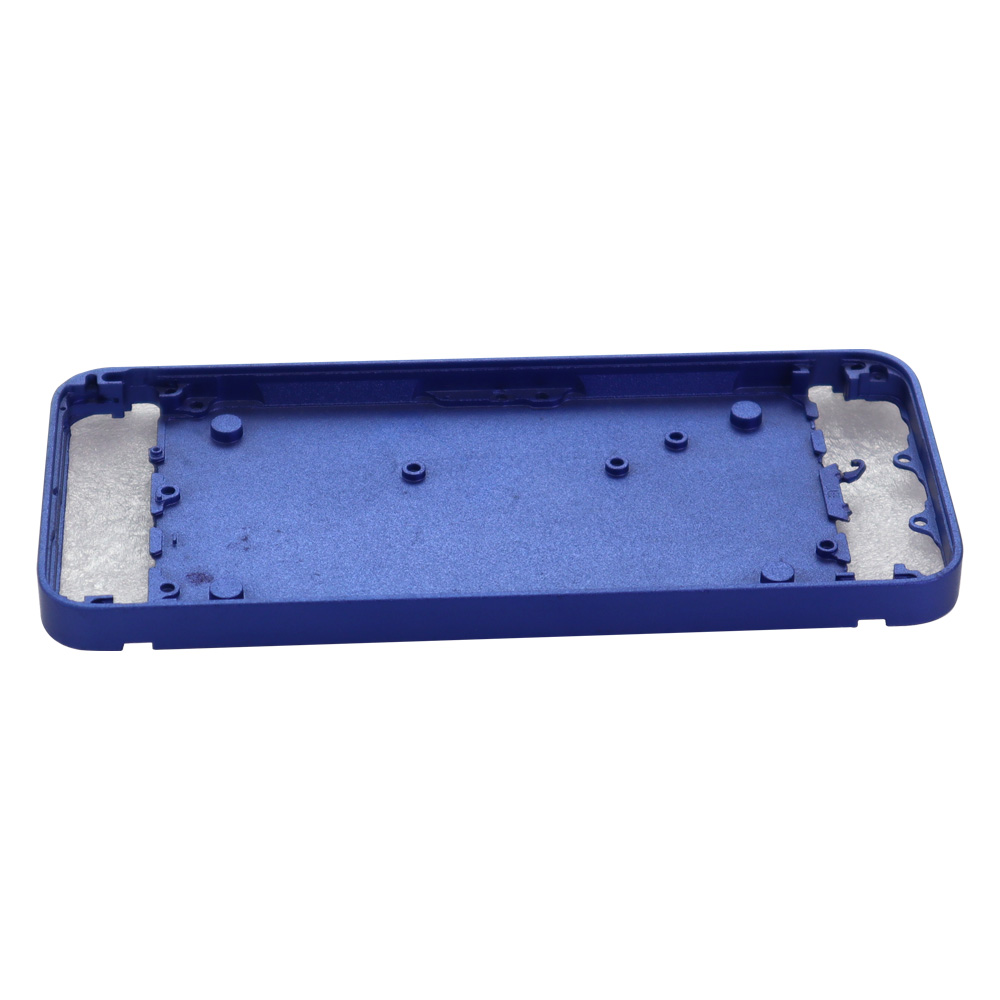

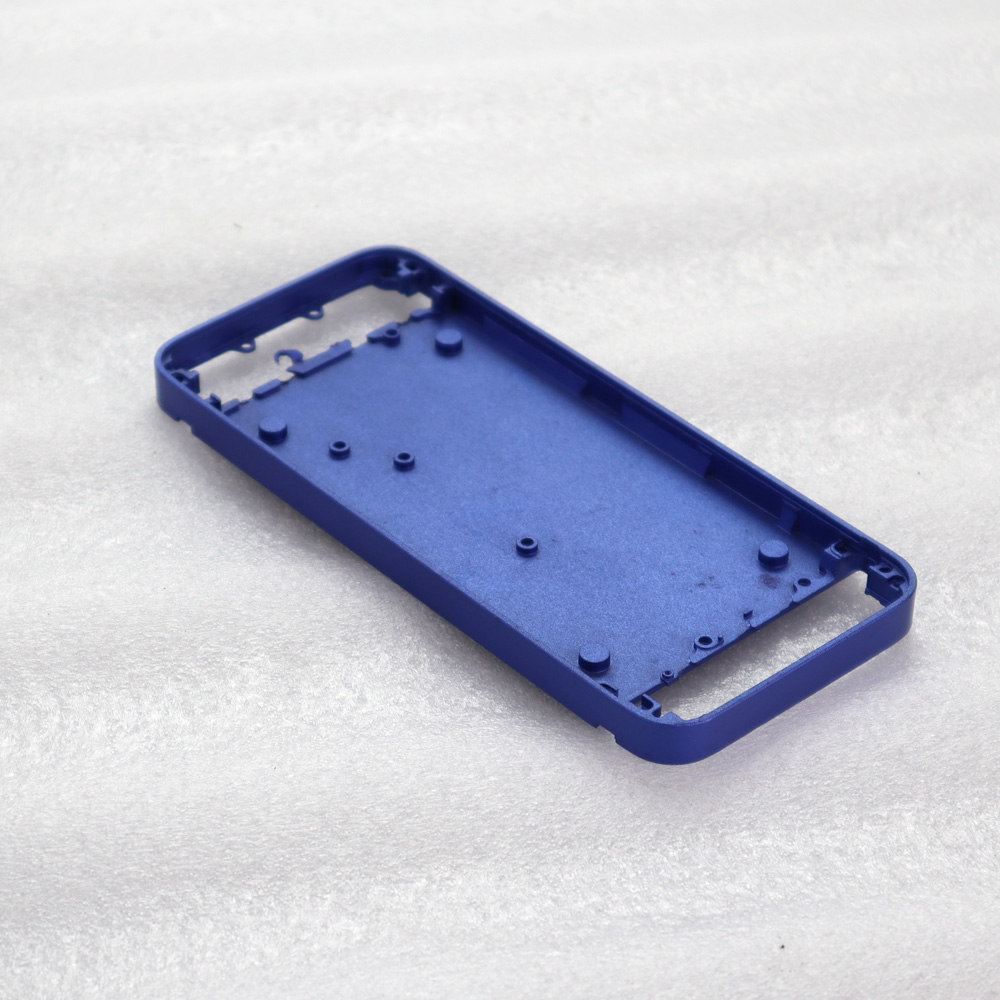

This product is a blue rectangular plastic frame with rounded corners, designed for mobile phones or similar electronic devices. The frame features circular holes and notches on its surface for screws, connectors, or other components. Protrusions and cut-outs on the sides enhance structural support or weight reduction. The interior has a lighter, metallic-appearing area on both sides, likely for reinforcement. Set against a plain white background, the blue frame stands out clearly, with a simple composition focused on detailing.

Core Parameters

Design Highlights

1. Functional Structure

   • Dual Side Clasps: Enhances device connection stability, supports quick disassembly (tensile strength ≥8kg).
   • Hole Layout:
     • Circular holes (Φ3–Φ8mm) for screws or pin fixation (shear strength ≥5kg).
     • Rectangular holes (10×20mm) for interface or heat dissipation grille installation.

2. Material & Process

   • Polycarbonate (PC): High impact resistance (ｄｒｏｐ test ≥1.2m), transparent version available.
   • ABS Plastic: Wear-resistant (Mohs hardness ≥1.2), suitable for frequent plugging scenarios.
   • Smooth Surface: Reduces friction coefficient (μ ≤0.2), easy to clean and assemble.

3. Mechanical Optimization

   • Clasp edges feature R0.3mm fillet transitions to prevent stress concentration and deformation.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust clasp positions, hole dimensions, or frame thickness (requires 3D model in STEP format).
2. Material upgrades (e.g., PC/ABS hybrid materials or anti-static coatings).
3. Surface treatment customization (matte/fingerprint-resistant coating/brushed texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
