Products Description

Product Name: Red Rectangular Metal Connector

Product Overview

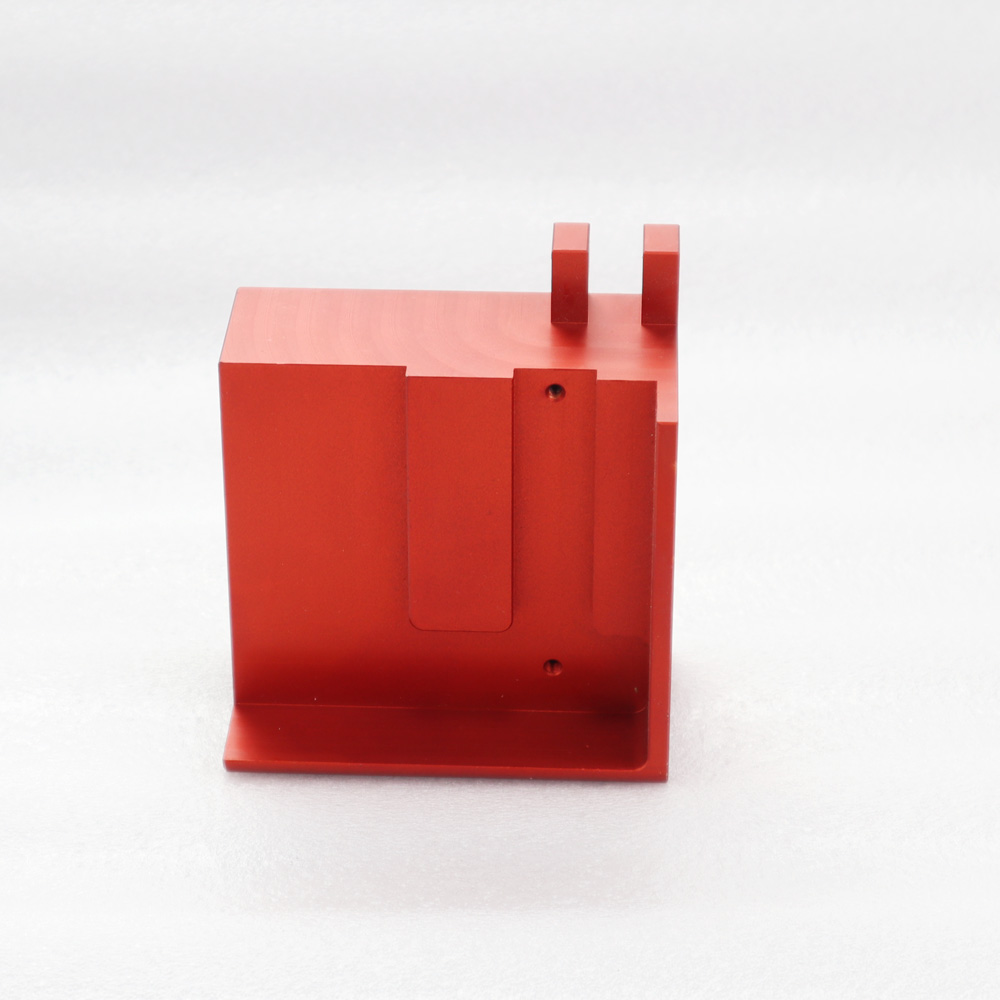

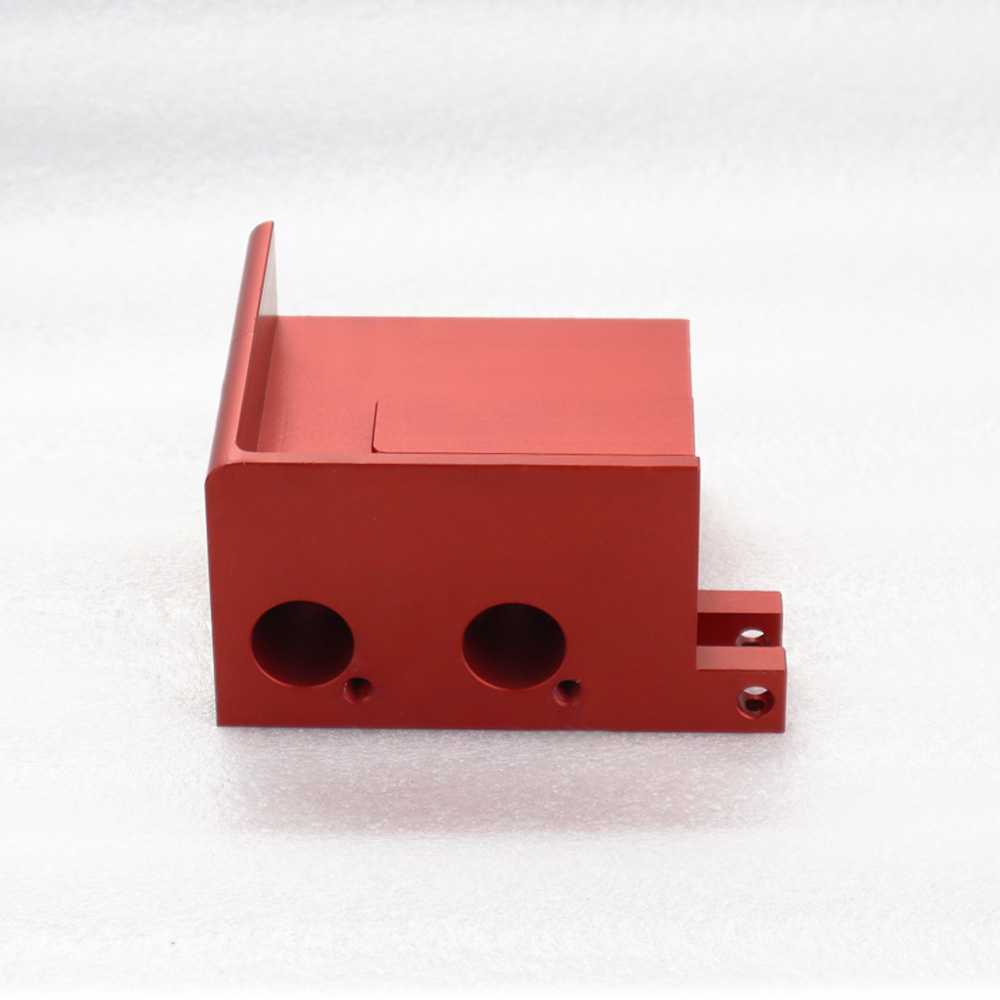

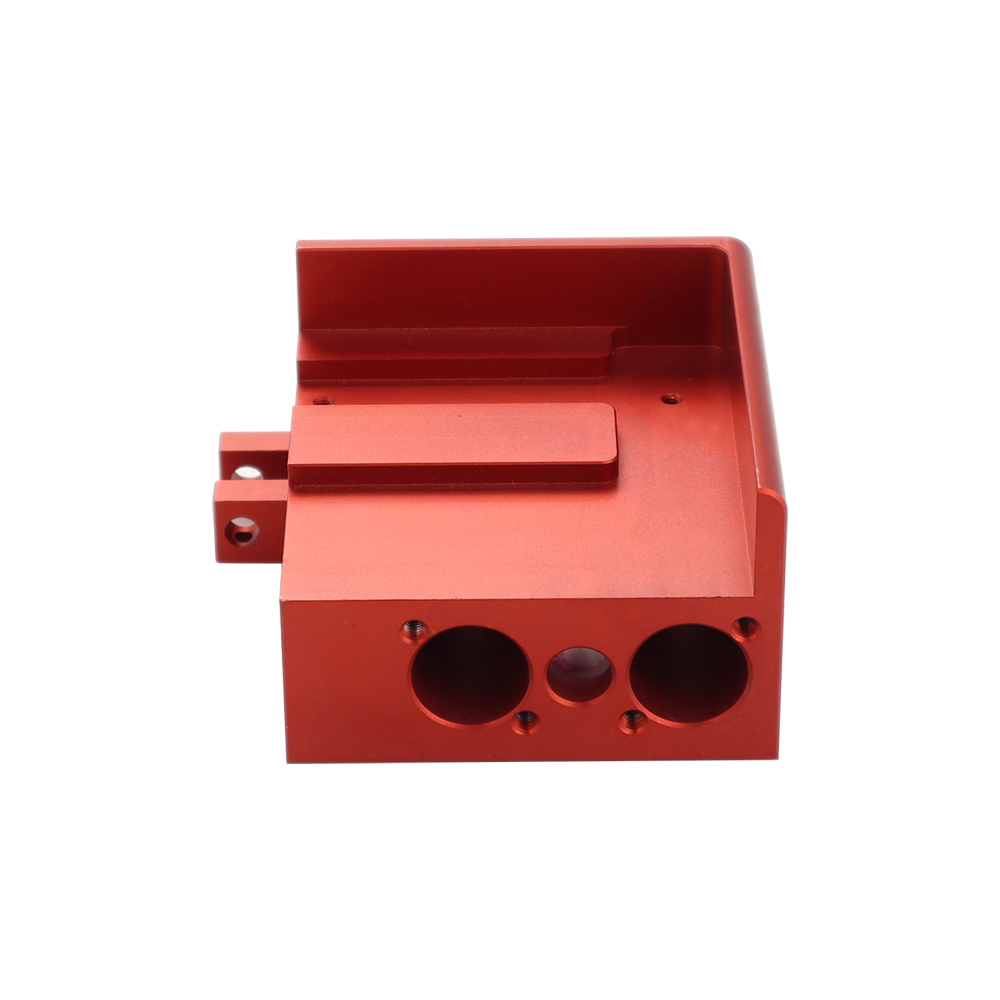

This product is a red-colored metal rectangular component with a smooth mirror-polished finish (Ra ≤0.8μm). The main body features a slightly raised upper section on one side and a flat, elongated protrusion on the top surface. Two small square sections with holes are located on one side for mounting or connection purposes. At the bottom front, there are two large circular openings surrounded by smaller holes. Mounted on a plain white background, the red component stands out clearly, highlighting its industrial design and precision engineering. Suitable for mechanical assembly, equipment fixation, or structural connection applications.

Core Parameters

ParameterTechnical Specifications
MaterialStainless Steel 304 (Suspected) or Aluminum Alloy 6061
DimensionsTotal length ≈120mm × Width 60mm × Height 40mm
Top protrusion height: 15mm
Bottom hole diameter: Φ10–Φ12mm (main holes)
StructureRectangular body + Slightly raised upper section + Flat elongated protrusion + Side square sections (with holes) + Bottom dual large holes
Surface FinishMirror polishing (Ra ≤0.8μm)
Load CapacityStatic load ≥20kg (ISO 6055 standard)

Design Highlights

  1. Functional Structure

    • Top Inclined Plane: Optimizes installation angles for inclined surfaces (friction coefficient μ ≥0.5).
    • Protrusion Structure: Rectangular protrusion (10×5mm) enhances rigidity and prevents displacement during assembly.
    • Bottom Dual Holes: Φ10–Φ12mm main holes for shaft pins or bolt fixation (shear strength ≥12kg); surrounding smaller holes support sensor or pipeline mounting.

  2. Material & Process

    • Stainless Steel 304: High corrosion resistance (salt spray test ≥500 hours), ideal for harsh environments. Aluminum Alloy 6061 version available for lightweight (density 0.9g/cm³).
    • Mirror Polishing: Smooth surface (Ra ≤0.8μm) reduces friction (μ ≤0.12) and improves industrial aesthetics.

  3. Mechanical Optimization

    • Hole edges feature R0.3mm fillet transitions to prevent stress concentration.

Application Scenarios

IndustryTypical Use Cases
Industrial EquipmentMachine tool fixtures / Hydraulic valve brackets
Automation MachineryRobotic arm joints / Sensor mounting bases
Automotive ComponentsEngine part fixation / Cooling system piping

Customization Services

✅ Supported Customizations:

  1. Adjust protrusion height, hole distribution, or extended structure dimensions (requires providing a 3D model in STEP format).
  2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
  3. Surface treatment customization (sandblasting/anodizing/satin texture).

⚠️ Requirements:

  • 3D models and tolerance documents (ISO 2768 standard) required.


Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters are verified based on the ISO 9001 quality system. Free DFM analysis provided.
