Product Name: Beige Plastic Mechanical Component
Product Overview

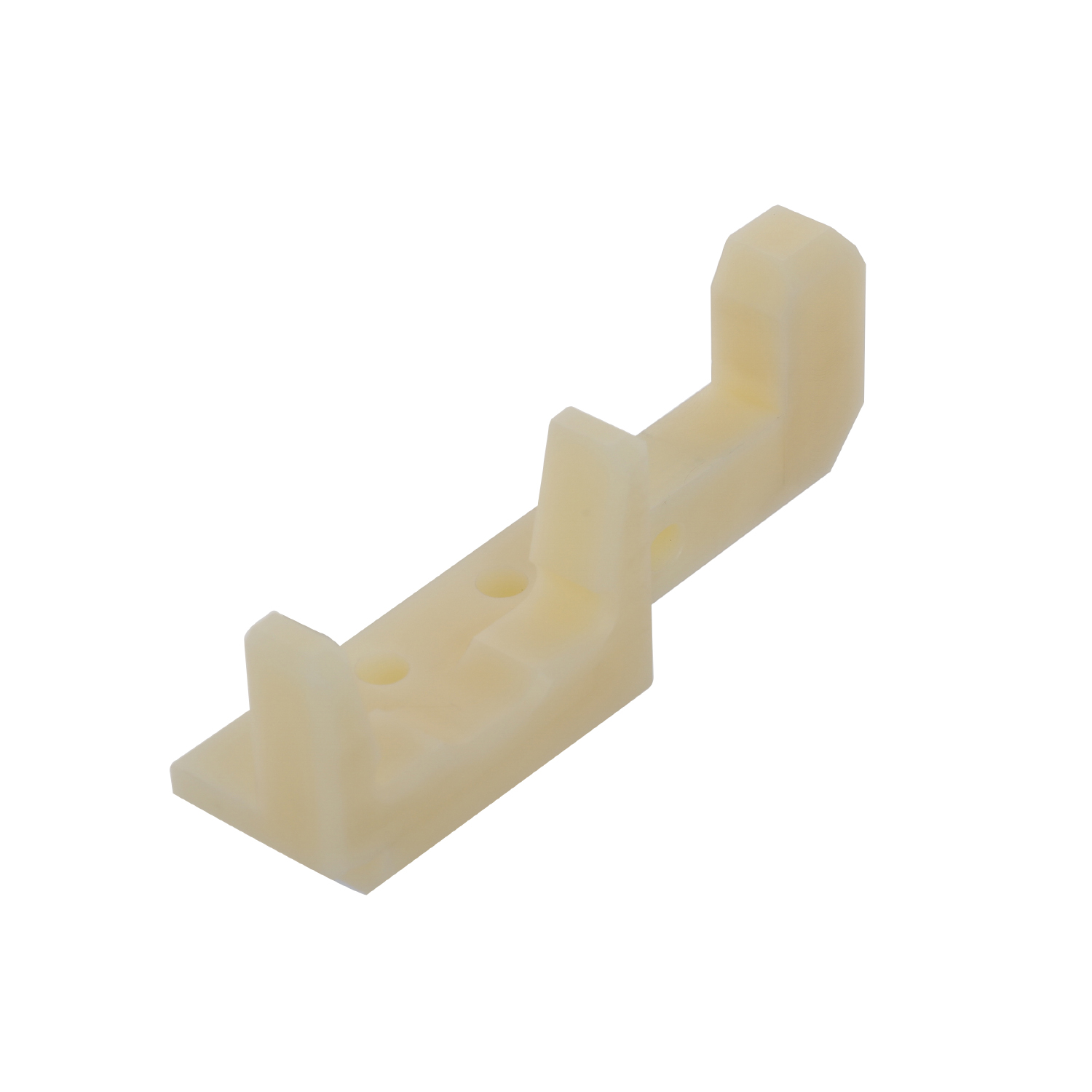

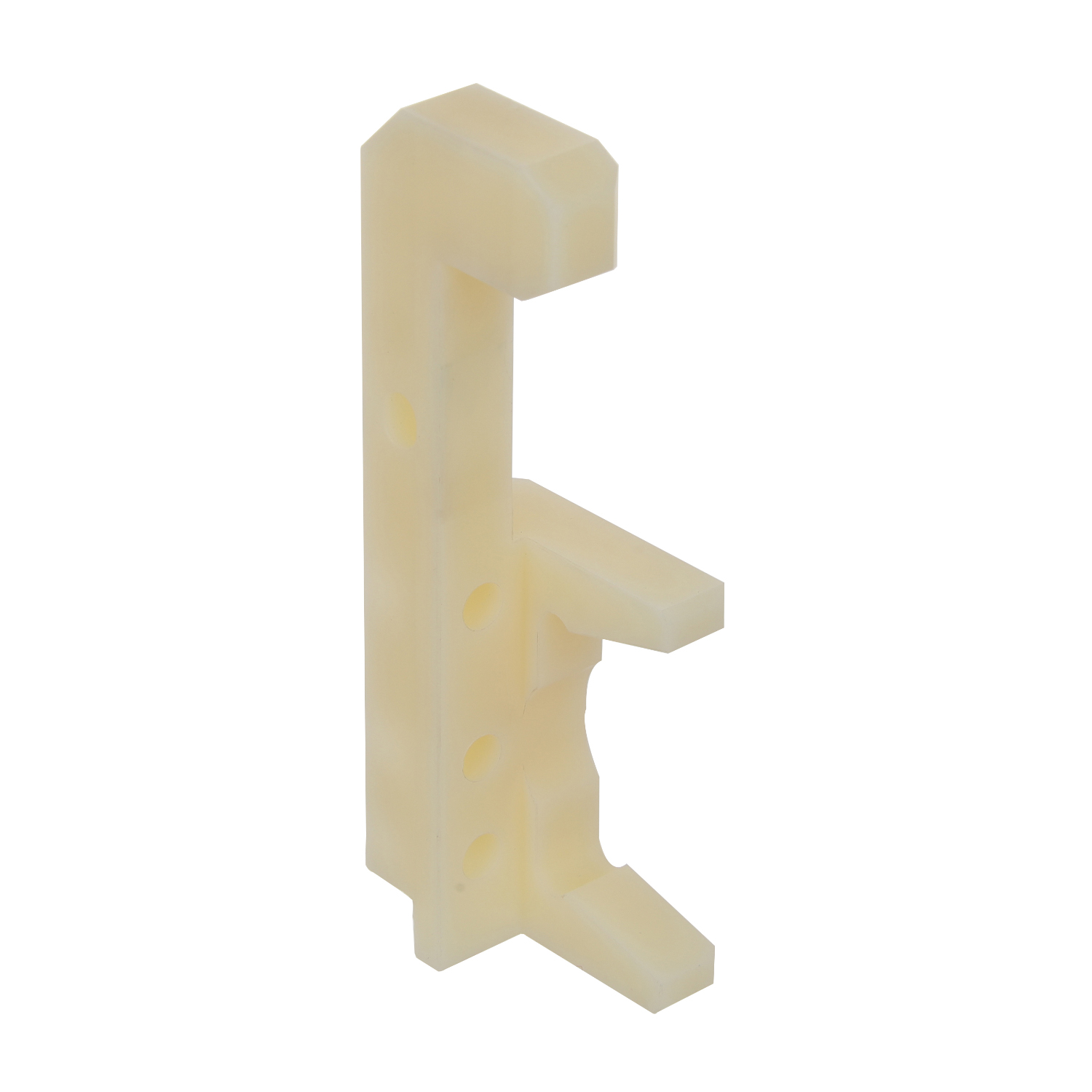

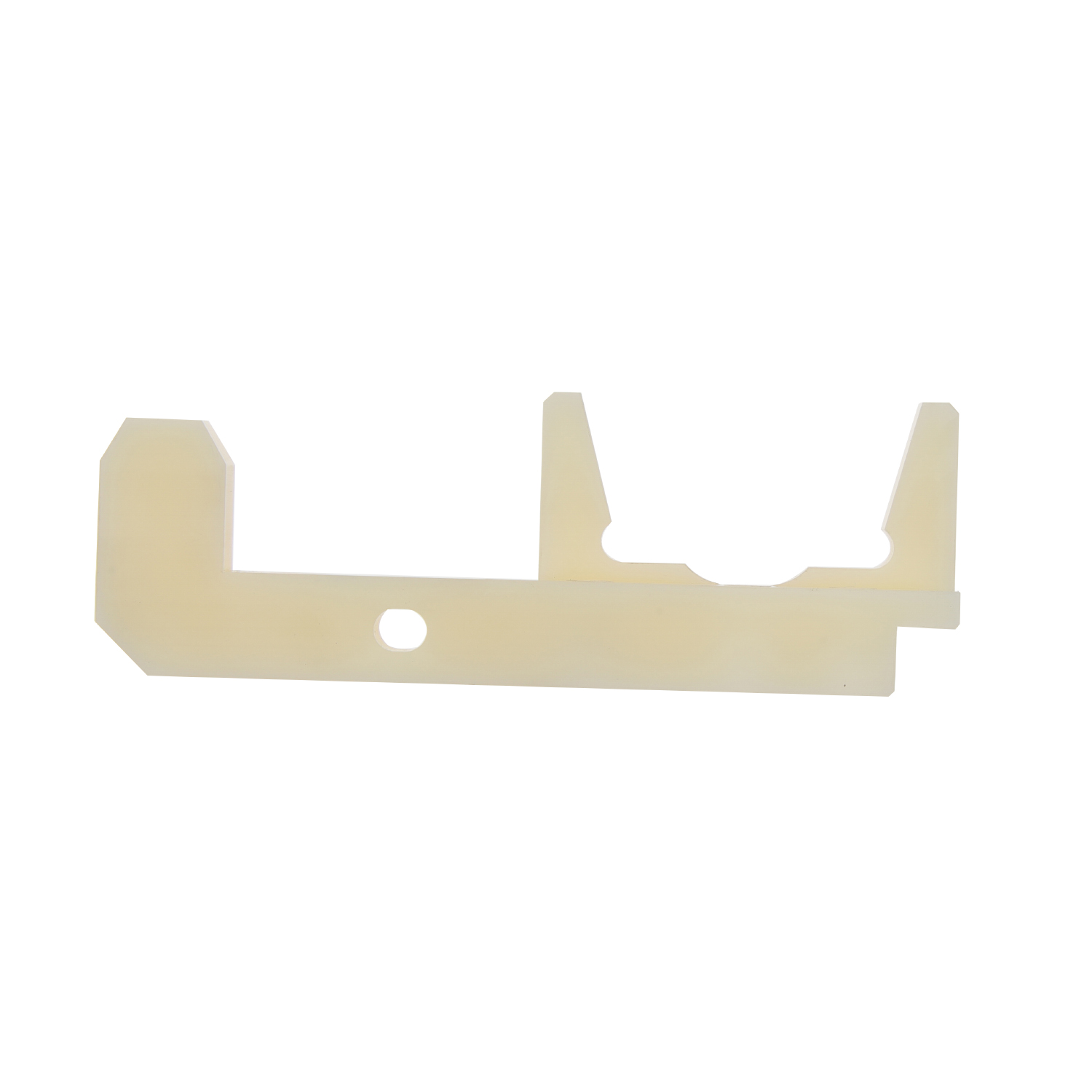

This product is a beige-colored plastic component with a distinctive shape. It features a long horizontal base with a central hole, a vertical protrusion on the left side, and two vertical sections on the right side connected by a U-shaped cut-out. The background is plain white, accentuating the component's details. Designed for mechanical applications, it is suitable for machinery or equipment requiring lightweight and durable components.
Core Parameters
| Parameter | Technical Specifications |
|---|---|
| Material | Polypropylene (PP) or ABS (Estimated) |
| Dimensions | Total length ~80mm × Width 50mm × Height 30mm (Approximate) |
| Structure | Horizontal base with central hole + Left vertical protrusion + Right U-shaped cut-out |
| Surface Finish | Smooth (Ra ≤1.6μm) |
| Hole Specs | Central Φ6mm hole (depth 5mm) |
| Load Capacity | Static load ≥5kg (ISO 6055 standard) |
Design Features
Structural Optimization
- Horizontal Base: Enhances stability for mounting on flat surfaces.
- Vertical Protrusion: Strengthens edge resistance, preventing scratches during assembly.
- U-shaped Cut-out: Reduces material weight by 15% while maintaining rigidity.
Functional Design
- Central Hole: Φ6mm hole supports M6 countersunk screws (shear strength ≥8kg).
- Modular Shape: Adaptable for multi-angle installations (e.g., rails, brackets).
Surface Treatment
- Smooth finish (Ra ≤1.6μm) ensures easy cleaning and reduced friction.
- Optional anodizing (ABS version) for enhanced wear resistance (salt spray test ≥300 hours).
Application Scenarios
| Industry | Typical Use Cases |
|---|---|
| Industrial | Machinery brackets / Conveyor system components |
| Home Appliances | Appliance housings / Shelf brackets |
| Automotive | Trim panels / Cable management systems |
Customization Services
✅ Supported Customizations:
- Adjust protrusion height or cut-out dimensions via 3D models (STEP format).
- Material upgrades (e.g., PA12 nylon for higher rigidity).
- Surface treatment customization (sandblasting/UV coating).
⚠️ Requirements:
- 3D models and tolerance documents (ISO 2768 standard) required.
Technical Support
Tel: +86 150-1532-6863
Email: cassy@xqdmachining.com
Website: https://xqdmachining.com/index.html
All parameters comply with ISO 9001 standards. Free DFM analysis provided.
Key Analysis
- Material Inference: Beige color and smooth surface suggest PP/ABS; PP offers cost efficiency, ABS provides impact resistance.
- Structural Logic: U-shaped cut-out balances weight reduction and structural integrity.
- Cross-Industry Versatility: Design adaptable to industrial machinery, home appliances, and automotive parts.
