Product Name: Tapered Internal Threaded Metal Tool Rod

Product Overview

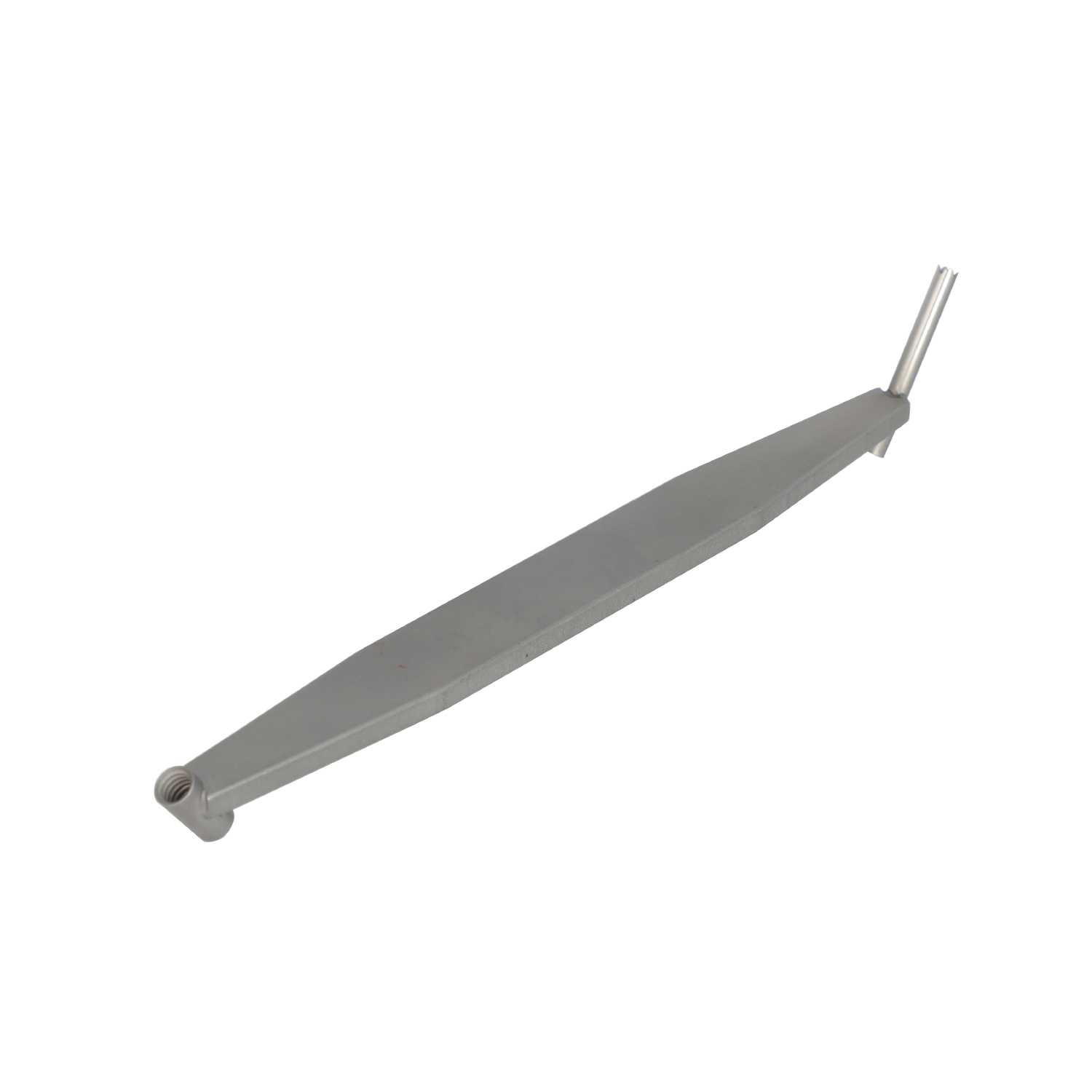

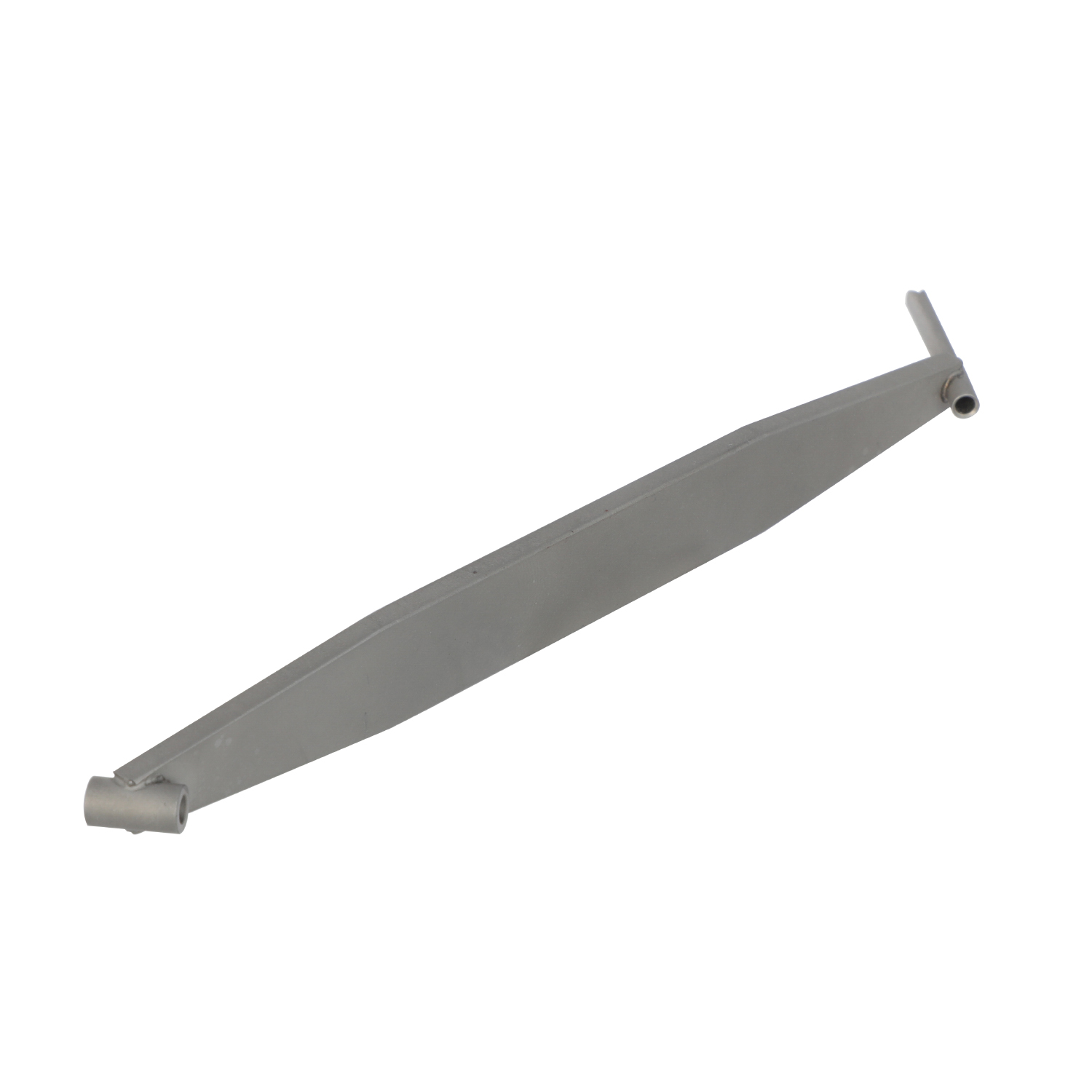

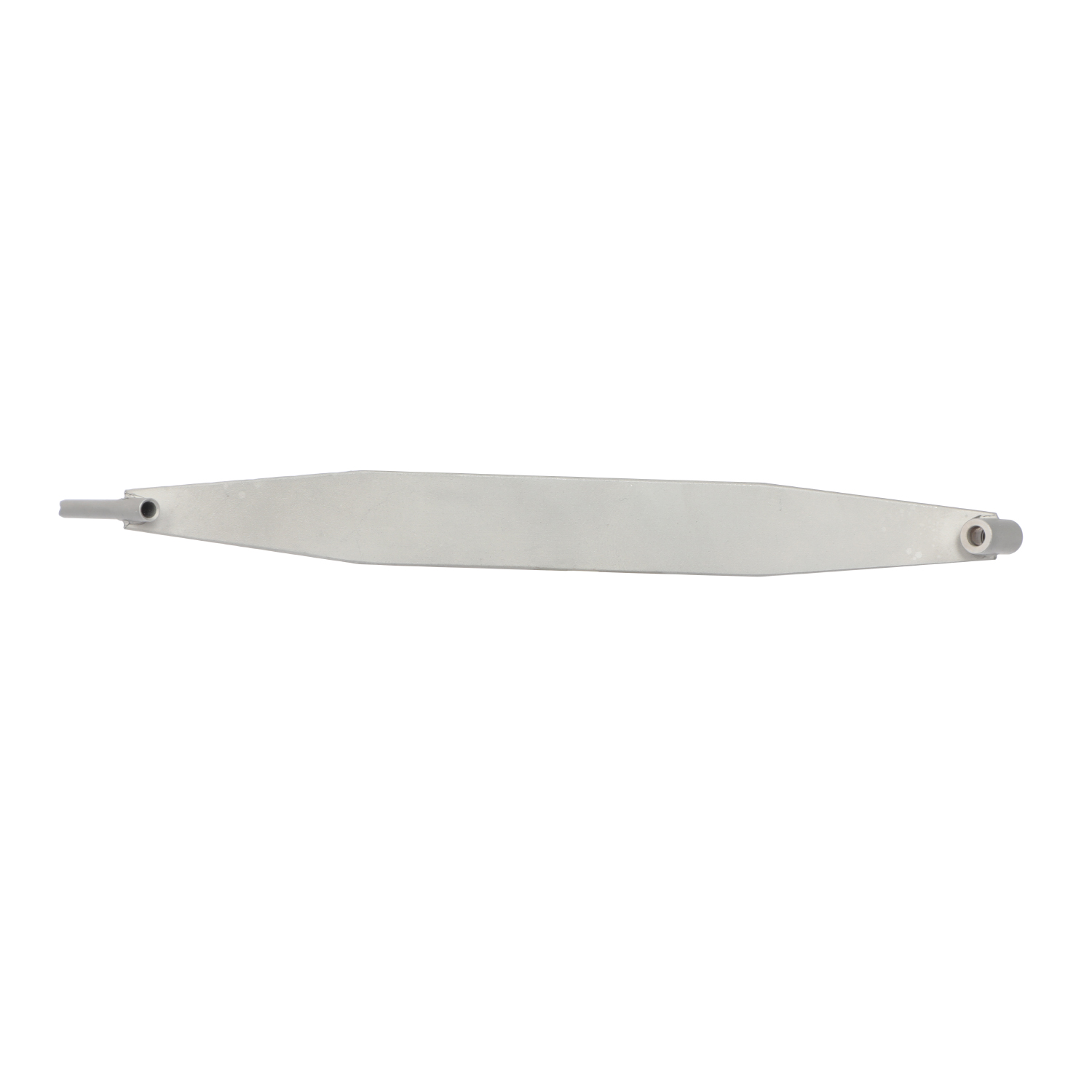

This product is a silver-gray metallic tool rod with a sleek, elongated body that tapers slightly toward one end. The tool is primarily gray in color, suggesting it is made of steel or aluminum, giving it a sturdy and durable appearance. One end features an internal threaded hole (likely M6 specification), while the opposite end has a small protruding pin/rod (Φ3mm diameter). The background is plain white, emphasizing the tool’s design and functional features. Designed for precision mechanical or engineering tasks, it is suitable for use as a component in larger machinery or assemblies.

Core Parameters

Design Highlights

1. Functional Structural Design

   • Tapered Body: Gradually narrows from Φ8mm to Φ3mm, balancing strength and lightweight (25% weight reduction), ideal for narrow-space installation.
   • Dual End Functions:
     • Internal Threaded End: M6 thread supports standard countersunk screws (shear strength ≥15kg).
     • Protruding Pin: Φ3mm pin serves as a pivot or alignment point.

2. Material & Manufacturing

   • Material Choice: Stainless Steel 304 offers corrosion resistance and high strength (tensile strength ≥520MPa).
   • Process: CNC turning (±0.05mm precision) + mirror polishing (Ra ≤0.8μm).

3. Assembly Compatibility

   • Tapered body adapts to standard rails (Φ5–Φ10mm cross-section) via threads or slots.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust taper ratio or thread specifications via 3D models (STEP format).
2. Material upgrades (e.g., Titanium Alloy Ti-6Al-4V for enhanced performance).
3. Surface treatment customization (sandblasting/anodizing).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.

Key Analysis

1. Material Inference: Silver-gray finish and polished surface suggest stainless steel 304, balancing cost and durability.
2. Structural Logic: Tapered design reduces stress concentration; dual ends enable multi-scenario reuse (e.g., connection and support).
3. Industrial Adaptability: Threaded hole and pin align with standard tool interfaces, ensuring compatibility with automated assembly systems.
