Product Name: Orange Square Plastic Component

Product Overview

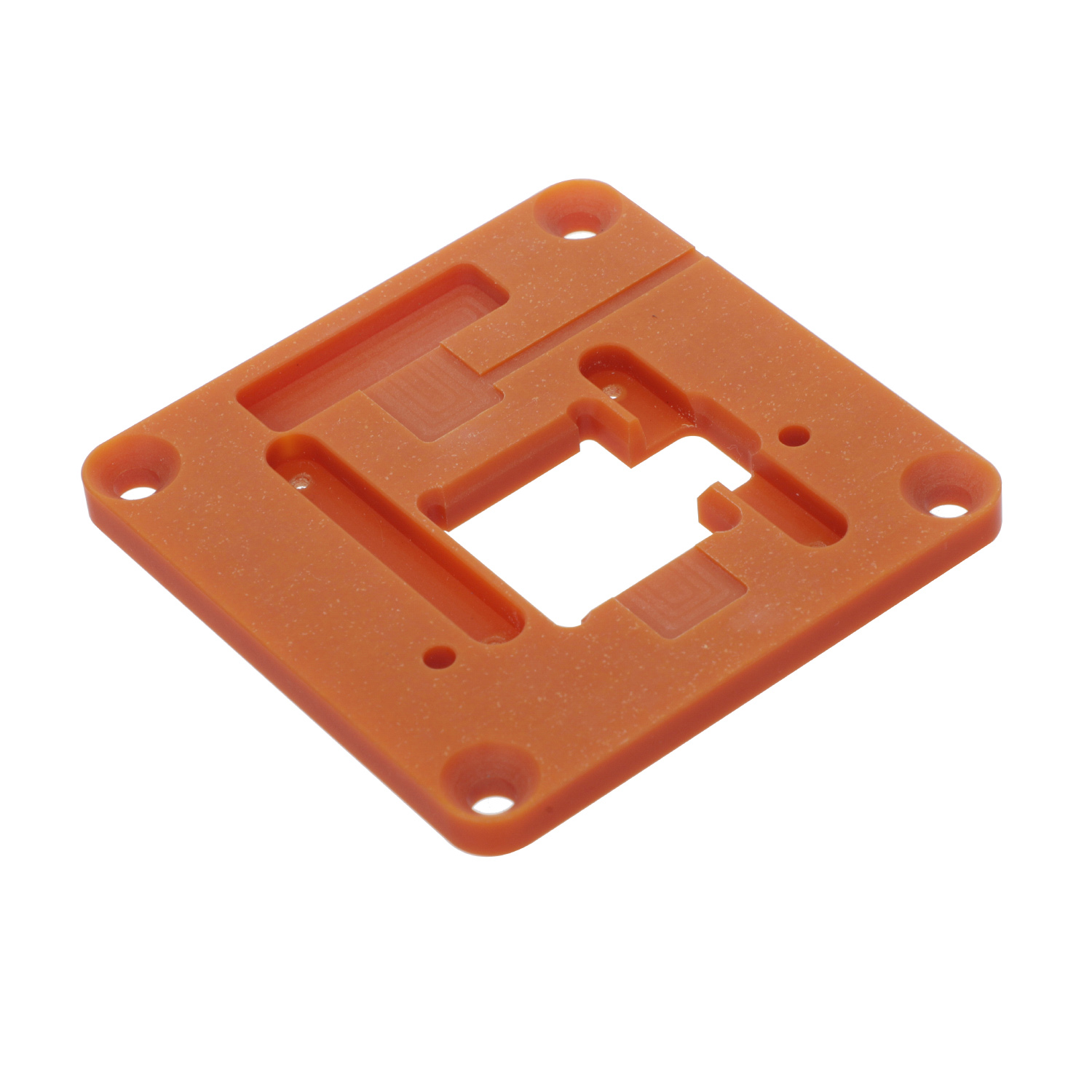

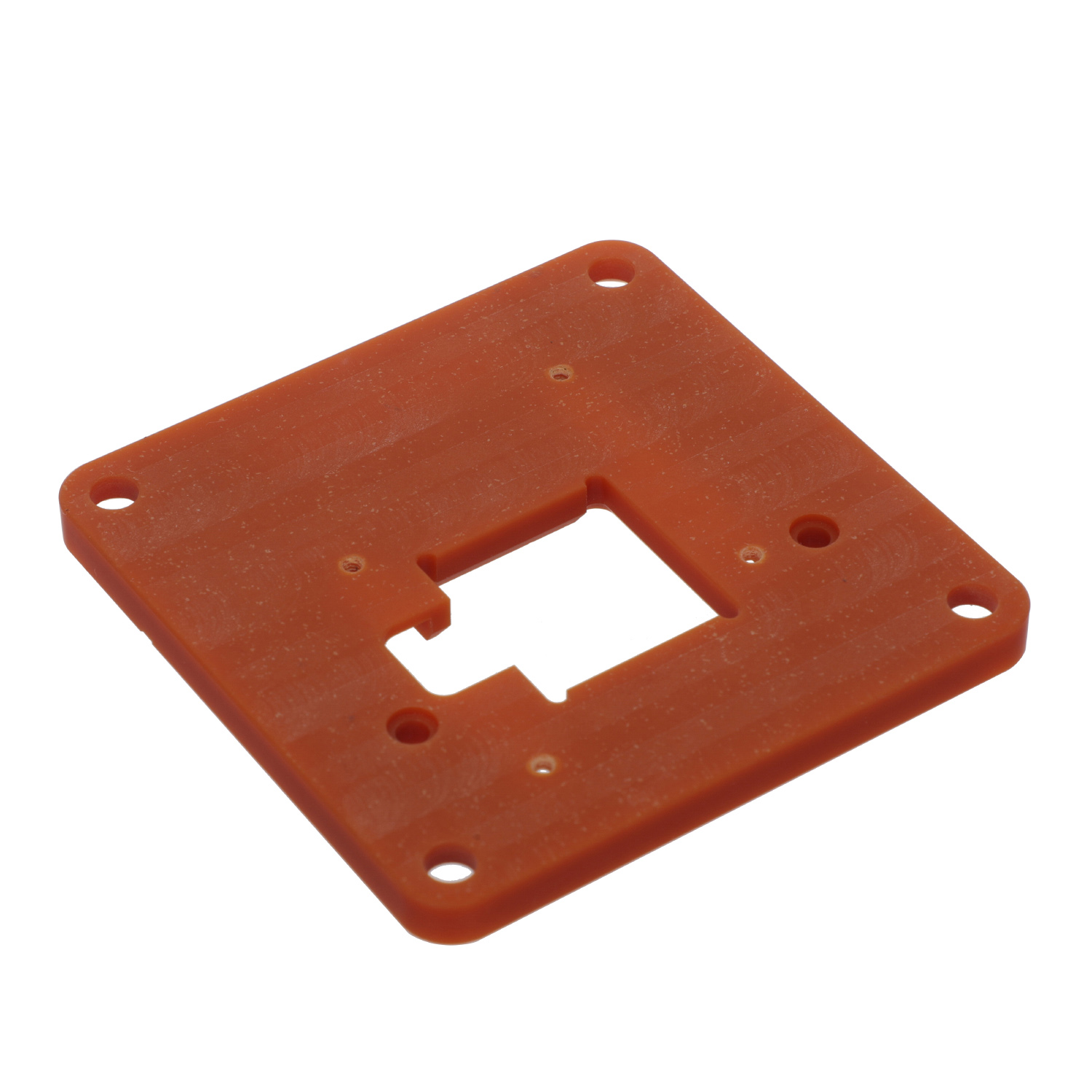

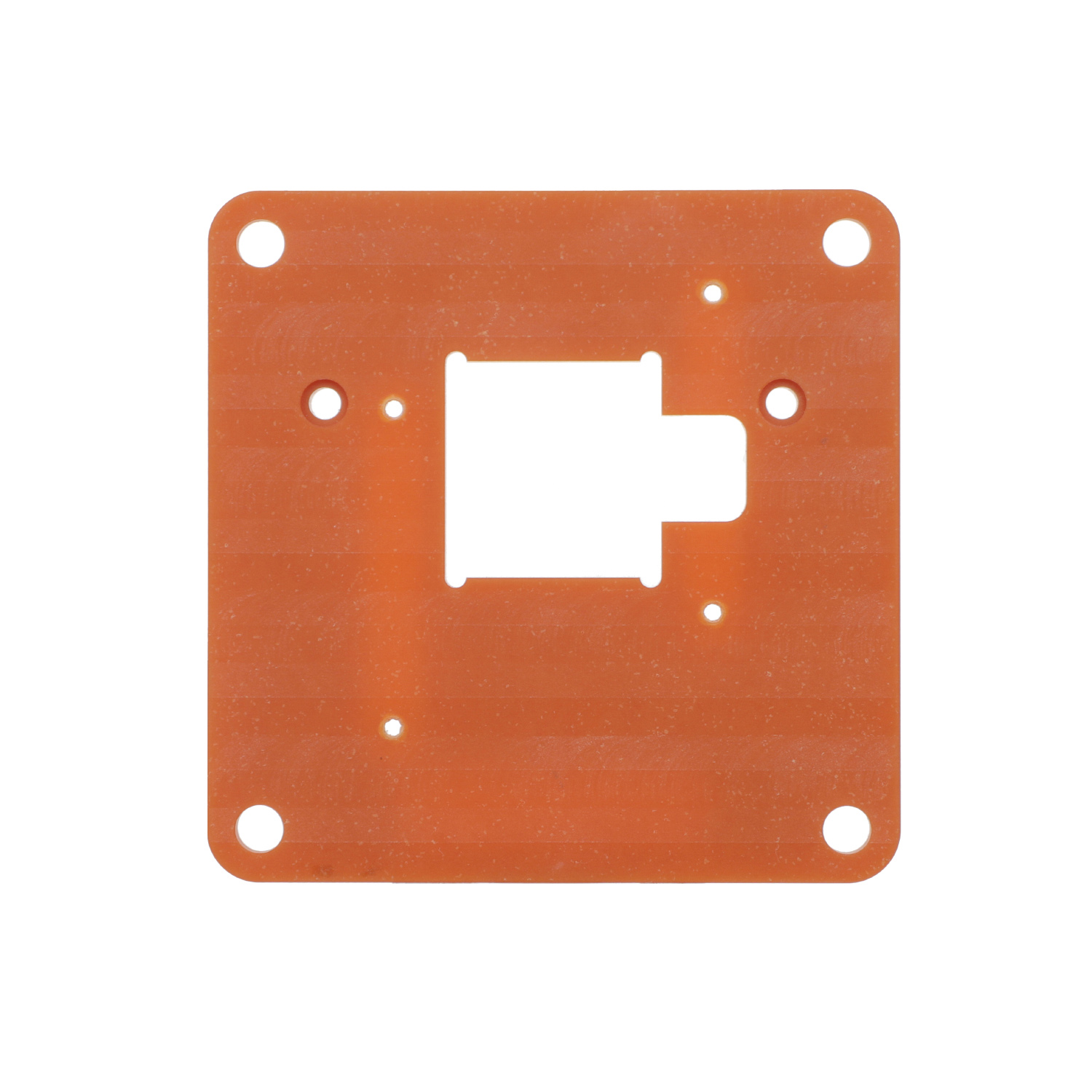

This product is an orange square plastic component with a smooth, rounded-corner design. The main body is a flat square plate with four circular holes at each corner. The center features a rectangular cut-out with an additional small protrusion on one side. Mounted on a pure white background, the vibrant orange color ensures distinct visibility. The minimalist design focuses solely on the plastic component, with no additional text or elements.

Core Parameters

Design Highlights

1. Functional Structure

   • Four Corner Holes: Φ8–Φ10mm holes support screw or pin fixation (shear strength ≥5kg), compatible with standard installation.
   • Center Cut-out:
     • Irregular rectangular shape reduces material usage (saves ~15% weight) while providing space for pipelines or sensors.
     • Protrusion enhances local rigidity to prevent deformation during assembly.

2. Material & Process

   • ABS Plastic: High wear resistance (Mohs hardness ≥1.2), ideal for frequent handling or lightweight applications.
   • Smooth Surface: Low friction coefficient (μ ≤0.2) for easy cleaning and rapid assembly.

3. Mechanical Optimization

   • Cut-out edges feature R0.3mm fillet transitions to disperse stress concentration and extend service life.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust hole positions, cut-out shapes, or plate thickness (requires 3D model in STEP format).
2. Material upgrades (e.g., PC/ABS hybrid or anti-static coatings).
3. Surface treatment customization (matte/fingerprint-resistant/brushed texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
