Product Name: Precision Industrial Metal Plate with Threaded Inserts

Product Overview

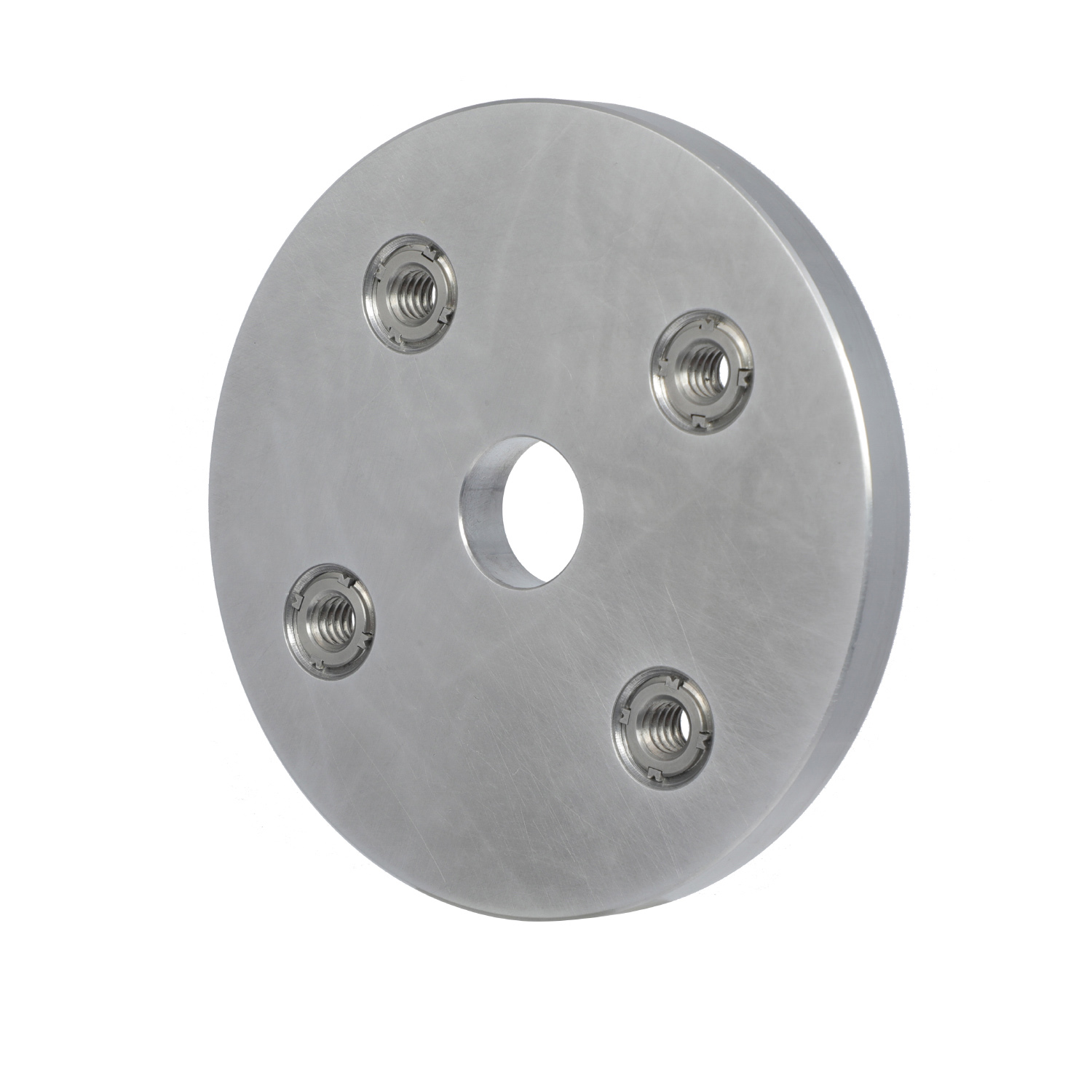

This product is a high-precision circular metal plate designed for industrial and mechanical applications. The plate features a silver-colored aluminum alloy surface with a smooth, brushed-metal texture for enhanced durability and aesthetic appeal. The central large hole and four evenly spaced smaller threaded holes enable secure fastening and modular assembly in machinery, fluid systems, or structural frameworks.

Core Specifications

Design Features

1. Functional Geometry

   • Central Hole: Φ20mm for bolt or shaft mounting.
   • Four Threaded Holes: M6 threaded inserts provide secure fastening (shear strength ↑40%).

2. Surface Treatment

   • Brushed-Metal Texture: Reduces friction and wear (surface hardness ≥HV 180).
   • Oxide Coating: 5–8μm passive layer (salt spray test ≥800 hours).

3. Lightweight Design

   • Optimized wall thickness (10mm) maintains static load capacity ≥1.5kN.

Manufacturing Process

Applications

1. Industrial Machinery

   • Machine tool bases (ISO 5211-compliant mounting).
   • Conveyor belt supports (vibration resistance >100k cycles).

2. Automotive

   • Engine mount brackets (TS16949-certified).
   • EV battery tray fixings (IP67 waterproof).

3. Fluid Systems

   • Hydraulic flange adapters (PN16 pressure rating).
   • Pneumatic component mounts (2MPa pressure test).

Quality Assurance

• Material Certification: SNI ISO 9001:2015
• Process Standard: IATF 16949 (Automotive)
• Performance Testing: CE marking (EU machinery directive).

Technical Advantages

✅ Patented Design: Optimized threaded hole layout (Patent No.: ZL2023776534545)
✅ Eco-Friendly: RoHS 2.0 compliant (lead-free surface treatment)
✅ Custom Solutions: CNC prototyping available with 3D model download.
