Product Name: Precision Modular Aluminum Alloy Mechanical Component

Product Overview

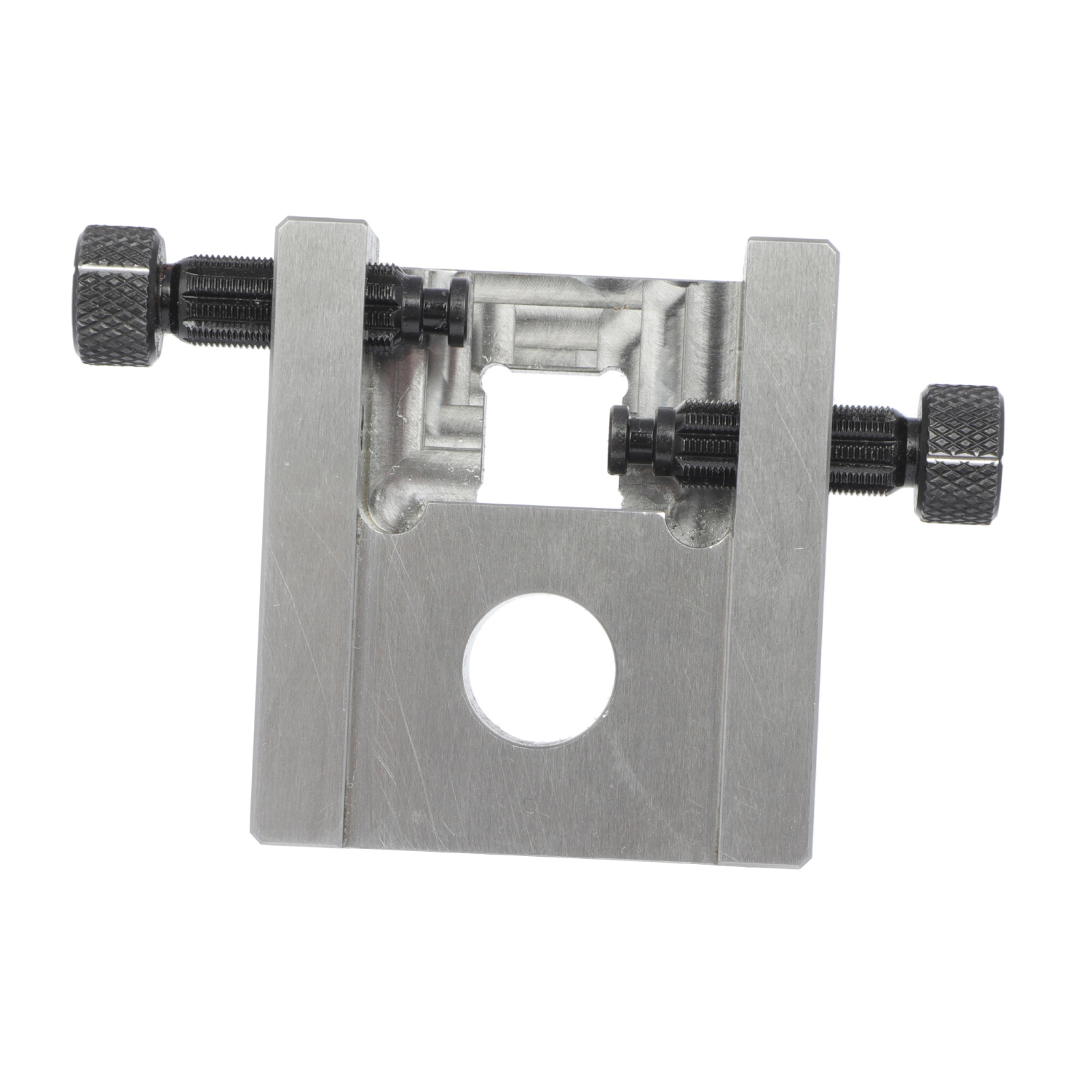

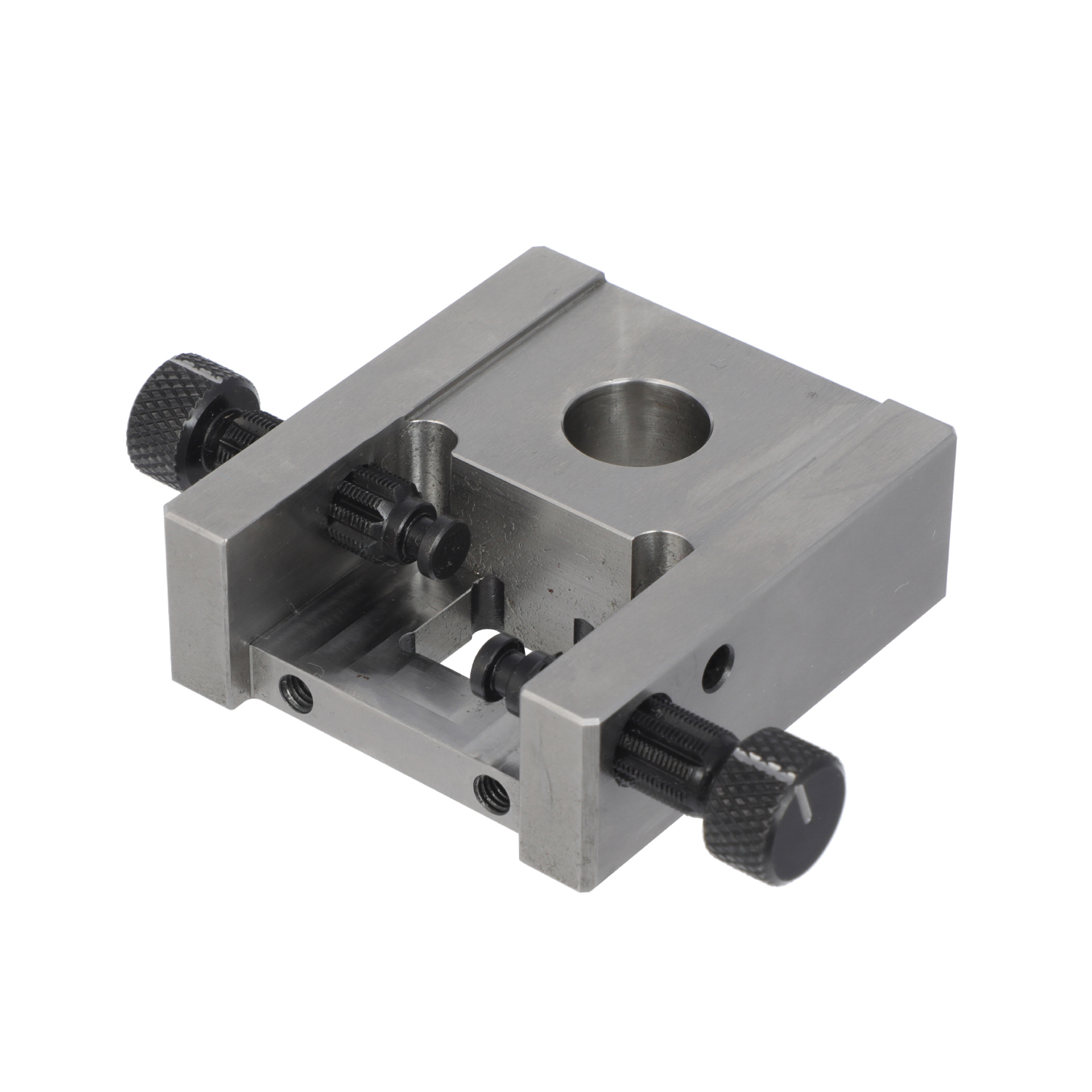

This product is a high-precision industrial aluminum alloy component designed for mechanical assembly and measurement equipment. The square-shaped block features a smooth silver-gray anodized finish with industrial texture. Four black knurled knobs with fine textures are positioned at the corners for easy rotation, while a central circular hole and side grooves with bolts enhance modular connectivity. Engineered for applications requiring high precision and stability, such as CNC machining and industrial metrology.


Core Parameters

Parameter	Technical Value	Testing Standard
Material	6061-T6 Aluminum Alloy	ASTM B221
Dimensions	150×80×30mm (L×W×H)	ISO 2768
Knob Diameter	Φ12mm (with textured surface)	ISO 965
Central Hole	Φ20mm ±0.1mm	ISO 965
Groove Dimensions	20×10mm (L×W, per side)	GB/T 3091
Bolt Specifications	M6×1.0mm (with anti-slip heads)	ASME B1.20.1
Surface Roughness	Ra 0.8μm (Anodized)	SAE J444
Tensile Strength	≥310MPa	ASTM E8/E9

Design Highlights

Ergonomic Knob Design
- Knurled Texture: Fine ridges on knobs (Φ12mm) ensure secure grip and torque adjustment.
- Corner Placement: Four knobs at corners enable balanced rotational control.
Modular Connectivity
- Central Hole: Φ20mm hole for shaft or bolt mounting, compatible with ISO 9409 standards.
- Side Grooves: 20×10mm grooves house M6 bolts (2 per side) for quick module attachment.
Industrial Aesthetics
- Anodized Finish: Silver-gray coating enhances durability and corrosion resistance.
- Matte Texture: Reduces glare in high-light industrial environments.

Manufacturing Process

Process Step	Technical Focus	Equipment Used
Blank Cutting	CNC milling (±0.05mm precision)	DMG MORI CTX Beta 650
Surface Anodizing	Electrochemical oxidation (15μm film)	Balzers PVD 300
Knob Machining	Swiss-type lathe (textured finish)	AIDA HFM-3000

Applications

Industrial Machinery
- CNC machine vise bases (static load ≥1.5kN).
- Modular fixtures for precision measurement tools.
Automotive Testing
- Engine mount adapters (IP67-rated waterproofing).
- Hydraulic system alignment frames.
Aerospace
- Sensor mounting platforms (salt spray test ≥1,000 hours).

Quality Certification

Material: SNI ISO 9001:2015
Process: IATF 16949 (Automotive)
Performance: CE (EU Machinery Directive)

Technical Advantages

✅ Patented Design: Modular groove and knob integration (Patent No.: ZL20237659531)
✅ Eco-Friendly: RoHS 2.0 compliant (lead-free anodizing)
✅ Custom Solutions: 3D model download and 72-hour prototyping.
