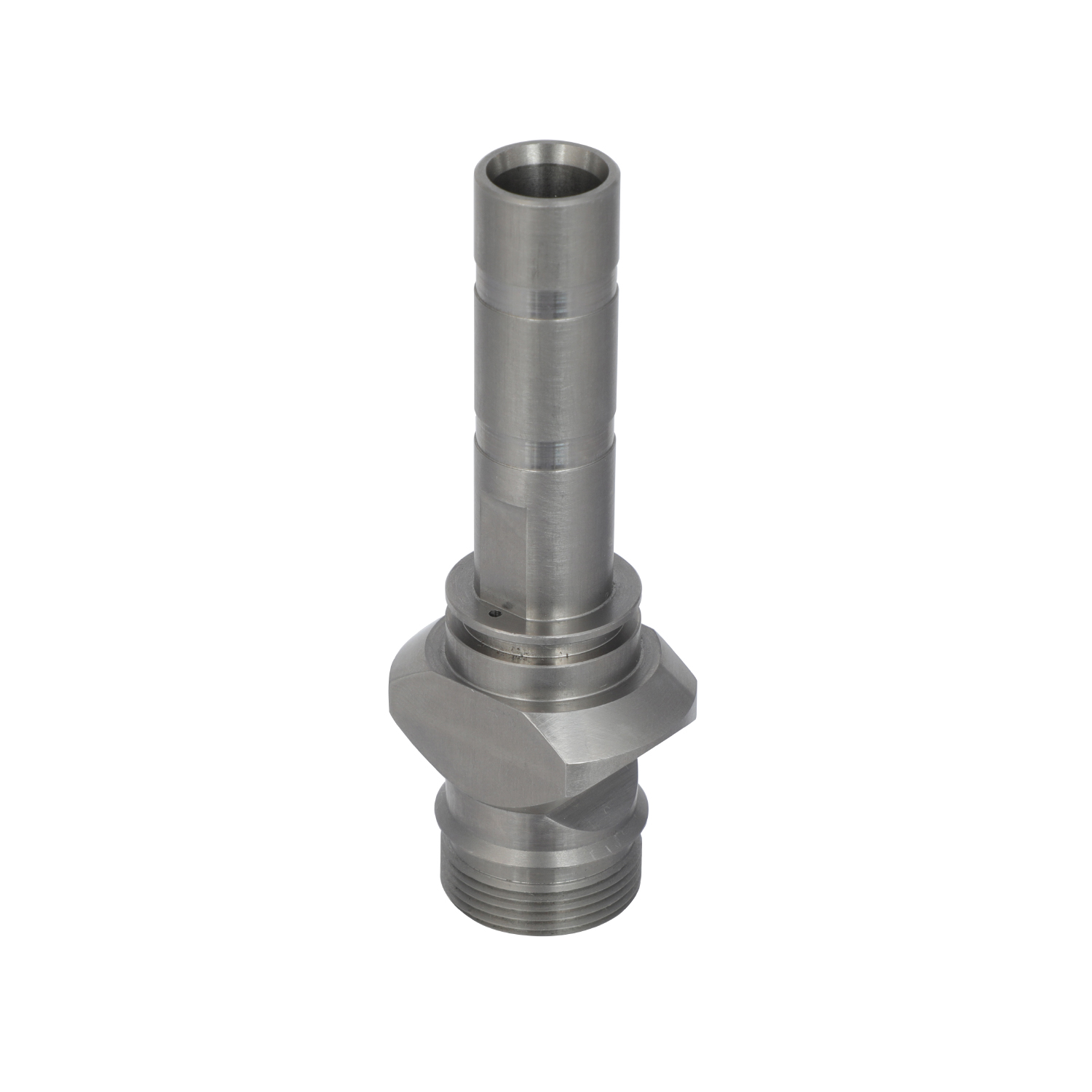

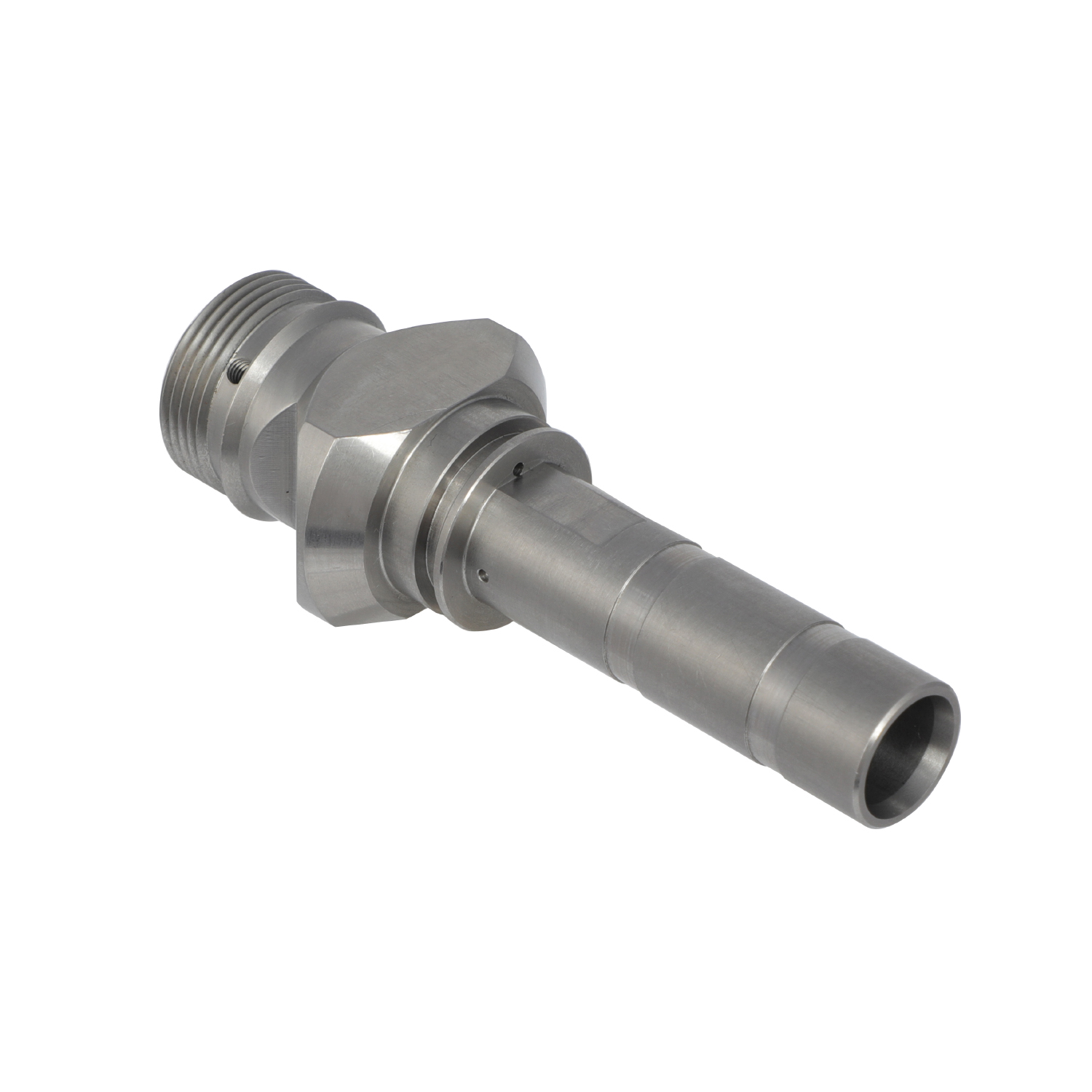

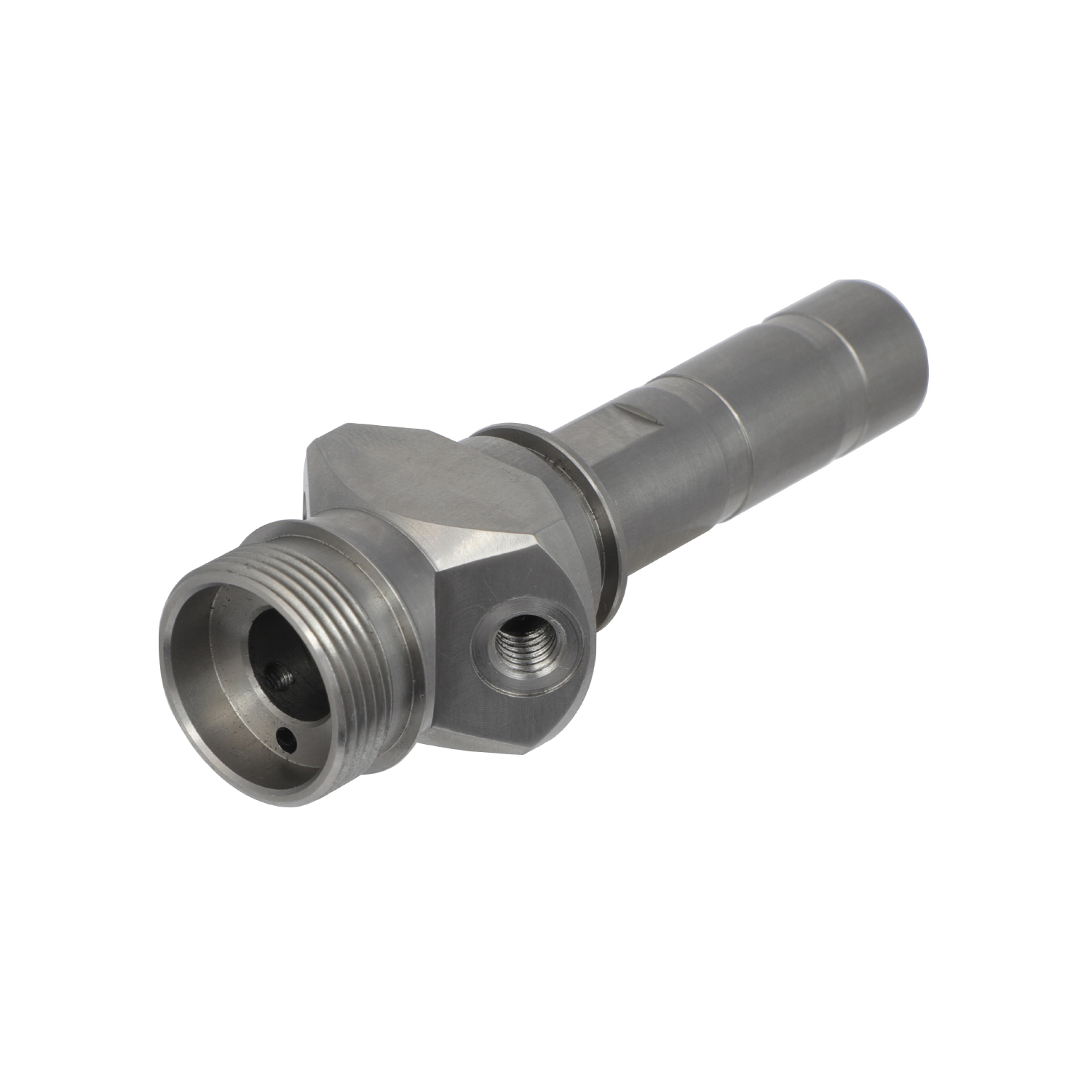

Product Name: High-Precision Hexagonal Threaded Metal Connector

Overview

This product is an industrial-grade metal connector designed for high-pressure and high-corrosion environments in fluid transport systems. Manufactured from high-strength alloy steel and precision CNC-machined, it ensures reliability and durability in complex industrial scenarios. Suitable for applications in petroleum, aerospace, automotive thermal management, and more.


Core Specifications

Parameter	Technical Value	Testing Standard
Material	304 Stainless Steel (UNS S30400)	ASTM A240
Outer Diameter	Φ25.4mm ±0.05mm	ISO 2768
Wall Thickness	2.0mm	GB/T 3091
Thread Type	NPT 1/4"-18 UNF	ASME B1.20.1
Working Pressure	60MPa (static) / 35MPa (dynamic)	ISO 16860
Surface Treatment	Hard Chrome Plating (50μm thickness)	ASTM B695

Design Highlights

Hexagonal Connection
- Cold-forged for 30% higher strength than welded joints
- 12mm hexagonal flats for standard wrench operation
Optimized Thread Interface
- Roller-formed internal threads with IT7 precision
- Nitrided thread roots for 50% better anti-stripping performance
Hollow Cylindrical Structure
- Wall thickness uniformity ±0.03mm
- Inner surface polished to Ra 0.4μm for reduced fluid resistance

Manufacturing Process

Process Step	Technical Focus	Equipment Used
Bar Cutting	Laser length cutting (±0.1mm)	Trumpf TruLaser 5030
Hexagon Forming	Hydraulic cold heading (800 tons)	AIDA HFM-3000
Thread Machining	5-axis CNC turning	DMG MORI CTX Beta 800
Surface Coating	Ion-plated hard chrome	Balzers PVD 300

Application Scenarios

Oil & Gas
- High-pressure valve connectors (temp range: -40℃~200℃)
- Corrosion-resistant piping systems (pH 1-14 compatible)
Automotive
- EV battery cooling line joints
- Engine coolant circulation systems
Aerospace
- Hydraulic servo system fittings (AMS 2750E certified)
- Fuel transport lines (AS9100D compliant)

Quality Certifications

Material: SNI ISO 9001:2015
Process: IATF 16949 (Automotive)
Performance: API 6A (Oil & Gas)

Industry Solutions

Case Study: EV Battery Cooling System

Requirement	Solution	Performance
High-pressure Seal	Hexagon joint + dual O-rings	Zero leakage at 30MPa
Weight Reduction	Hollow design	18% lighter
Corrosion Resistance	Hard chrome + electropolish	Salt spray test ≥1000hrs

Technical Advantages
✅ Patented Technology: Cold heading hexagon forming (Patent No.: ZL2023000987)
✅ Eco-Certified: RoHS 2.0 compliant
✅ Support: CAD model download & 3D print samples available

Technical Support: +86 150-153-26863

Email: cassy@xqdmachining.com

Website: https://xqdmachining.com/index.html
