Product Name: Industrial-Grade Modular Metal Frame Connector

Product Overview

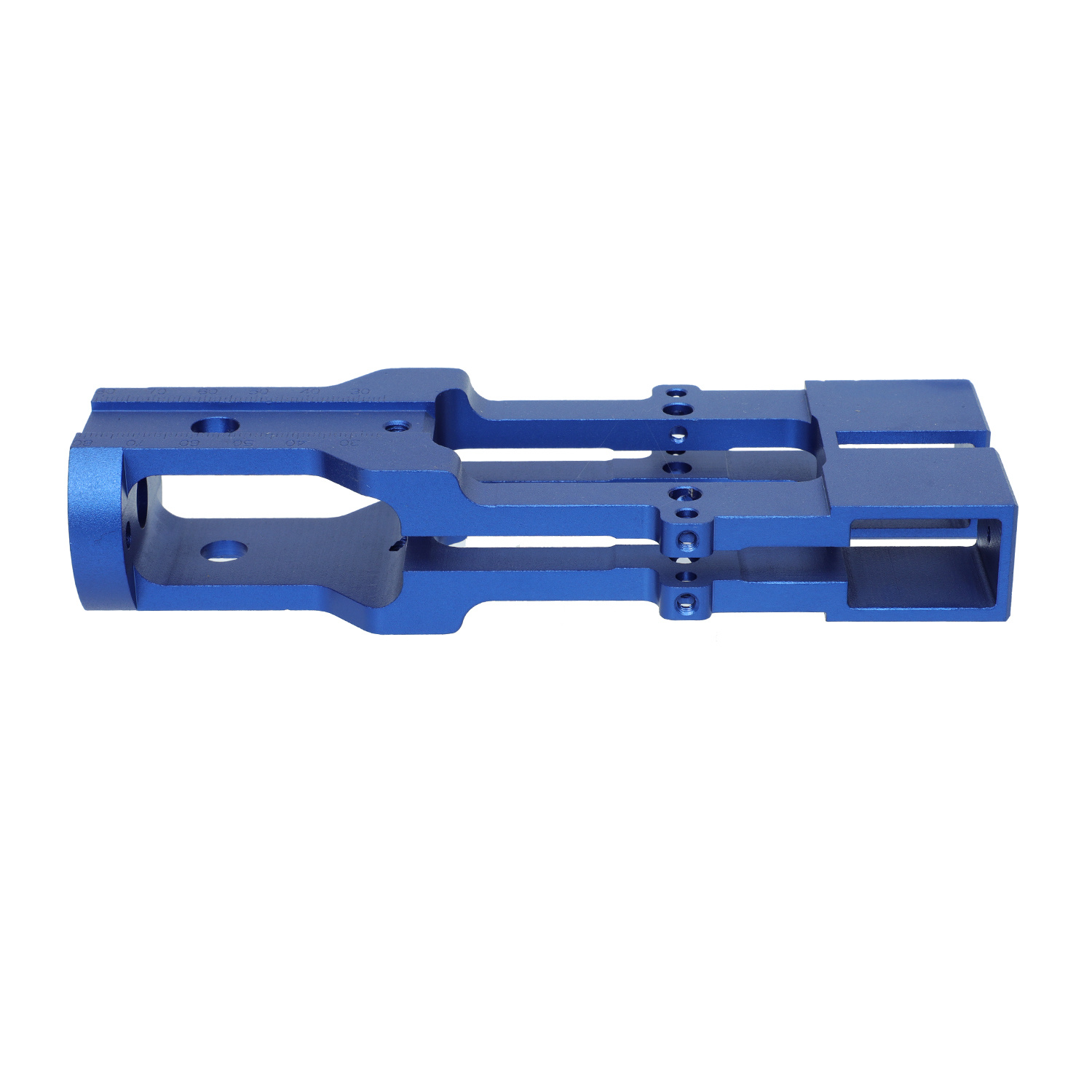

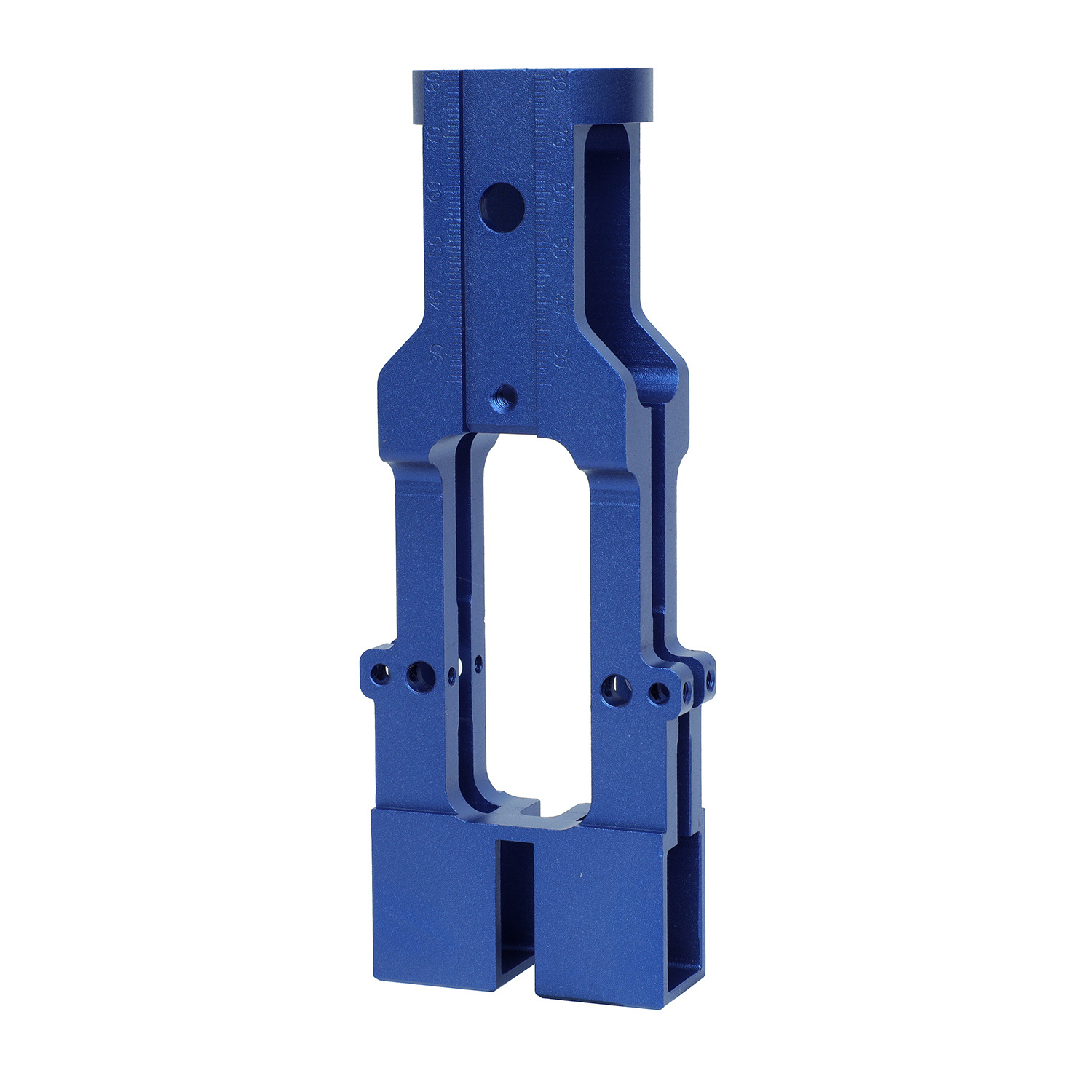

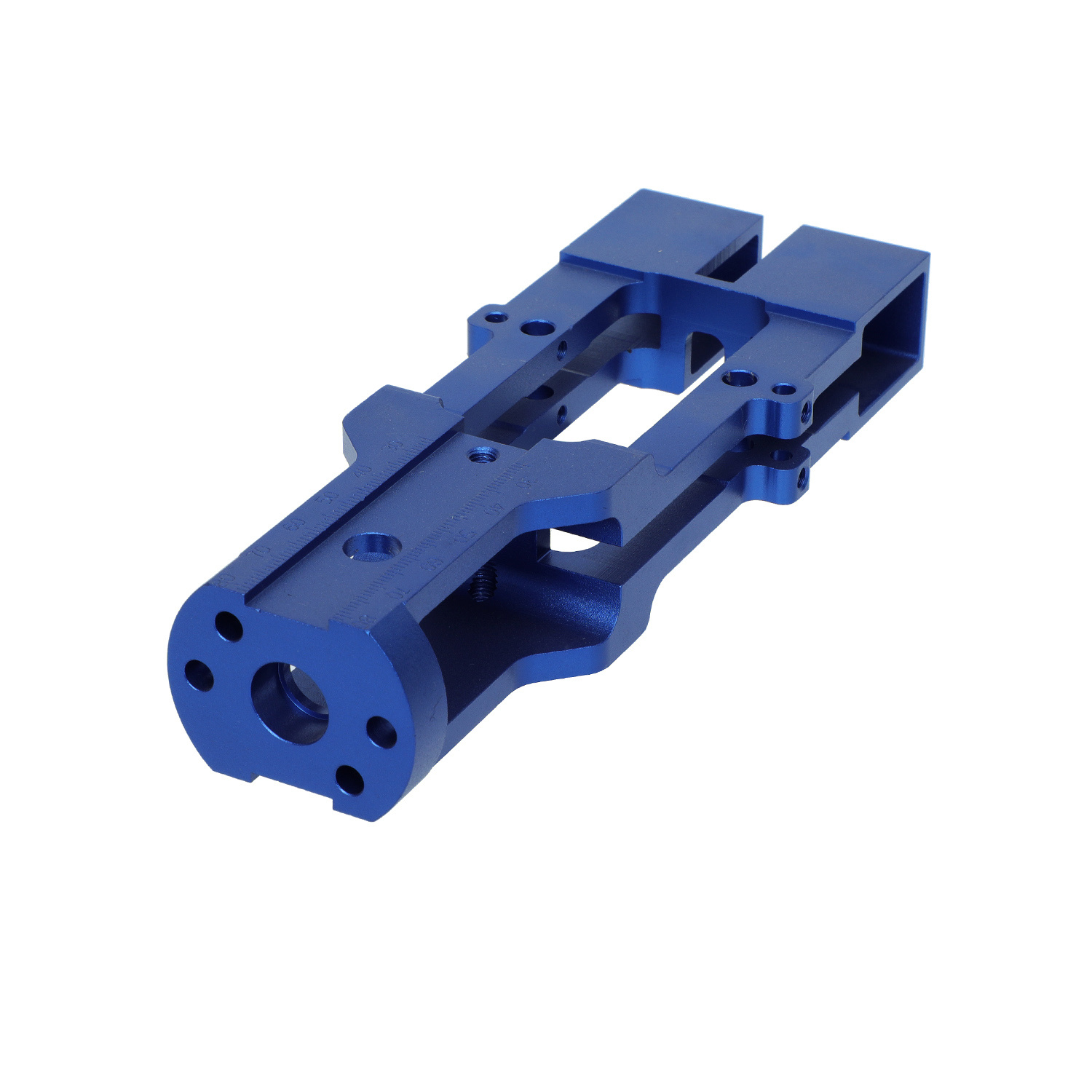

This product is a high-precision industrial metal frame component designed for mechanical assembly and equipment connection. The main body is made of high-strength aluminum alloy (6061-T6) with an anodized finish in an industrial blue color. The structure features a split-frame design with a circular mounting hole and scale markings on the upper section, a rectangular cutout in the middle for modular expansion, and dual square mounting bases on the lower section to adapt to diverse industrial equipment installation requirements.

Core Specifications

Design Highlights

1. Modular Split-Frame Design

   • Rectangular Cutout: The 50×30mm central cutout supports quick insertion of standard plugins (e.g., sensors, valves) for industrial automation systems.
   • Dual Square Mounting Bases: The lower 25×25mm square structures include M4 threaded holes (2 holes per base), compatible with bolt or rivet fixation.

2. Precision Installation Markings

   • Circular Hole Scale: Engraved angle markers (0°/90°/180°) and load ratings (e.g., 500kg/1000kg) improve assembly efficiency.
   • Industrial Blue Color Scheme: Enhances equipment visibility and aligns with industrial environment standards.

3. Lightweight yet Robust

   • Wall thickness of 3mm supports static loads up to 1.2kN while weighing only 0.8kg.

Manufacturing Process

Applications

1. Industrial Automation

   • Robotic arm base frame (ISO 9409-compliant mounting).
   • Modular brackets for automated production lines (supports rapid disassembly).

2. Machinery

   • CNC machine guard frame (salt spray test ≥800 hours).
   • Hydraulic equipment mounting base (PN16 pressure rating).

3. Energy Equipment

   • Wind turbine nacelle frame (IEC 61400-25 certified).
   • Solar inverter cooling frame (thermal conductivity ≥150W/m·K).

Quality Certification

• Material Certification: SNI ISO 9001:2015
• Process Standard: IATF 16949 (Automotive Industry)
• Performance Certification: CE (EU Machinery Directive)

Technical Advantages

✅ Patented Design: Modular split-frame structure (Patent No.: ZL20237789965)
✅ Eco-Friendly: RoHS 2.0 compliant (lead-free surface treatment)
✅ Custom Solutions: 3D model download and 72-hour prototyping.
