Product Name: Gold-Plated Multi-Port Mechanical Connector

Product Overview

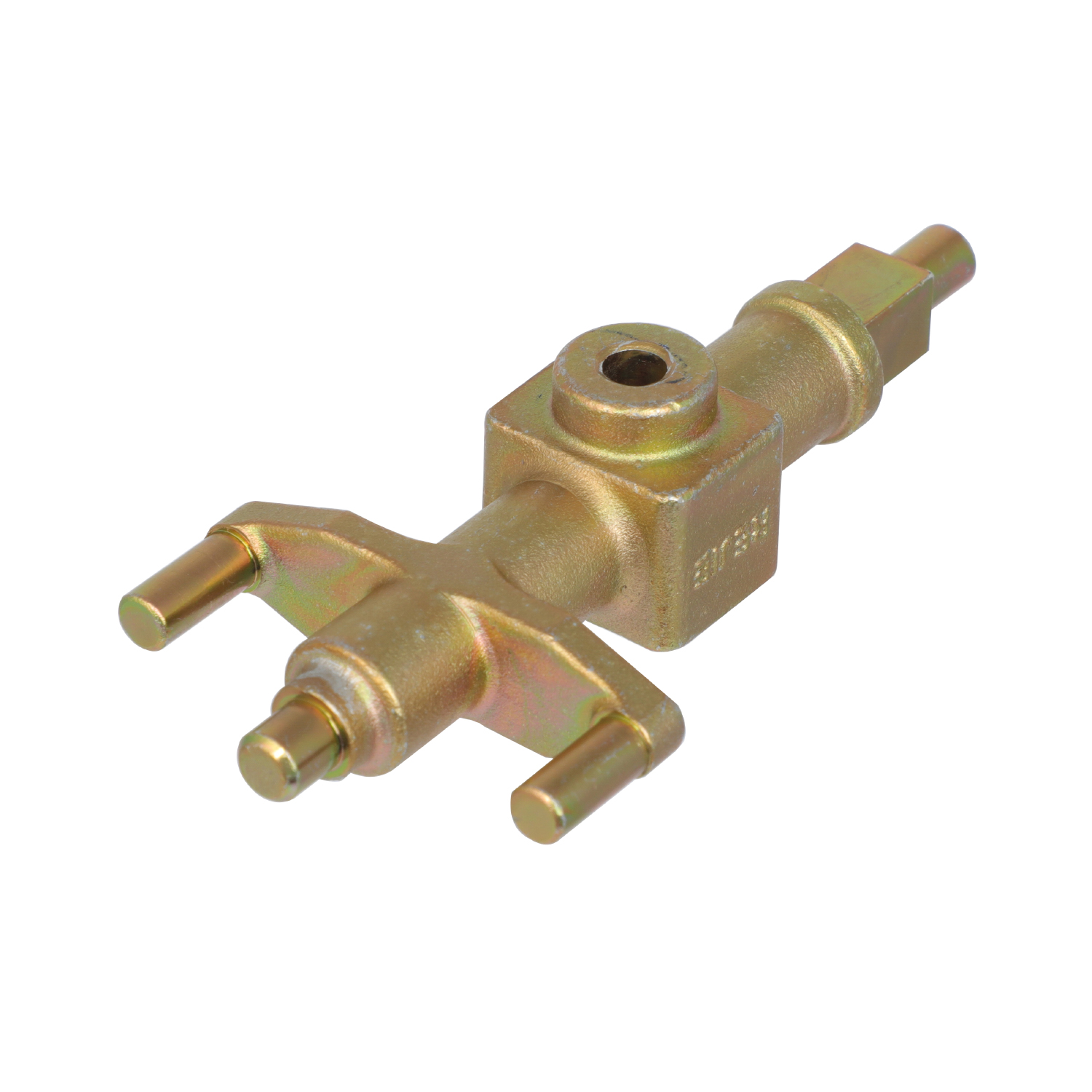

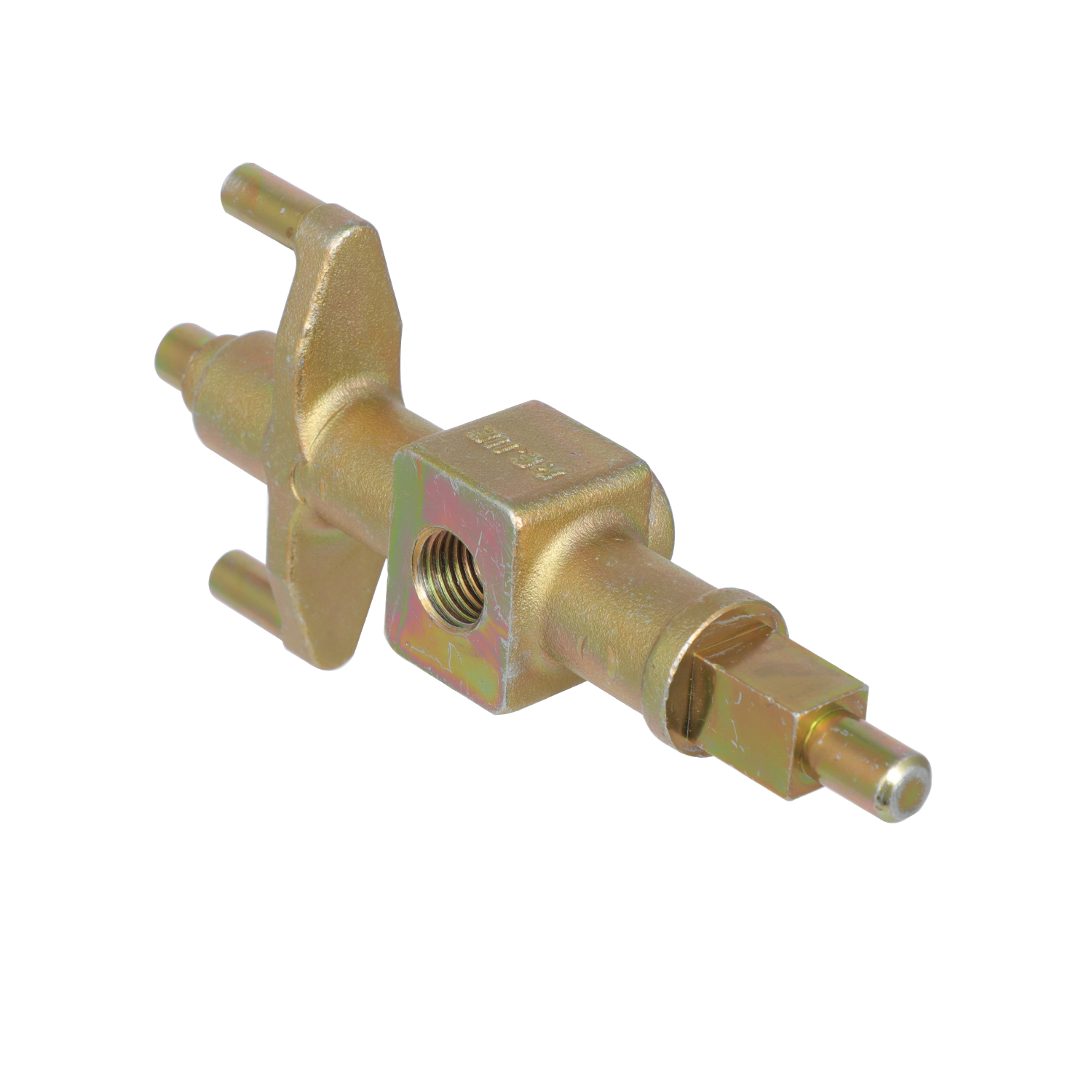

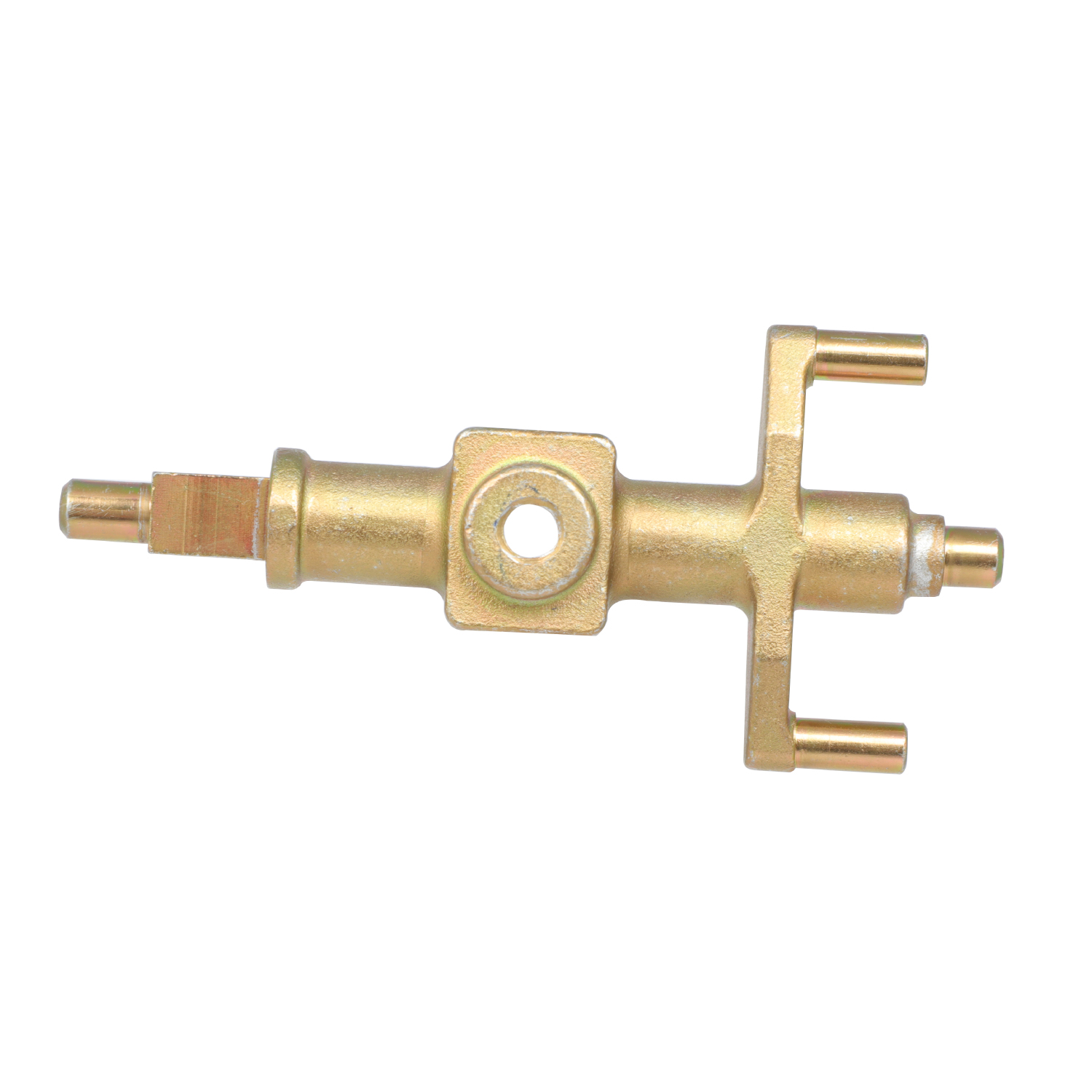

This product is a gold-colored metallic mechanical component made of brass or a similar alloy. The main body features a central rectangular block with a top-mounted hole, surrounded by multiple cylindrical protrusions. Two horizontal arms extend from the bottom, each terminating in a cylindrical pin, while a longer cylindrical extension extends from the top right. The component is mounted on a plain white background, highlighting its precision-machined smooth surface and industrial aesthetic. Designed for high-precision mechanical applications.

Core Parameters

Design Highlights

1. Multi-Port Connectivity

   • 3× Cylindrical Protrusions: Φ6mm holes support M6 countersunk screws (spacing tolerance ±0.1mm).
   • Top Right Extension: Φ12mm cylindrical end with square profile enhances torsional strength.

2. Material & Engineering

   • Brass Alloy H62: Balances conductivity and wear resistance (tensile strength ≥350MPa).
   • Surface Polish: Smooth finish (Ra ≤0.8μm) reduces friction (μ ≤0.12).

3. Functional Versatility

   • Rectangular block accommodates sensor mounting or cable routing.
   • Horizontal arms enable multi-directional alignment.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust protrusion dimensions or extension length via 3D models (STEP format).
2. Material upgrades (e.g., phosphor bronze for enhanced durability).
3. Surface treatments (nickel plating/anodizing).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
