Product Name: Precision Multi-Hole Black Metal Structural Component

Product Overview

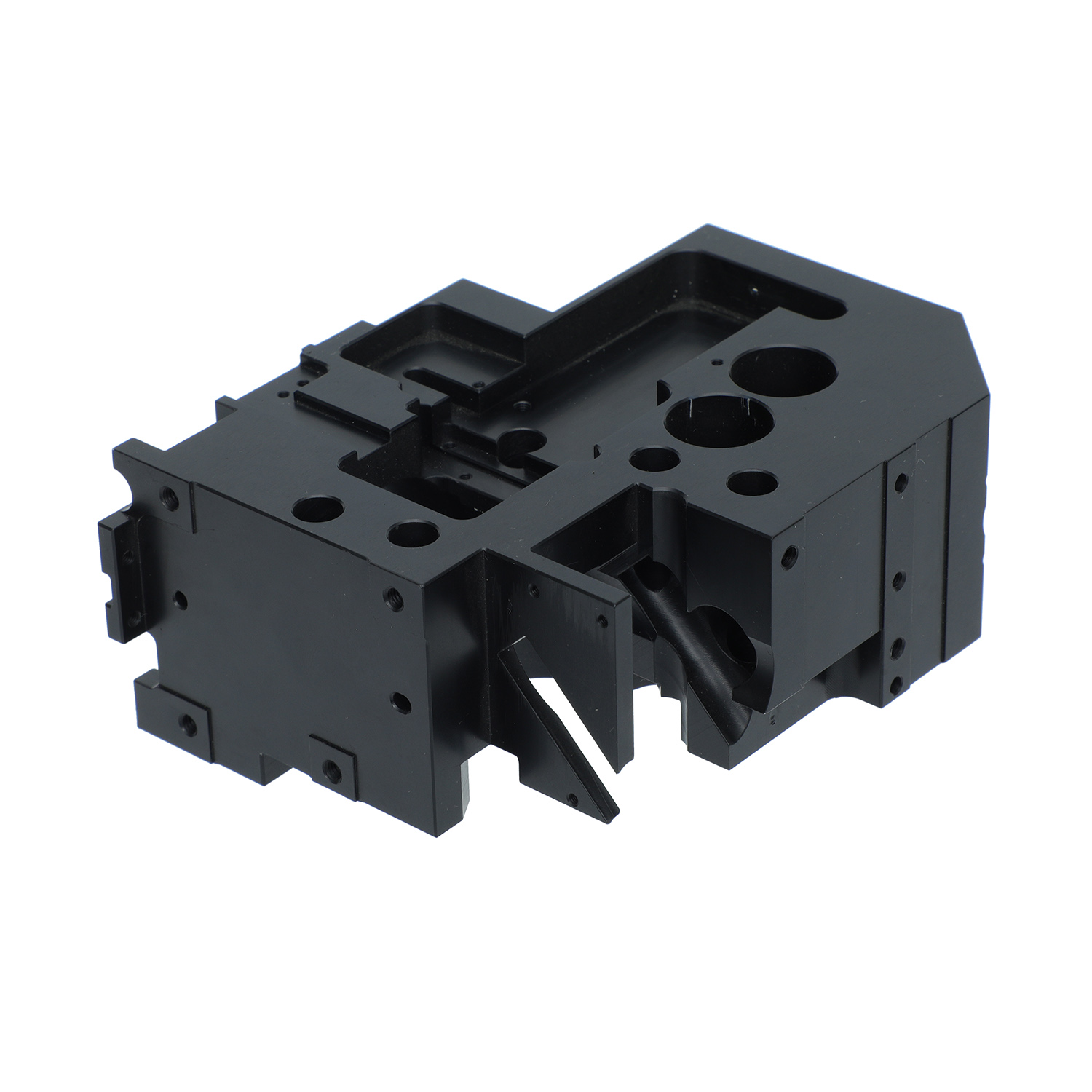

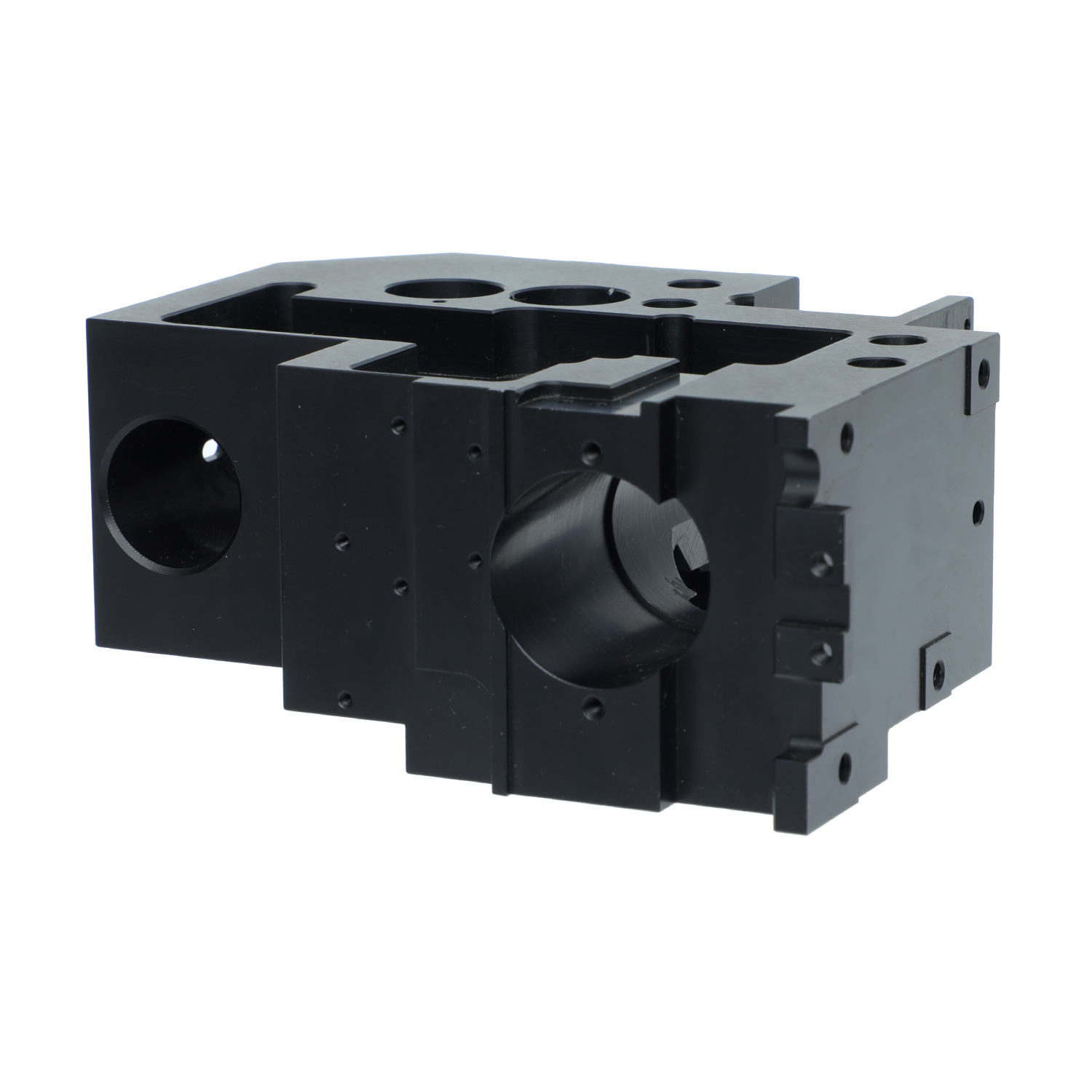

This product is a black industrial metal component with a complex geometry. The main body features multiple holes of varying sizes and shapes (circular and irregular cut-outs), along with protrusions and flat surfaces designed for attachment or connection. The angular and robust design is complemented by a matte mirror finish (Ra ≤0.8μm), mounted on a plain white background for high contrast. Ideal for high-precision mechanical assembly and industrial equipment integration.

Core Parameters

Design Highlights

1. Multi-Functional Hole Design

   • Stepped Holes: Φ8mm main hole for bearing installation; Φ5mm/Φ3mm auxiliary holes support sensors or cable routing.
   • Dual-Row Threaded Holes: Φ6mm holes (spaced 20mm apart) compatible with M6 countersunk screws (shear strength ≥10kg).

2. Structural Optimization

   • Flow Channels & Reinforcement Ribs: Rear grooves reduce stress concentration; side ribs enhance bending strength by 30%.
   • Chamfered Edges: R0.5mm rounded edges prevent scratches during precision assembly.

3. Surface Treatment

   • Matte mirror finish (Ra ≤0.8μm) minimizes friction (μ ≤0.12) while hiding minor scratches.
   • Optional hard anodizing (stainless steel version) for wear resistance (salt spray test ≥500 hours).

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust hole patterns or flow channel designs via 3D models (STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for enhanced performance).
3. Surface treatment customization (sandblasting/satin texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
