Product Name: L-Shaped Industrial Metal Component with Hook Feature

Product Overview

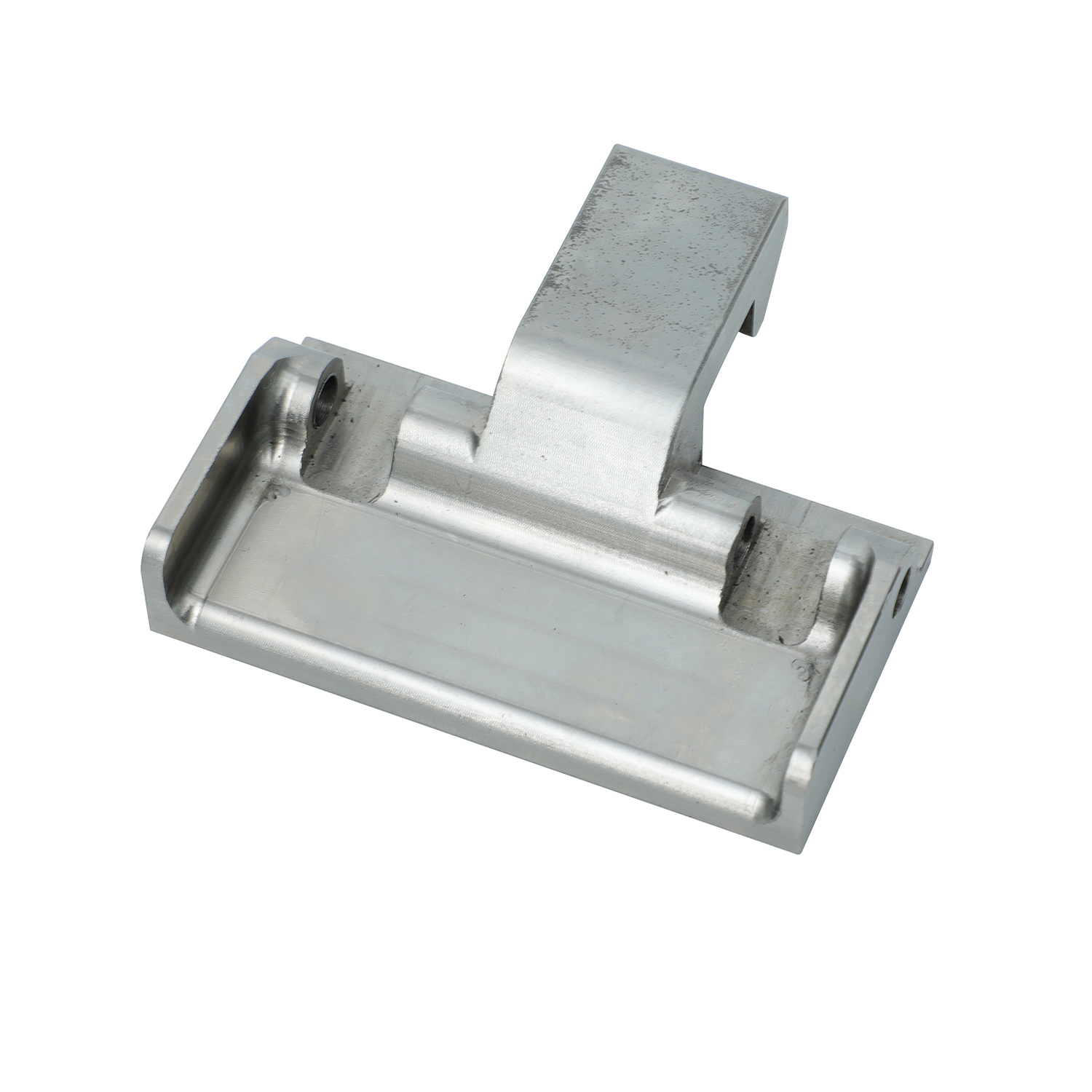

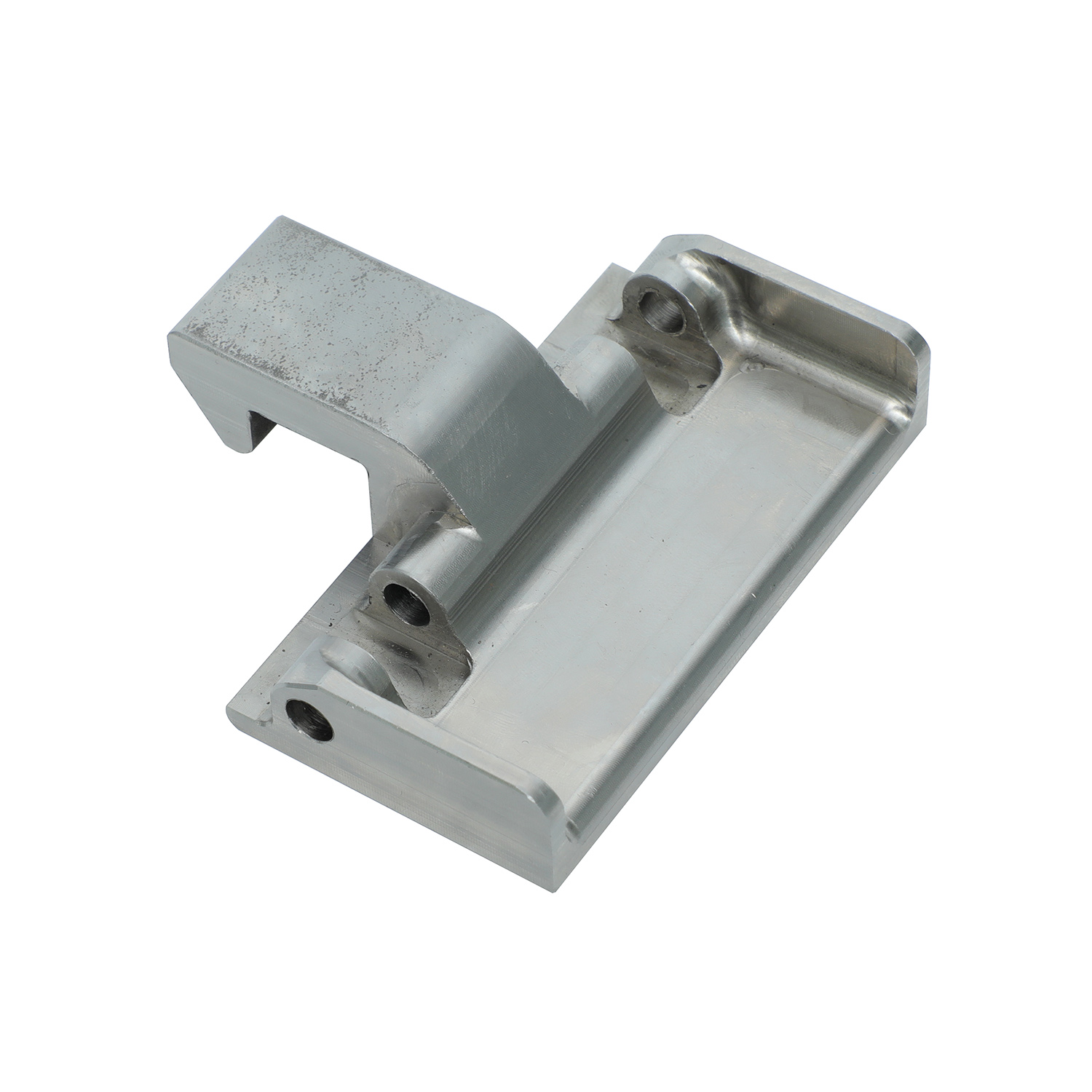

This product is a silver-gray metallic L-shaped component with a polished surface showing mild wear. The main body features a right-angle "L" shape, with one side having a protruding hook-like structure and the other side a flat plate. Multiple circular holes (Φ5mm diameter) are evenly distributed across the component for fastening or connection purposes. The smooth, reflective surface indicates high-quality material durability, suitable for industrial or mechanical applications.

Core Parameters

Design Highlights

1. Functional Structure

   • Hook Design: Protruding hook (10mm height) for secure cable or tool attachment.
   • L-shaped Geometry: Enhances stability during multi-directional installation.

2. Material & Durability

   • Stainless Steel 304: Corrosion-resistant and high-strength (tensile strength ≥520MPa).
   • Surface Polish: Smooth finish (Ra ≤0.8μm) reduces friction and wear.

3. Assembly Compatibility

   • Φ5mm holes support M5 countersunk screws (shear strength ≥8kg).
   • Flat plate surface adapts to standard rail or bracket mounting.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust hook dimensions or hole patterns via 3D models (STEP format).
2. Material upgrades (e.g., aluminum alloy 6061 for lightweight applications).
3. Surface treatment customization (powder coating/anodizing).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
