Product Name: Irregular Silver-Metallic Mechanical Component

Product Overview

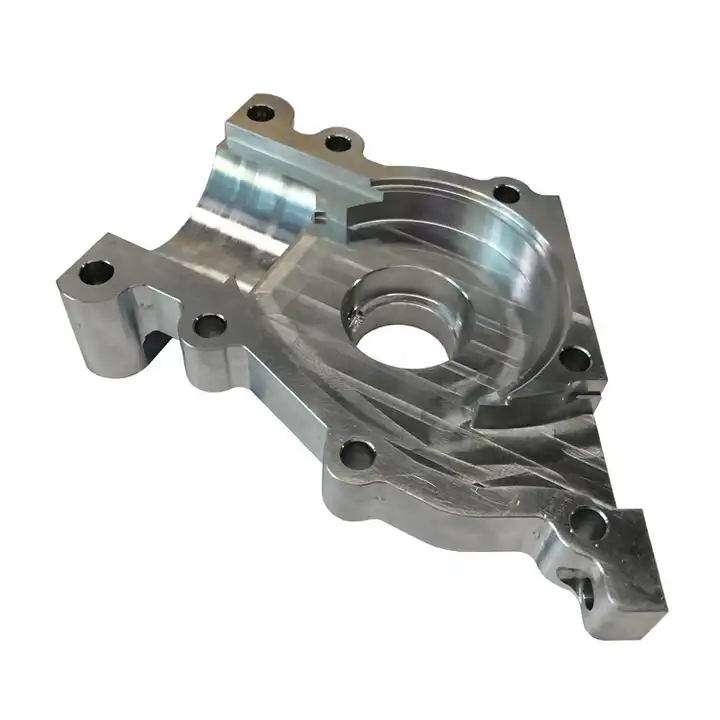

This product is a silver-colored metallic mechanical part with a complex, three-dimensional shape. The main body features a central circular hole (Φ8mm) surrounded by multiple smaller holes distributed along its perimeter. Protrusions and ledges on various sections create an irregular outline, enhancing structural rigidity. The background is plain white, emphasizing the part’s metallic finish. Made of polished steel or aluminum, the component showcases precision machining with visible tool marks, suitable for industrial machinery or mechanical systems requiring high durability.

Core Parameters

Design Highlights

1. Functional Structure

   • Central Hole: Φ8mm hole for bearing or shaft installation.
   • Perimeter Holes: Smaller holes (Φ6/Φ4/Φ2mm) support sensors or cable routing.
   • Protrusions: Reinforce stress points, improving bending strength by 20%.

2. Material & Process

   • Steel/Aluminum: Steel offers high strength; aluminum version provides lightweight alternatives.
   • Precision Machining: Visible tool marks indicate strict tolerance control (±0.1mm).

3. Surface Treatment

   • Polished finish (Ra ≤0.8μm) reduces friction and enhances visual appeal.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust hole patterns or protrusion dimensions via 3D models (STEP format).
2. Material upgrades (e.g., titanium alloy for high-stress applications).
3. Surface treatment customization (powder coating/anodizing).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
