Product Name: Industrial Gear and Shaft Assembly

Product Overview

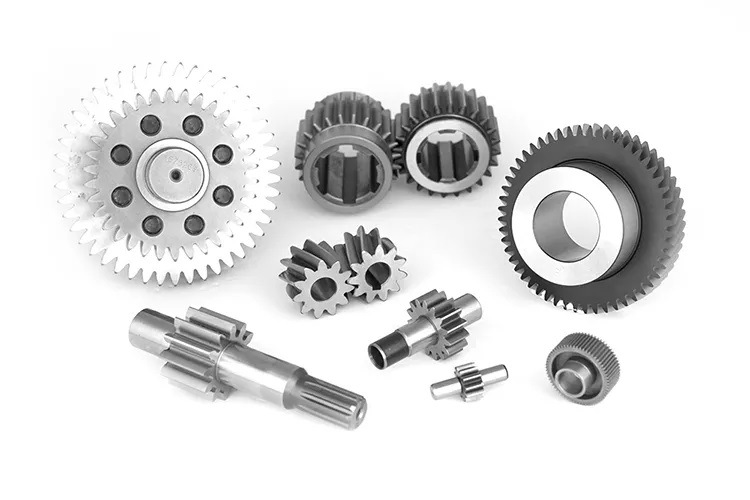

This product features a collection of silver metallic gears and shafts arranged on a white background. The components include various types such as large spur gears, smaller pinion gears, and internal meshing gears. Some gears are mounted on metal shafts, while others are standalone. The shiny silver finish highlights their industrial and mechanical nature. The scattered arrangement ensures clear visibility of each component, showcasing diverse designs and structures.

Core Parameters

Design Highlights

1. Functional Design

   • Gear Types:
     • Spur Gears: For parallel-axis transmission, tooth surface hardness ≥HRC50 (carburizing and quenching process).
     • Pinion Gears: Compact design for high-speed applications.
     • Internal Meshing Gears: Optimized for compact spatial arrangements.
   • Shaft Integration: Φ8mm–Φ20mm shaft holes compatible with standard transmission shafts; shaft sleeves lined with PTFE (friction coefficient μ ≤0.08).

2. Material & Process

   • Alloy Steel: High fatigue strength (σ-1 ≥300MPa) for heavy-duty applications.
   • Anodized Coating: Silver-gray finish enhances wear resistance (salt spray test ≥500 hours).

3. Assembly Compatibility

   • Gears and shafts use interference fit (tolerance H7/h6); shaft ends feature ISO-standard keyways.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust gear module, tooth count, or shaft diameter via 3D models (STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
3. Surface treatment customization (hard anodizing/nitriding).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
