Product Name: Dual-Cylinder Mechanical/Airsoft Connector Assembly

Product Overview

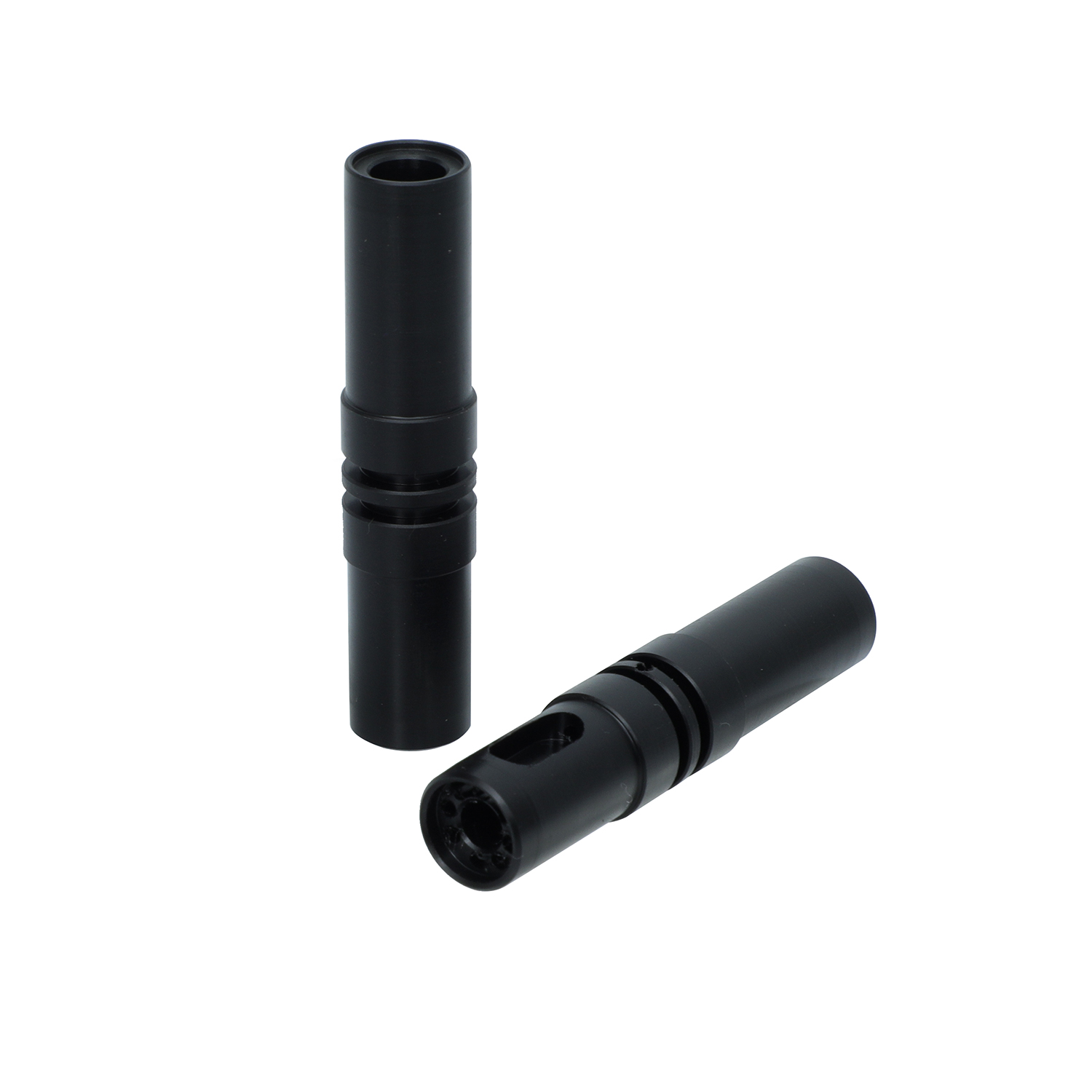

This product features two black cylindrical components designed for mechanical or airsoft applications. Both cylinders have a sleek matte finish and are mounted on a plain white background. The vertical cylinder has two circumferential grooves near its center, while the horizontal cylinder includes an additional irregularly shaped port near one end. The minimalist design emphasizes functionality, with a monochromatic color scheme highlighting the industrial aesthetic.

Core Parameters

Design Highlights

1. Functional Design

   • Vertical Cylinder Grooves: Dual circumferential grooves (depth 2mm) for heat dissipation or bayonet locking, enhancing assembly stability.
   • Horizontal Cylinder Port: Front-end Φ8mm port compatible with standard pins or bolts; 4×Φ3mm holes support sensor or cable mounting.

2. Material & Process

   • Material Choice: Aluminum Alloy 6061 (lightweight, corrosion-resistant); stainless steel 304 version available for enhanced durability.
   • Surface Treatment: Matte mirror finish reduces friction (μ ≤0.12) while hiding minor scratches.

3. Structural Optimization

   • Horizontal cylinder port area reinforced with increased wall thickness (3mm → 5mm), improving bending strength by 35%.
   • Groove edges feature R0.5mm fillets to minimize stress concentration.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust groove depth/port size via 3D models (STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
3. Surface treatment customization (sandblasting/anodizing/satin texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 standards. Free DFM analysis provided.
