Product Name: Black Circular Lens Adapter/Red Light Shield

Product Overview

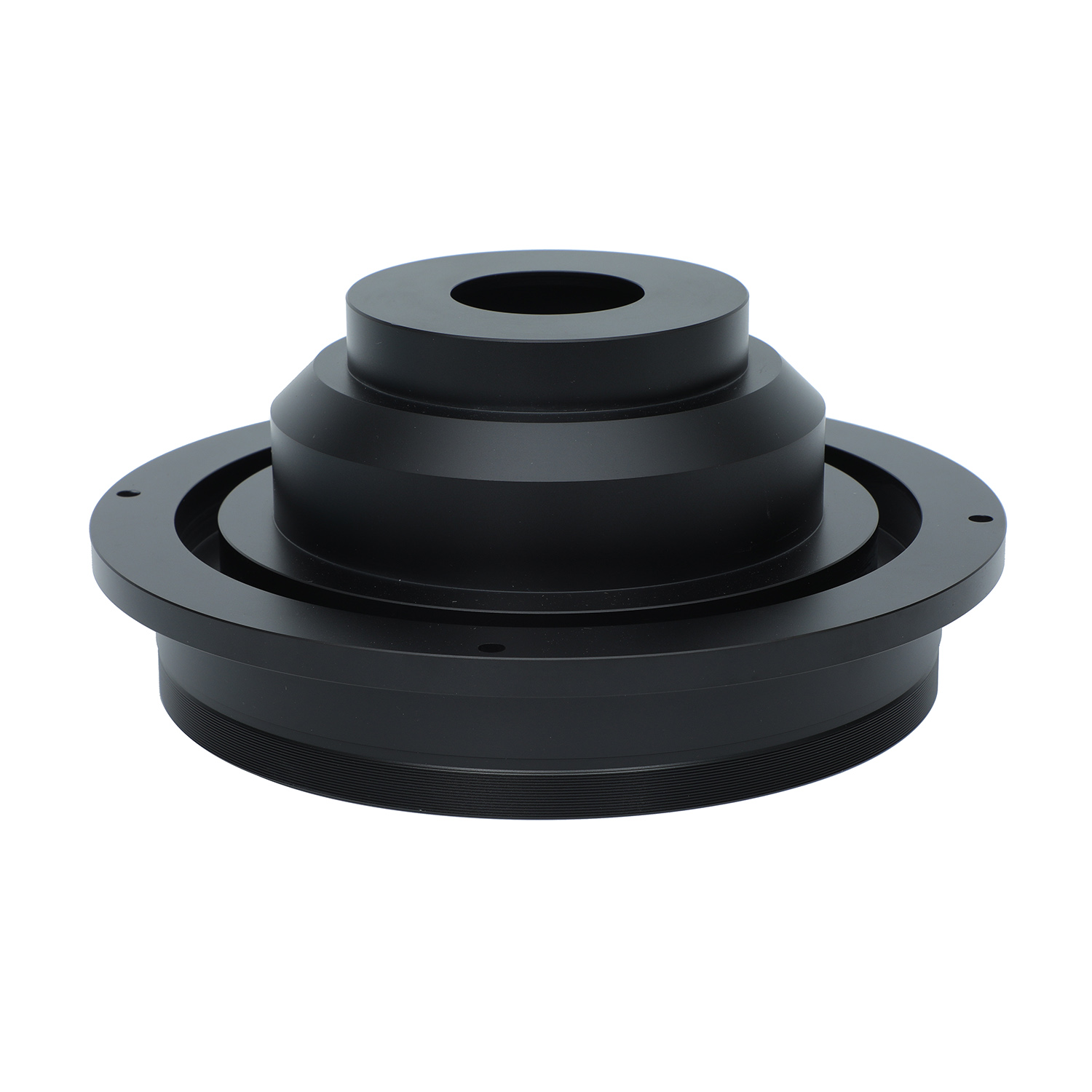

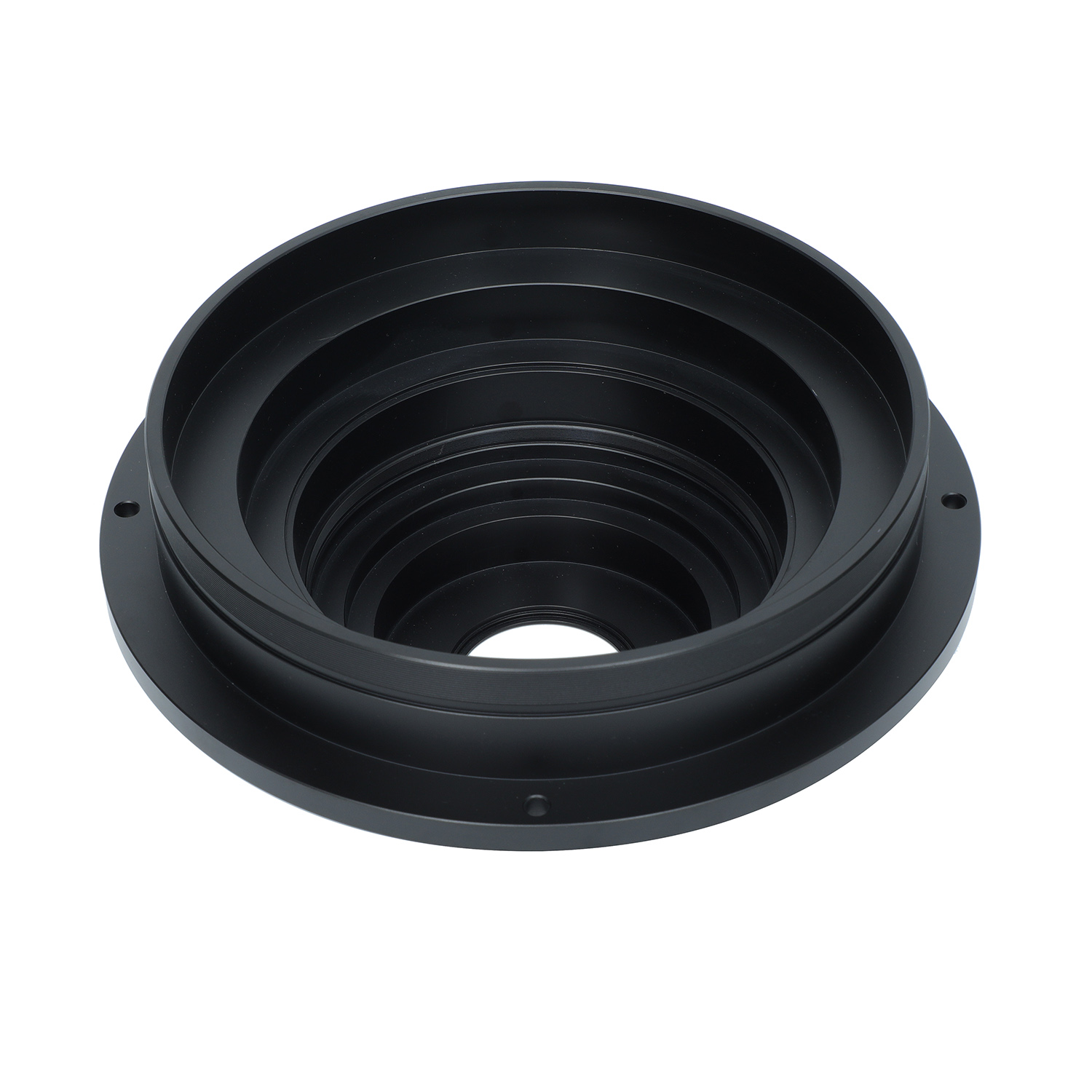

This product is a black circular lens adapter or red light shield, featuring a smooth mirror-polished surface with concentric circular groove design and a central circular opening. Symmetrically distributed small holes on the edge are used for fixation or installation. The minimalist design, set against a pure white background, highlights its industrial texture, making it suitable for photography equipment, optical instruments, or industrial inspection scenarios.

Core Parameters

Design Highlights

Functional Structural Design

• Concentric Circular Grooves: Enhances structural rigidity, compatible with multi-specification lens threads (e.g., M42/M58), and anti-slip performance (friction coefficient μ ≥0.5).
• Central Opening: Precisely matches lens aperture (e.g., Φ25mm), ensuring optical focus accuracy.
• Symmetric Fixing Holes: Φ3–Φ5mm holes support screw or quick-release buckle installation (shear strength ≥5kg).

Material & Process Compatibility

• Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant, ideal for precision optical devices. Stainless Steel 304 version available for enhanced rust resistance.
• Mirror Polishing: Reduces stray light reflection, improves imaging clarity (surface roughness Ra ≤0.8μm).

Mechanical Optimization

• Groove edges feature R0.3mm fillet transitions to disperse stress concentration and prevent deformation during long-term assembly.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust groove depth, central aperture, or hole distribution (requires 3D model in STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
3. Surface treatment customization (matte/anodizing/brushed texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
