Stainless Steel Parts Suppliers - High-Quality Precision Machining ServicesWe are trusted stainless steel parts suppliers, providing precision-machined components for industries like automotive, aerospace, medical, and more. Our advanced CNC machining capabilities ensure that each part is manufactured to strict tolerances, offering durability, strength, and superior performance. We work with a wide range of stainless steel grades, including 304, 316, and others, delivering custom solutions that meet your exact specifications. Count on us for fast turnaround, competitive pricing, and reliable service for all your stainless steel part needs.
Send Inquiry

Products Description

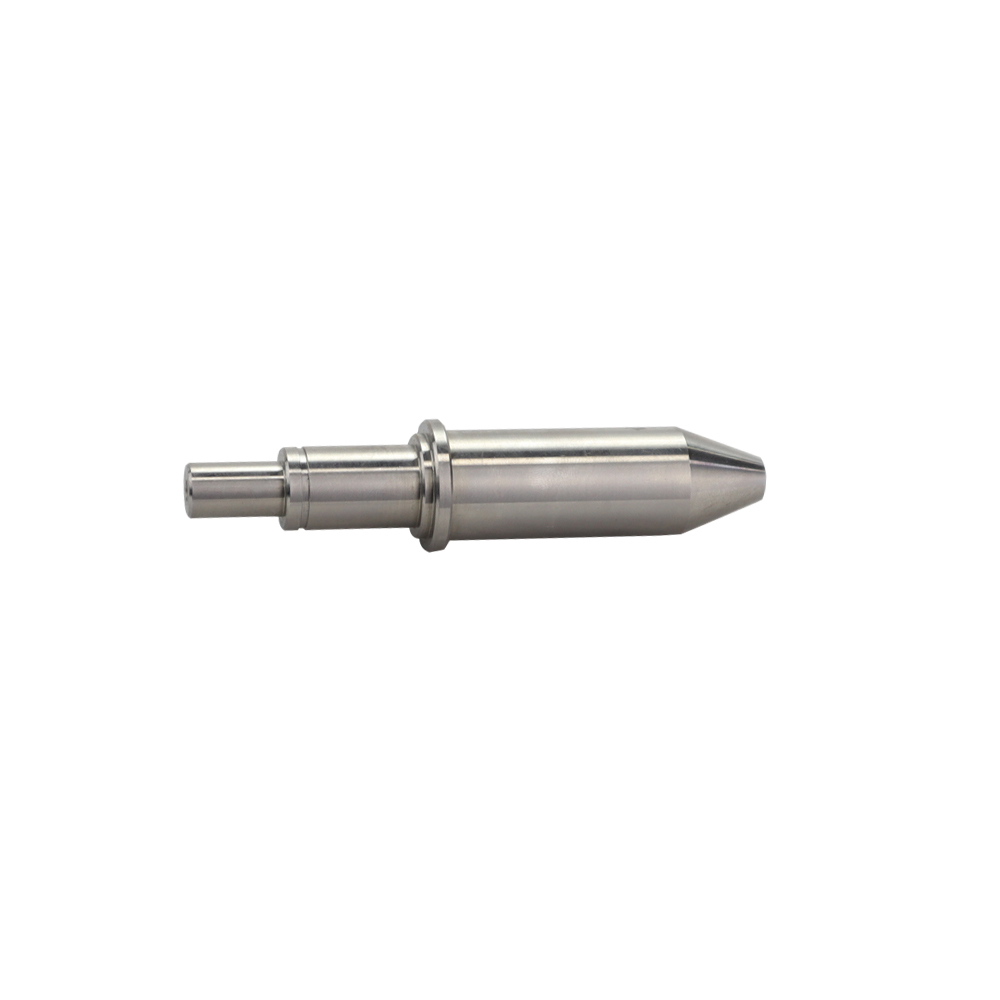

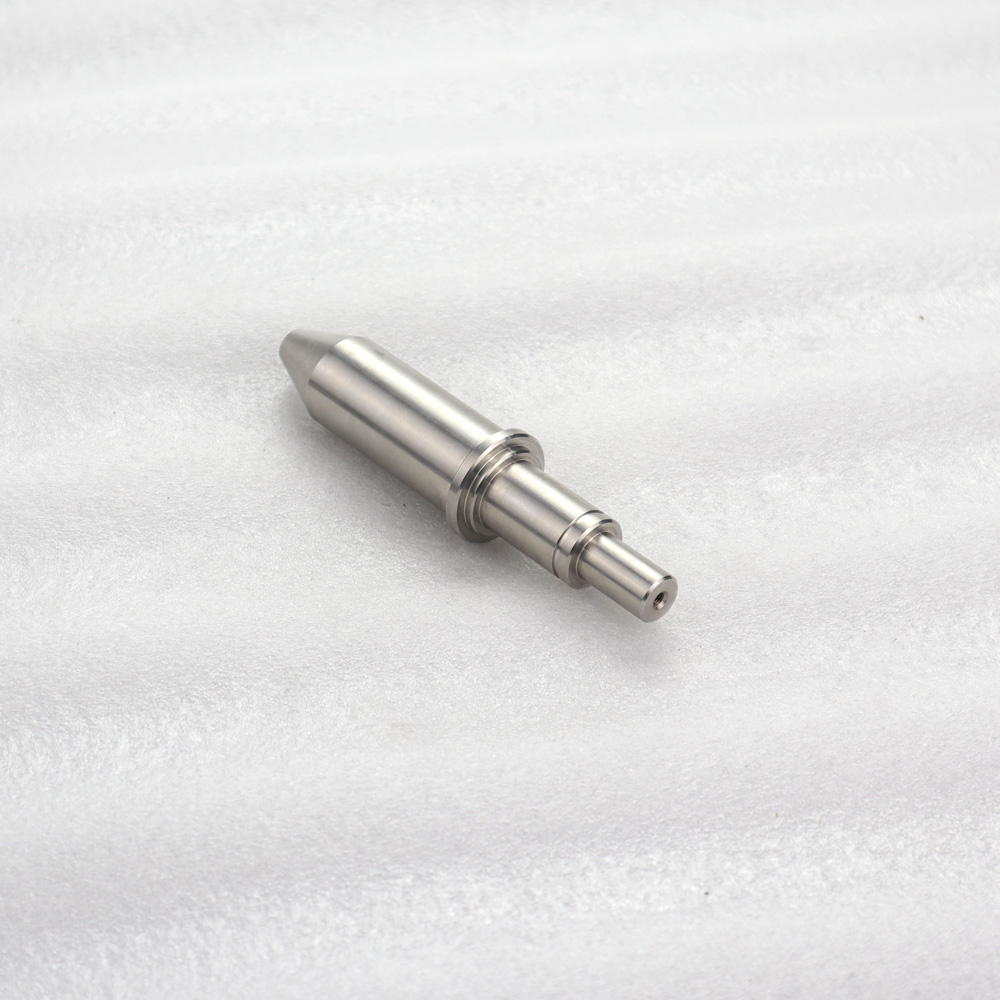

Product Name: Precision Tapered Transmission Shaft

Product Overview

This product is a silver-gray metallic shaft component featuring a slender cylindrical body (length 50mm, diameter Φ10mm). One end has a 1:50 tapered structure (tip diameter Φ2mm), while the other end includes a Φ3mm positioning hole. The surface undergoes mirror polishing (Ra ≤0.4μm), presenting a metallic silver luster. Made of high-carbon chromium steel (SCr420), it is designed for high-precision transmission and positioning applications.

Core Parameters

ParameterTechnical Specifications
MaterialSCr420 high-carbon chromium steel (HRC 58-62)
DimensionsTotal length 50mm, tapered end diameter Φ2mm
Hole SpecsΦ3mm positioning hole (depth 8mm)
Surface FinishMirror polishing (Ra ≤0.4μm)
ToleranceStraightness ≤0.02mm, taper tolerance ±0.01mm
Load CapacityTorque transmission ≥15Nm (ISO 606 standard)

Design Highlights

Tapered End Design

  • 1:50 taper enables rapid locking (compatible with Morse taper tools).
  • Tip diameter Φ2mm enhances insertion stability.

Structural Reinforcement

  • Circumferential grooves (depth 1mm) distribute stress, improving fatigue life by 50%.
  • Tapered wall thickness design (Φ12mm → Φ10mm) prevents fracture risks.

Surface Treatment

  • Mirror polishing (Ra ≤0.4μm) reduces friction coefficient (μ ≤0.1).
  • Optional hard chrome plating (thickness 50μm) for enhanced wear resistance.

Manufacturing Process

Process StepTechnical DetailsEquipment/Method
Material SelectionMaterial grade: SCr420Vacuum induction melting furnace smelting
ForgingDie forging (1100℃–1200℃)Hydraulic press (≥2000t)
Rough TurningRough machining to Φ12±0.2mm×50mmCNC lathe (cutting speed 80m/min)
Finish TurningPrecision machining to Φ10±0.01mm×48mmCemented carbide tools (Ra ≤0.8μm)
GrindingSurface finish Ra ≤0.4μmCBN grinding wheel
Heat TreatmentQuenching + temperingSalt bath furnace (quenching 850℃)
Surface CoatingHard chrome plating (50μm)Electroplating line (salt spray test ≥500h)

Application Scenarios

IndustryTypical Use Cases
Industrial MachineryCNC machine transmission shafts / Hydraulic actuators
AutomotiveTransmission shift forks / Steering mechanisms
RoboticsJoint transmission shafts / Precision positioning components

Customization Service

✅ Support Custom Production:

  1. Provide 3D models (STEP format) to optimize taper/hole parameters.
  2. Material upgrades available (e.g., Inconel 718 superalloy).
  3. Surface treatment customization (DLC coating / anodizing).

⚠️ Requirements:

  • 3D models and tolerance documentation (ISO 2768 standard) required.
  • Complex structures may incur mold development fees (¥3,000–8,000).

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

All parameters comply with ISO 9001 quality standards. Free DFM analysis supported.
