Products Description

Product Name: Industrial-Grade I-Beam Nylon Connecting Component

Product Overview

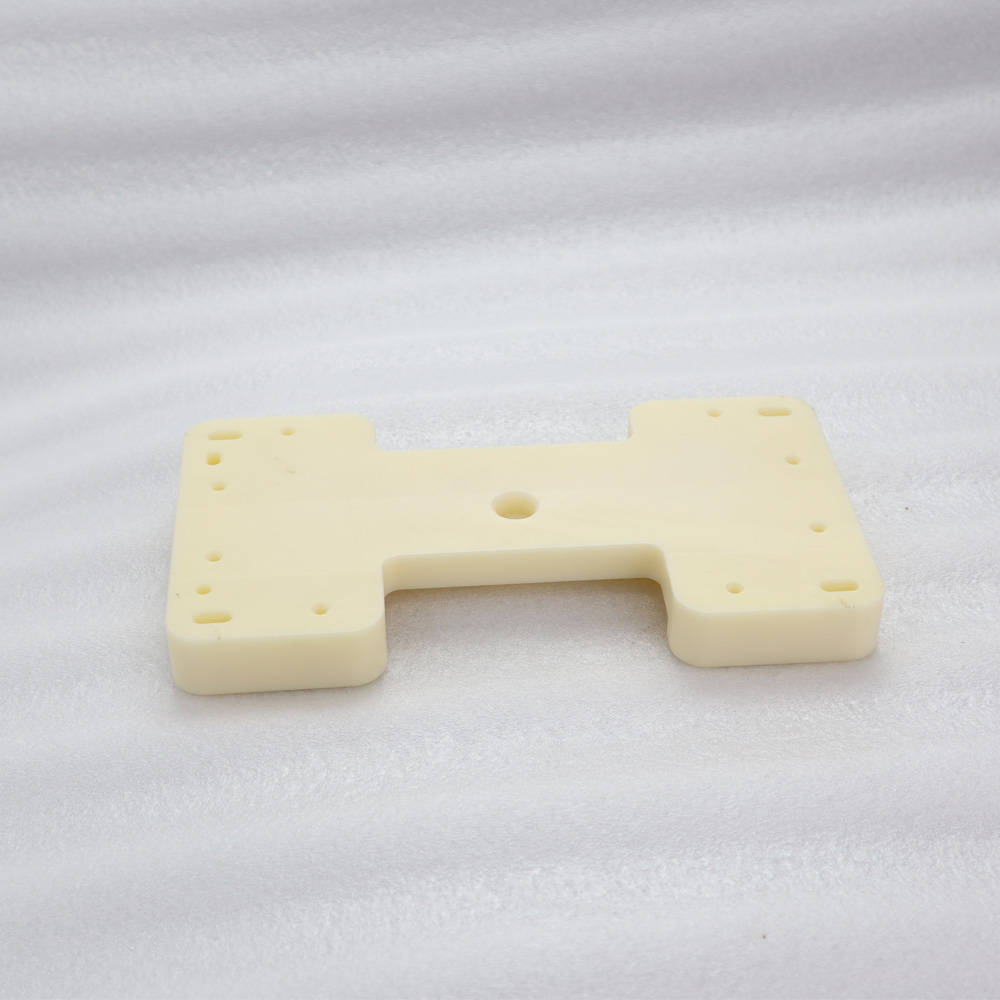

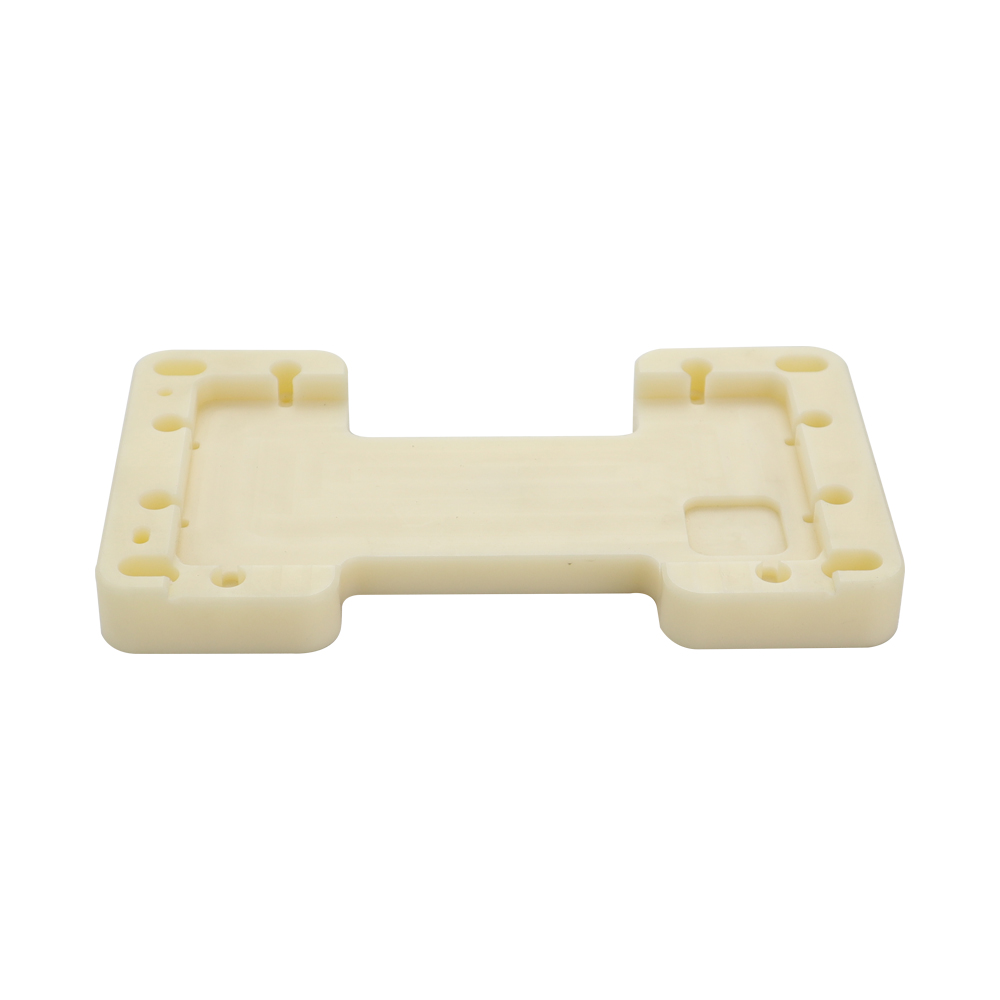

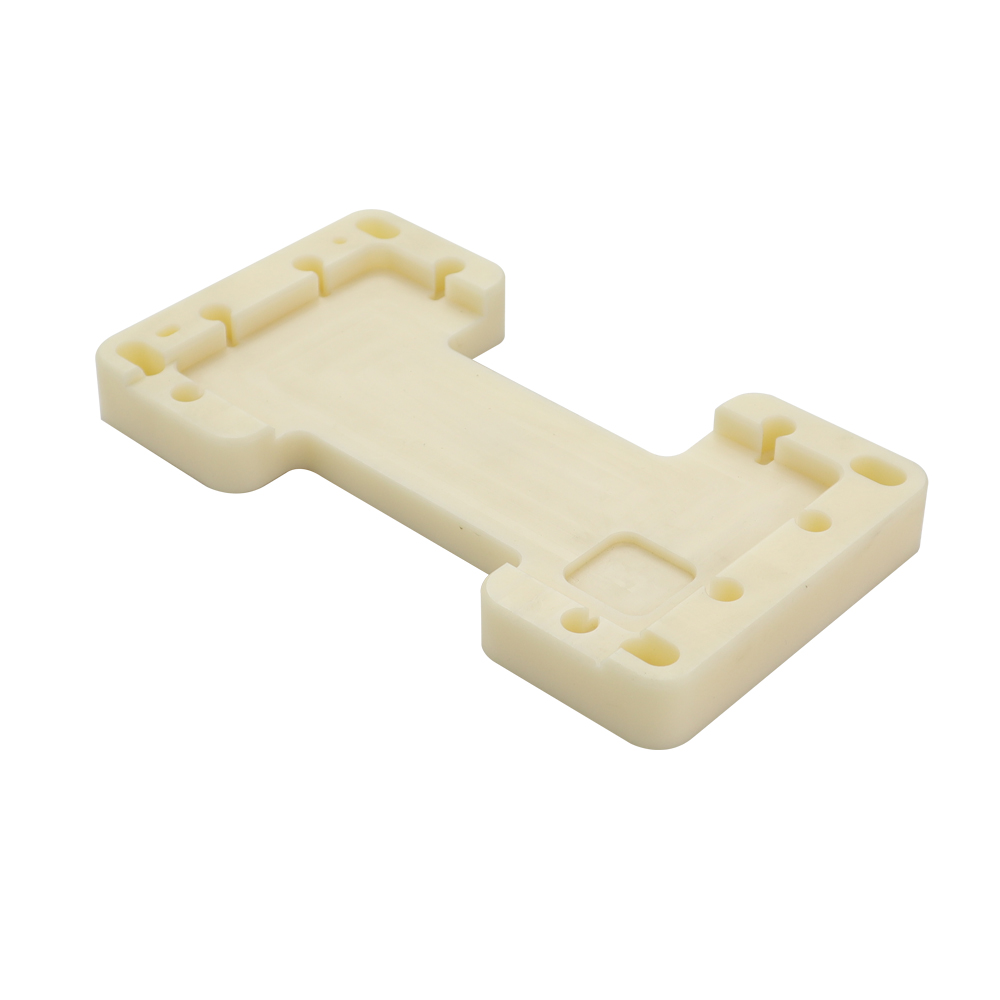

This product is an off-white nylon (PA6/PA66) engineering plastic component featuring a symmetrical I-beam structure. The upper and lower sections have a width of 20mm, while the middle section is 12mm wide, with a total height of 30mm. It includes eight Φ5mm through-holes (with M5 threaded holes) evenly distributed around the perimeter and four guide grooves. The surface is treated with sandblasting (Ra 1.6μm), making it ideal for connection and positioning in mechanical assembly.

Core Parameters

Category	Technical Specifications
Material	Nylon 6/66 (glass fiber reinforced option available)
Dimensions	20mm × 12mm × 30mm (L×W×H)
Hole Tolerance	±0.05mm
Wall Thickness	1.5mm (uniform distribution)
Load Capacity	Static load ≥20kg (ISO 6055 standard)
Temperature Range	-40℃ to 120℃

Design Highlights

I-Beam Reinforced Structure

Upper and lower wide sections enhance bending strength by 40%, while the narrow middle section ensures compact space installation.
Stress-free design minimizes deformation to<0.1mm under cyclic loading.

Modular Installation Interface

Φ5mm through-holes support M4-M6 bolts (compatible with countersunk/flat head screws).
Guide grooves optimize heat dissipation and chip removal efficiency.

Surface Treatment

Sandblasted finish (Ra 1.6μm) improves assembly anti-slip performance.
Optional UV coating (wear resistance increased by 2x).

Application Scenarios

Industry	Typical Use Cases
Industrial Machinery	Robotic arm joint connectors / Transmission shaft brackets
Automotive	Wire harness clamps / Sensor mounting bases
3C Electronics	Modular housing components / Heat sink fixers

Quality Certifications

Certification	Details
Material	RoHS 2.0 (halogen-free), REACH SVHC compliant
Process	ISO 9001:2015, IATF 16949 (automotive)
Environmental	OK Compost INDUSTRIAL certified for industrial composting

Technical Support

Contact: +86 150-1532-6863

Email: cassy@xqdmachining.com

Website: https://xqdmachining.com/index.html

Note:

3D drawing customization available.
Minimum order quantity: 100 pieces for mass production.
Standard lead time: 5 business days.

All technical parameters comply with ISO 9001 quality standards.
