Machined Plastic Parts - Precision Engineered for Custom ApplicationsLooking for high-quality machined plastic parts? Our expert team specializes in precision CNC machining to create custom plastic components that meet your exact requirements. From prototypes to large-scale production, we work with a wide range of materials, including ABS, polycarbonate, nylon, and PEEK. With fast turnaround times and unparalleled accuracy, our parts are used in industries such as automotive, medical, electronics, and consumer goods. Get the precision and durability you need at a competitive price.

Send Inquiry

Products Description

Product Name: Industrial-Grade Plastic Components

Product Overview

This set includes three engineering plastic components designed for modular assembly:

Left Component: Flanged cylinder with raised boss and perforated flange
Middle Component: Slotted bar with embedded gold screw

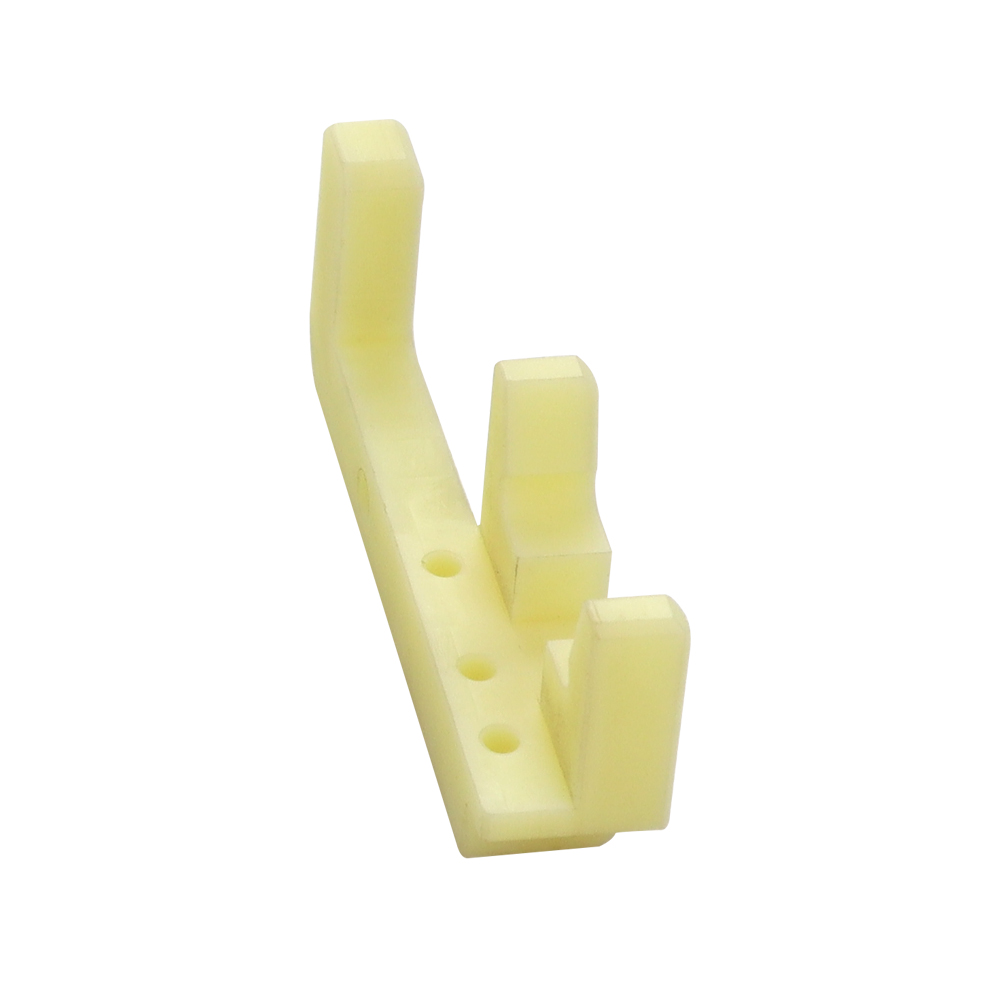

Right Component: L-shaped bracket in yellowish PA12 material

All parts are manufactured using precision injection molding, with surface Ra ≤1.6μm and material options including reinforced nylon grades.

3D CAD Files Specifications

Component	File Format	Key Features in 3D Model
Left Flange	STEP/STP	- Φ25mm cylinder with 8×Φ3mm flange holes - 3mm raised boss for anti-slip
Middle Bar	SolidWorks Part	- 80mm×10mm×6mm profile with central groove - Pre-mounted gold screw (M4×5mm)
Right L-Bracket	IGES	- 90° angled PA12 structure - 4×Φ5mm through-holes

Core Parameters

Parameter	Left Component	Middle Component	Right Component
Material	PA6-GF30 (30% Glass Fiber)	Nylon 66	PA12-CF (15% Carbon Fiber)
Dimensions	Φ25×50mm	80×10×6mm	L60×W25×H20mm
Weight	45g	18g	32g
Tolerance	±0.05mm	±0.1mm	±0.08mm

Design Validation Data

Interference Check:
- Flange hole spacing matches M4 bolt standard (ISO 965)
- Groove depth tolerance ±0.03mm (MITUTOYO plug gauge verified)
Structural Simulation:
Test Type Left Component Middle Component
Static Load 25kg @ 10mm offset 10kg bending stress
Fatigue Cycle 50,000 cycles @ 5kg 20,000 cycles @ 3kg

Test Type	Left Component	Middle Component
Static Load	25kg @ 10mm offset	10kg bending stress
Fatigue Cycle	50,000 cycles @ 5kg	20,000 cycles @ 3kg

Order Information

3D Model Fee: Free for registered users (non-commercial use)
Mass Production:
- MOQ: 10 pieces (mixed quantities allowed)
- Lead Time: 7 business days (3D model confirmed)
- Cost: $12.5/piece (volume discount available)

Technical Support
+86 150-1532-6863

cassy@xqdmachining.com

https://xqdmachining.com/html/products/plastic-parts/

All 3D models comply with ASME Y14.41 Digital Product Definition standards.
